-, 2460-, & 2461-EC Potentiostats And Galvanostats User's Manual Section 4:
Potential Pulse & Square Wave
077110402/November 2016 4-7
To adjust the Pulse Width:
1. From the Pulse Settings screen, select Pulse Width.
2. Enter a value. The Pulse Width can be no more than 99 percent of the Period setting.

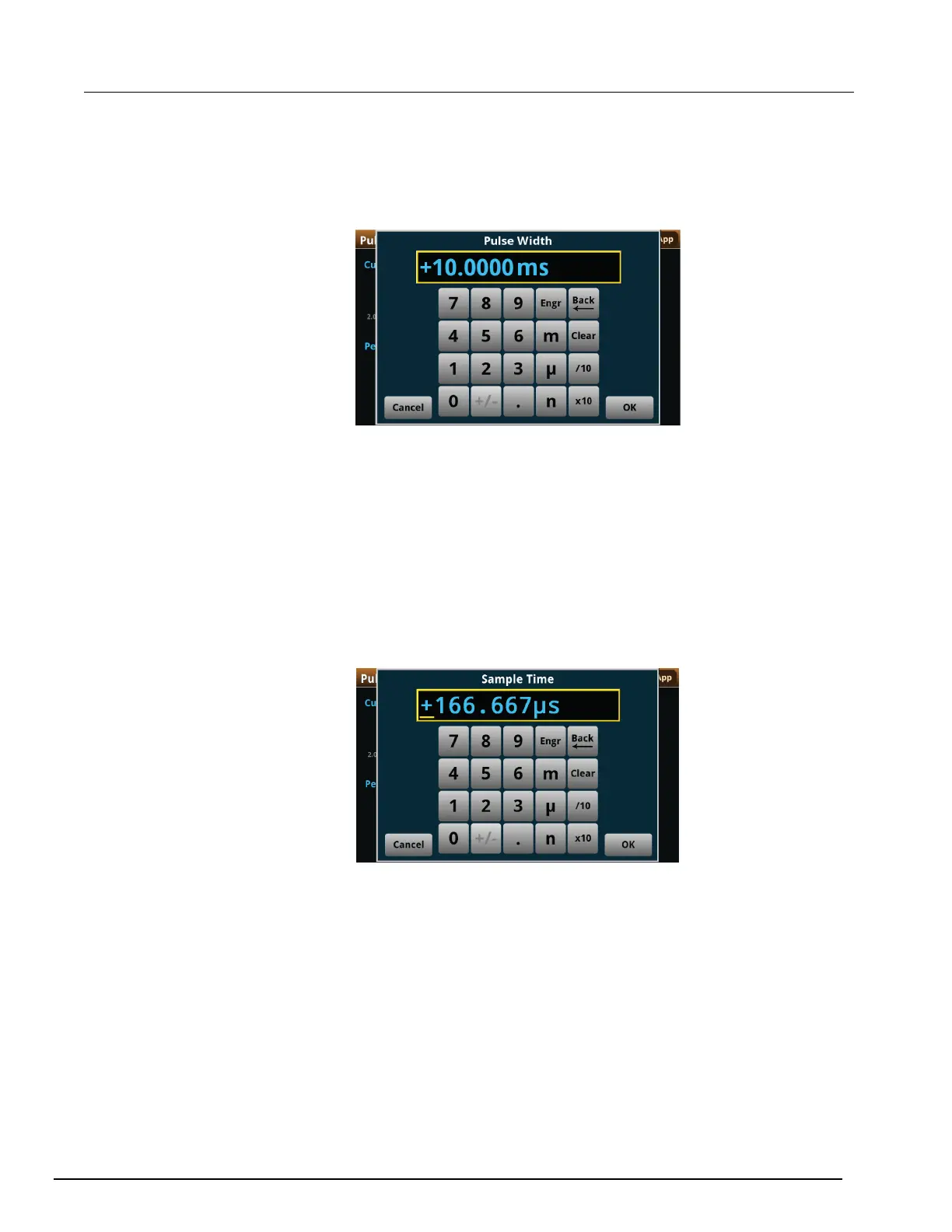

Figure 71: Entering the Pulse Width
3. Select OK.
The Sample Time is the length of time over which the actual measurement is taken. The Sample
Time cannot exceed the Pulse Width minus 1 ms (PW - 1 ms).
The measurement is taken at the end of the pulse. A brief latency period between the end of the
measurement and the end of the pulse allows the analog-to-digital converter in your potentiostat to
complete the measurement.
To adjust the Sample Time:
1. From the Pulse Settings screen, select Sample Time.
2. Enter a value.
Figure 72: Entering a Sample Time
3. Select OK.
