Models 2450
-EC, 2460-EC, and 2461-EC Potentiostats And Galvanostats User's Manual Section 2: Cyclic Voltamme
try
077110402/November 2016 2-9
To set the Sampling Rate:
1. From the Measure Settings screen, select Sampling Rate.
2. Enter a value.
3. Select OK.
Now, you will select the Current Range to measure the current from the scan. Choose the range
based upon the largest current magnitude you expect during the test.
To select the current measurement range:
1. From the Measure Settings screen, select Current Range.

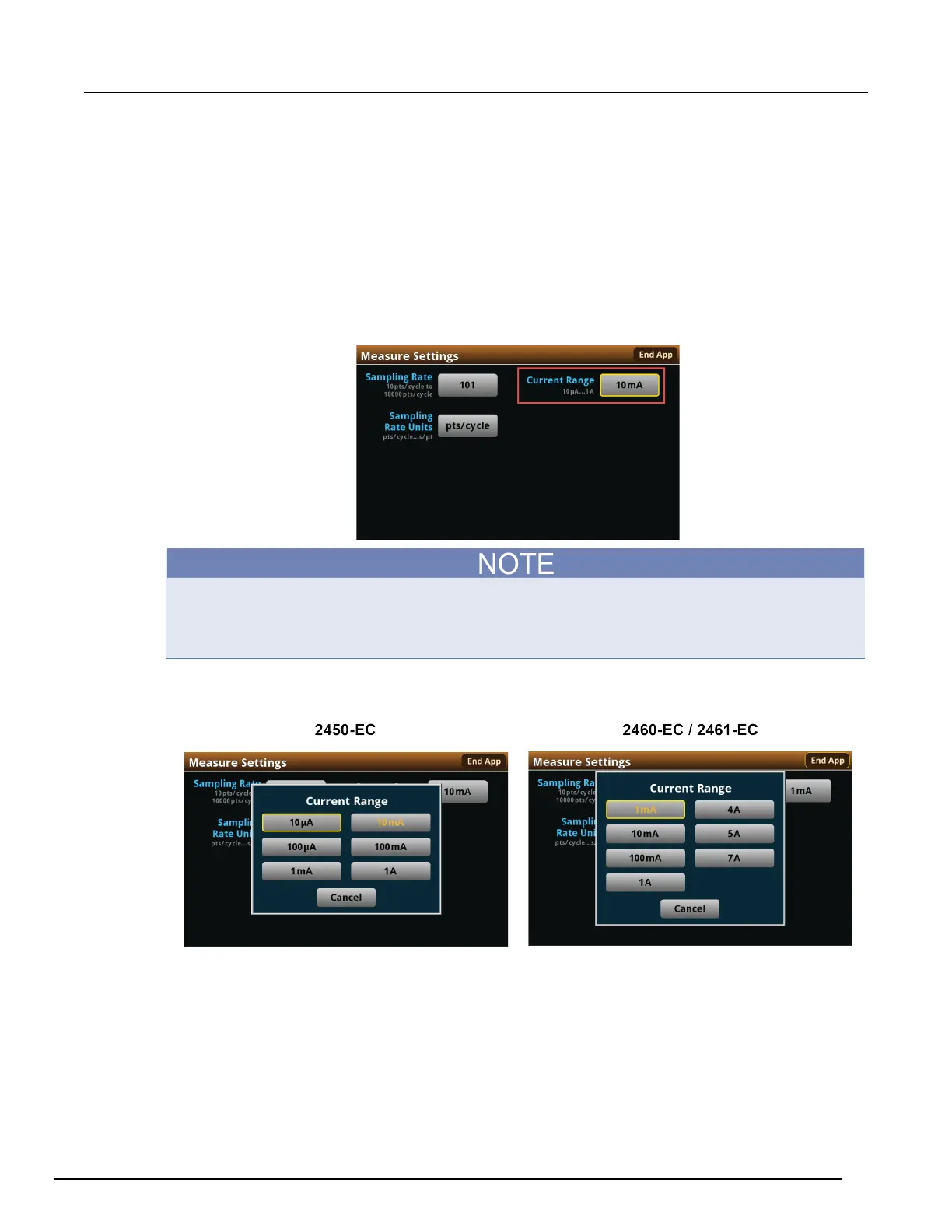

Figure 25: Measure Settings menu, selecting the Current Range
When the test runs, your potentiostat will limit the magnitude of the maximum current that can flow in
the test circuit to 100 percent of the selected current range. This could affect your experiment results.
If your expected current is near the full scale of a range, select the next highest current range to
minimize the influence of your potentiostat on the test
2. Choose a value. Note that the choices are different depending on your potentiostat model.
Figure 26: Selecting the Current Range
