-EC, 2460-EC, and 2461-EC Potentiostats And Galvanostats User's Manual Section 6:
Chronoamperometry
077110402/November 2016 6-3
3. Select the preloaded Chronoamperometry test script (potentiostats and galvanostats only) or
connect the supplied USB drive to your SMU instrument to locate the included
Chronoamperometry test. If you connect the USB drive, scripts on the drive are displayed with
usb1/ before the script file name.

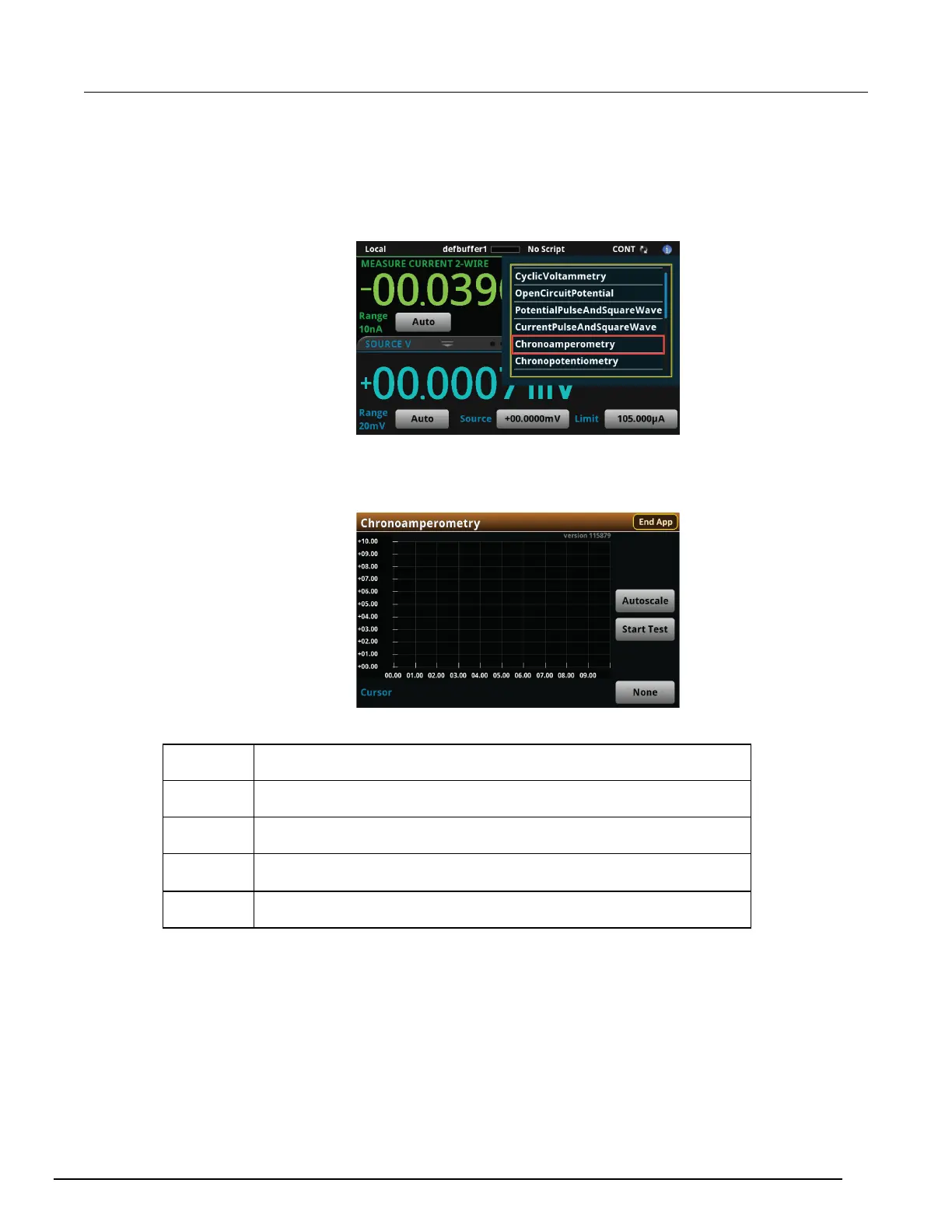

Figure 106: Selecting the Chronoamperometry test application
4. Select Chronoamperometry. The test application begins to run immediately and the following
screen is displayed.
Figure 107: Chronoamperometry test home screen
The test home screen controls include:
End App
Select this control to immediately stop the test and return to normal SMU
operation.
Autoscale
Select this control to define the graph based upon the plotted data. This is
useful for constraining all of the data to the screen's viewing size.
Start Test
Select this control to immediately begin the test. This option becomes Stop
Test when the test runs.
Save Data
Select this control to save the test data to a .csv file on a flash drive. This
option is only visible after the test runs.
Cursor
Select this control to cycle through the available cursor placements: None,
Vertical, Horizontal, and Both.
