Section D – Tester Installation
CD14 Tester & CD AutoPlus Autosampler User Guide—75-108-800 Rev. B—31 May 2021 32 of 130
EAR99 technology subject to restrictions on cover page.

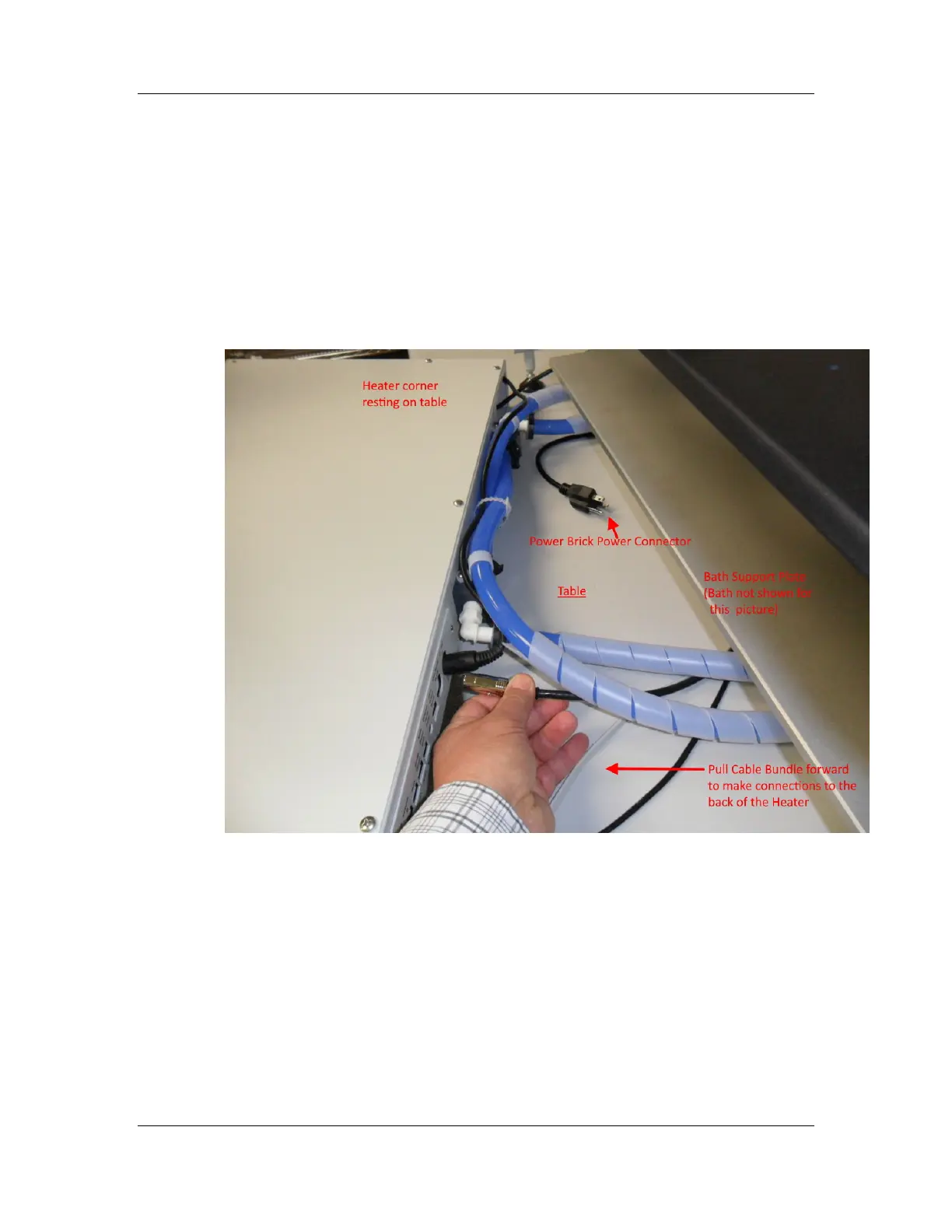

3. Holding the heater in front of the unit, guide the blue
water circulation tubes and power brick power cord
under the bath support plate, and on top of the cable
bundle that comes from the back of the unit, and
rest the back end of the heater on the bench.
4. While still supporting the front of the heater, make
the cable connections from the cable bundle to the
rear of the heater.
