Tenda V300 User Manual

92

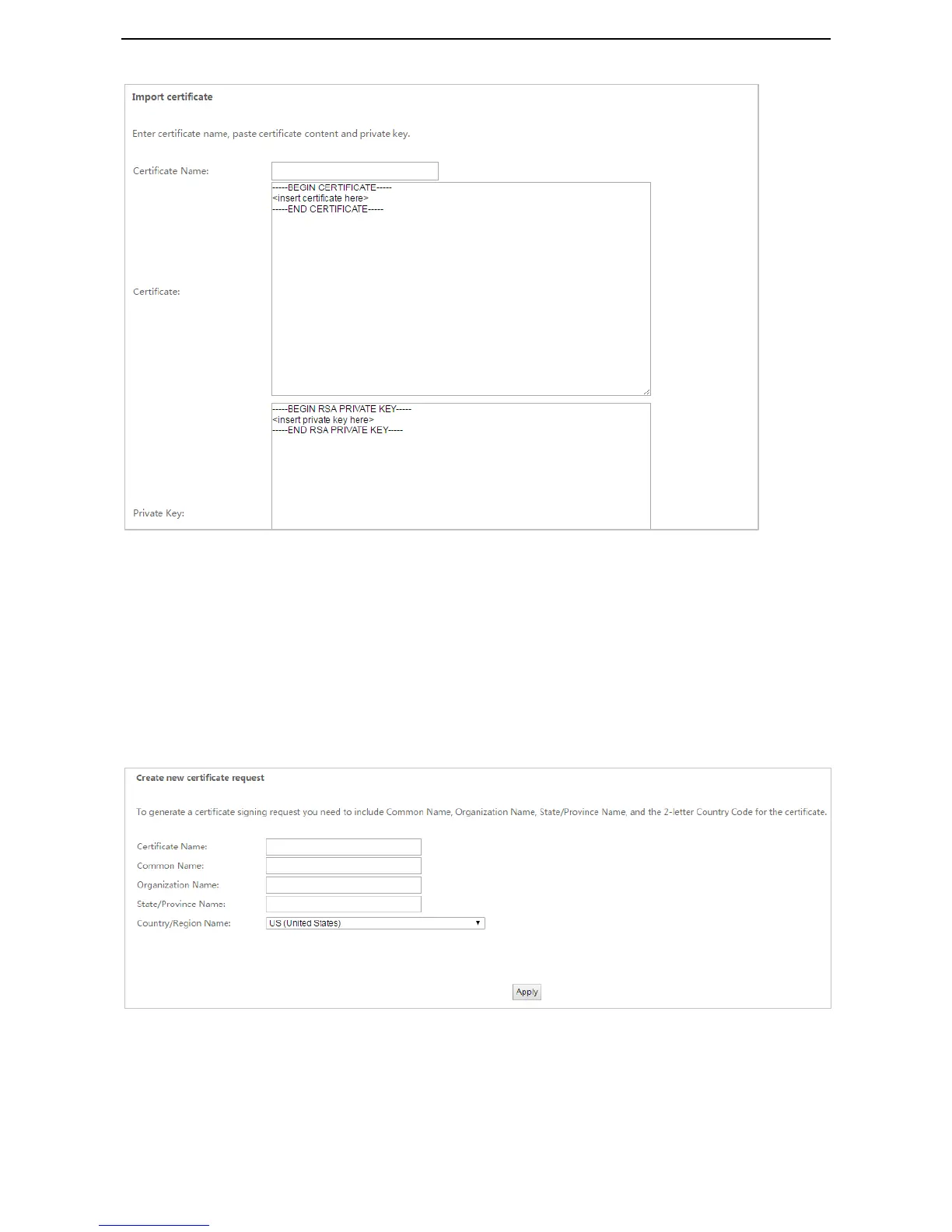

Step 2 Certificate Name: Enter the name of applied certificate.
Step 3 Certificate: Open the certified certificate with notepad (.exe), and copy the content to the box.
Step 4 Private Key: Copy the private key information which is generated when you apply the certificate to the
box.
Step 5 Click Apply.
--End
To create a new certificate, perform the following procedure:
Step 1 Click Create Certificate Request.
Step 2 Certificate Name: Specify a name for the certificate, such as mycertificate.
Step 3 Common Name: Enter the website domain name, company name or name of applier, such as
Tendacn.com, Tenda or Lucy.
Step 4 Organization Name: Enter the name of an organization/company, such as Tenda.
Step 5 State/Province Name: Enter the located state.

Tenda V300 Specifications

General

DSL WAN	-
Ethernet WAN	Yes
SIM card slot	No
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Channels quantity	13 channels
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Cables included	LAN (RJ-45), Phone (RJ-11)
Certification	CE, FCC, RoHS
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Security algorithms	64-bit WEP, 128-bit WEP, SNMP, SSID, WDS, WPA-PSK, WPA2-PSK, WPS
Supported network protocols	G.994, ANSI T1.413 2, ITU-T G.992.1 (G.dmt), ITU-T G.992.2 (G.lite), ITU-T G.992.3 (G.dmt.bis) Annex A/L/M, ITU-T G.992.5 Annex A, G.993.2 (VDSL2), G.993.5, G.993.2 Amd 7 (ToD), G.998.4 (G.inp), ATM, PTM
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11n)	20 dBmW
RJ-11 ports quantity	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	4
Output current	1 A
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Product type	Tabletop router
Product color	White
LED indicators	DSL, LAN, Power, USB, WAN, WLAN, WPS
Antenna gain level (max)	5 dBi

Weight and Dimensions

Depth	105.2 mm
Width	157.8 mm
Height	29.4 mm
