Tenda V300 User Manual

86
4.17 Interface Grouping
If you create multiple WAN services (PPPoE and other WAN service types), and want a LAN or WLAN to use a
WAN service exclusively, you can use this function to create mapping groups with appropriate LAN and WAN
interfaces. Each group performs as an independent network.

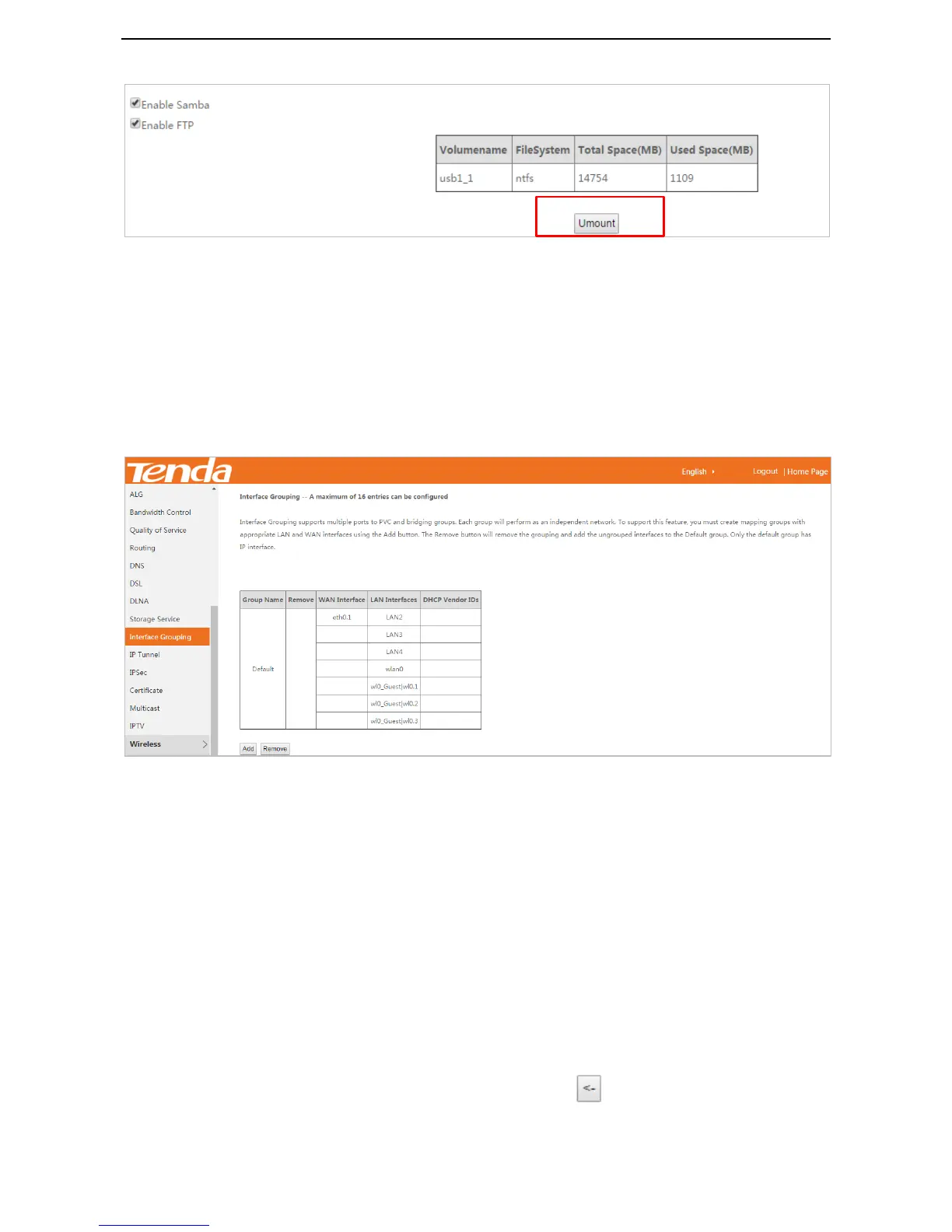

Choose Advanced > Advanced Setup > Interface Grouping to enter the configuration page.
To create a mapping group, perform the following procedure:
Assume that:
 The modem router accesses the internet through port 1 using an Ethernet cable.
 You create two WAN services: the WAN service type for one is IP over Ethernet and Obtain an IP address
automatically, and the other is bridging.
 You want all wireless devices to use IP over Ethernet WAN service, and all wired device use bridging WAN
service.
Step 1 Click Add.
Step 2 Specify a group name.
Step 3 Select a WAN service you create, ipoe_LAN1/eth0.1 here.
Step 4 Select an interface in Available LAN Interfaces list and click button to move it to Grouped ALN
Interfaces list. Move all wireless interfaces to Grouped ALN Interfaces list here.

Tenda V300 Specifications

General

DSL WAN	-
Ethernet WAN	Yes
SIM card slot	No
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Channels quantity	13 channels
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Cables included	LAN (RJ-45), Phone (RJ-11)
Certification	CE, FCC, RoHS
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Security algorithms	64-bit WEP, 128-bit WEP, SNMP, SSID, WDS, WPA-PSK, WPA2-PSK, WPS
Supported network protocols	G.994, ANSI T1.413 2, ITU-T G.992.1 (G.dmt), ITU-T G.992.2 (G.lite), ITU-T G.992.3 (G.dmt.bis) Annex A/L/M, ITU-T G.992.5 Annex A, G.993.2 (VDSL2), G.993.5, G.993.2 Amd 7 (ToD), G.998.4 (G.inp), ATM, PTM
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11n)	20 dBmW
RJ-11 ports quantity	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	4
Output current	1 A
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Product type	Tabletop router
Product color	White
LED indicators	DSL, LAN, Power, USB, WAN, WLAN, WPS
Antenna gain level (max)	5 dBi

Weight and Dimensions

Depth	105.2 mm
Width	157.8 mm
Height	29.4 mm
