Tenda V300 User Manual

70
 Mark 802.1p priority: Tag an 802.1p priority mark for the data stream.
 Set Rate Limit: Specify the maximum transmission speed of the queue.
Step 7 Click Apply/Save.
--End
4.12 Routing
4.12.1 Defauly Gateway
Default gateway interface list can have multiple WAN interfaces served as system default gateways but only one
will be used according to the priority with the first being the highest and the last one the lowest priority if the
WAN interface is connected. Priority order can be changed by removing all and adding them back in again.

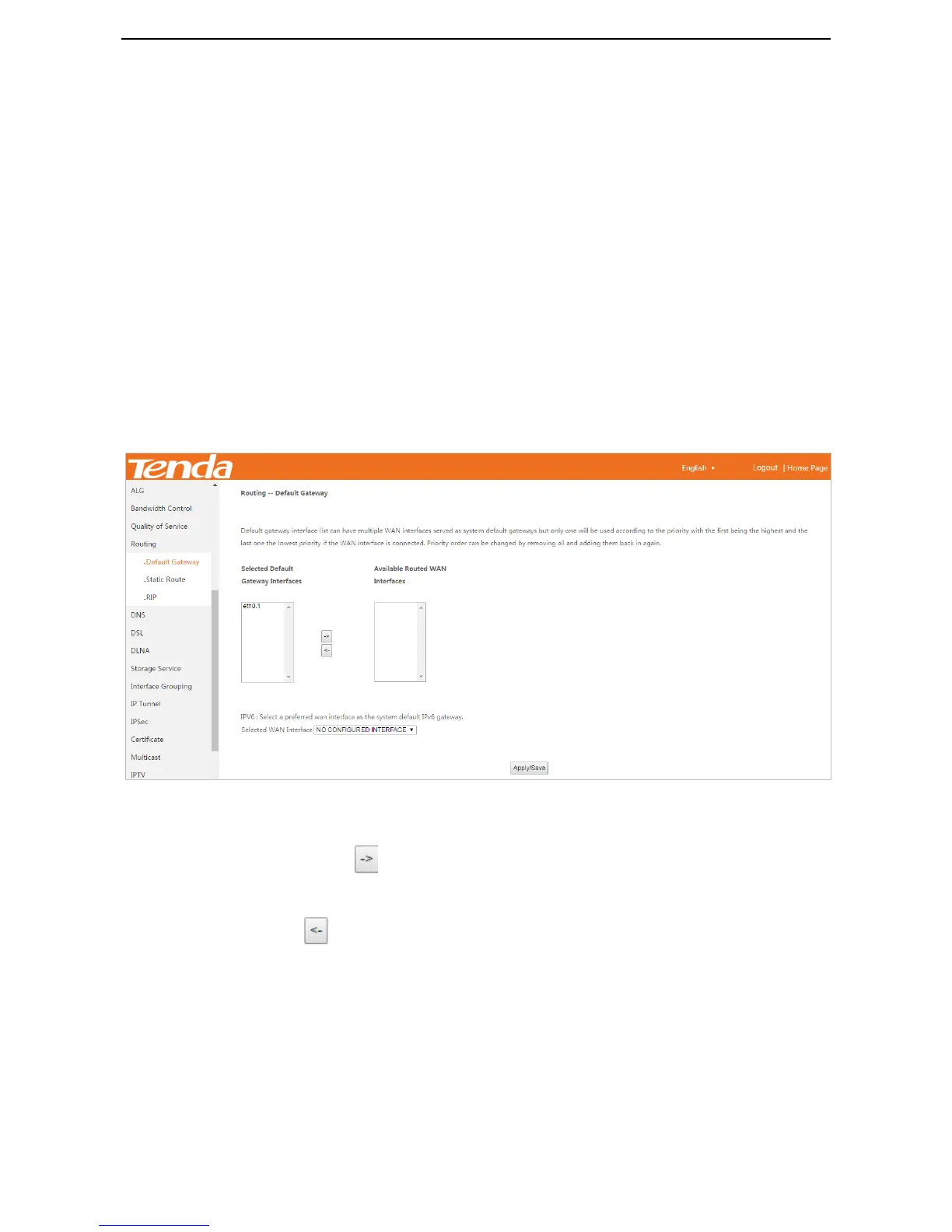

Choose Advanced > Advanced Setup > Routing > Defauly Gateway to enter the configuration page.
Selected Default Gateway Interfaces: It specifies the current default IPv4 gateway interface in effect. If there are
many interfaces in the list, the first one always takes effect.
Select a WAN interface and click the button to move it to the Available Routed WAN Interfaces box.
Available Routed WAN Interfaces: It Specifies the current alternative default IPv4 gateway interface. Select a
WAN interface and click the button to add it to the Selected Default Gateway Interfaces box.
IPV6 Selected WAN Interface: Select the current IPv6 gateway interface in effect from the drop-down list.
4.12.2 Static Route
Static Route is performed to select the best route for delivering data from a source address to a destination
address. A static route is a manually configured route, which is simple, efficient, and reliable. Appropriate static
routes help reduce the number of route selection problems and reduce route selection load, increasing the
packet forwarding speed.

Tenda V300 Specifications

General

DSL WAN	-
Ethernet WAN	Yes
SIM card slot	No
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Channels quantity	13 channels
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Cables included	LAN (RJ-45), Phone (RJ-11)
Certification	CE, FCC, RoHS
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Security algorithms	64-bit WEP, 128-bit WEP, SNMP, SSID, WDS, WPA-PSK, WPA2-PSK, WPS
Supported network protocols	G.994, ANSI T1.413 2, ITU-T G.992.1 (G.dmt), ITU-T G.992.2 (G.lite), ITU-T G.992.3 (G.dmt.bis) Annex A/L/M, ITU-T G.992.5 Annex A, G.993.2 (VDSL2), G.993.5, G.993.2 Amd 7 (ToD), G.998.4 (G.inp), ATM, PTM
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11n)	20 dBmW
RJ-11 ports quantity	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	4
Output current	1 A
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Product type	Tabletop router
Product color	White
LED indicators	DSL, LAN, Power, USB, WAN, WLAN, WPS
Antenna gain level (max)	5 dBi

Weight and Dimensions

Depth	105.2 mm
Width	157.8 mm
Height	29.4 mm
