Tenda V300 User Manual

71

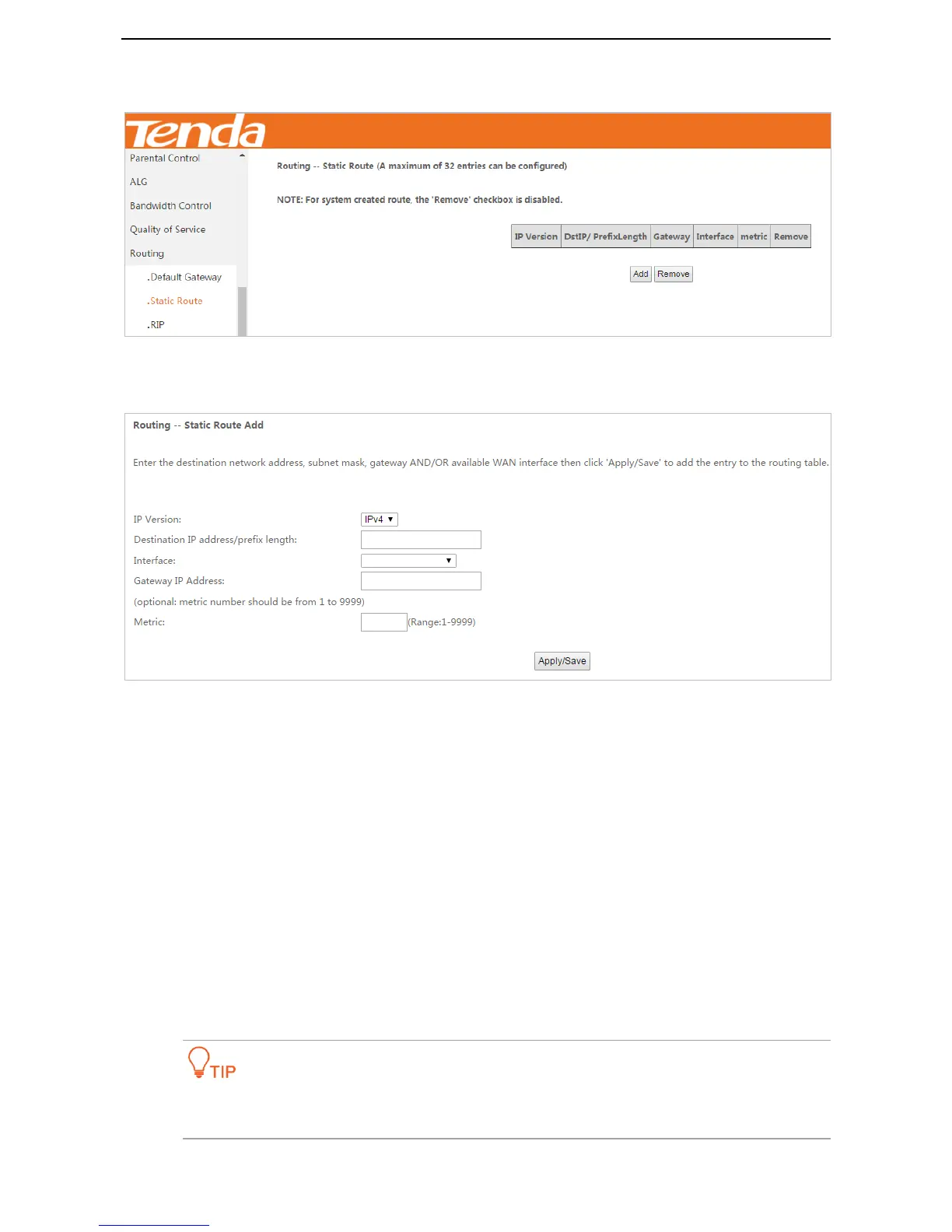

Choose Advanced > Advanced Setup > Routing > Static Route to enter the configuration page.
To add a static route, perform the following procedure:
Step 1 Click Add.
Step 2 IP Version: Specify an IP protocol version for the static route: IPv4 or IPv6.
Step 3 Destination IP address/prefix length: Set a destination IP address.
 Destination Host is a specified host whose prefix length is 32. For example, the host 1.2.3.4 indicates
“1.2.3.4/32”.
 Destination Network is a specified network whose IP address is the network address of the destination host.
For example, the network 2.2.3.3/255.255.0.0 indicates “2.2.0.0/16” which represents all hosts whose IP
address start with “2.2”.
Step 4 Interface: Specify an outgoing interface for the data.
Step 5 Gateway IP Address: set the gateway IP address to the IP address of the next-hop router.
Step 6 (Optional) Metric: Specify a metric value for the static route. Lower number leads to higher priority.
--End
 Destination IP address cannot be in the same IP network segment as that of WAN or LAN of the
modem router.

Tenda V300 Specifications

General

DSL WAN	-
Ethernet WAN	Yes
SIM card slot	No
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Channels quantity	13 channels
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Cables included	LAN (RJ-45), Phone (RJ-11)
Certification	CE, FCC, RoHS
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Security algorithms	64-bit WEP, 128-bit WEP, SNMP, SSID, WDS, WPA-PSK, WPA2-PSK, WPS
Supported network protocols	G.994, ANSI T1.413 2, ITU-T G.992.1 (G.dmt), ITU-T G.992.2 (G.lite), ITU-T G.992.3 (G.dmt.bis) Annex A/L/M, ITU-T G.992.5 Annex A, G.993.2 (VDSL2), G.993.5, G.993.2 Amd 7 (ToD), G.998.4 (G.inp), ATM, PTM
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11n)	20 dBmW
RJ-11 ports quantity	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	4
Output current	1 A
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Product type	Tabletop router
Product color	White
LED indicators	DSL, LAN, Power, USB, WAN, WLAN, WPS
Antenna gain level (max)	5 dBi

Weight and Dimensions

Depth	105.2 mm
Width	157.8 mm
Height	29.4 mm
