Service and Repair Manual June 2021
Repair Procedures
92 GS
™
-84 • GS
™
-90 Part No. 1306587GT
7-8

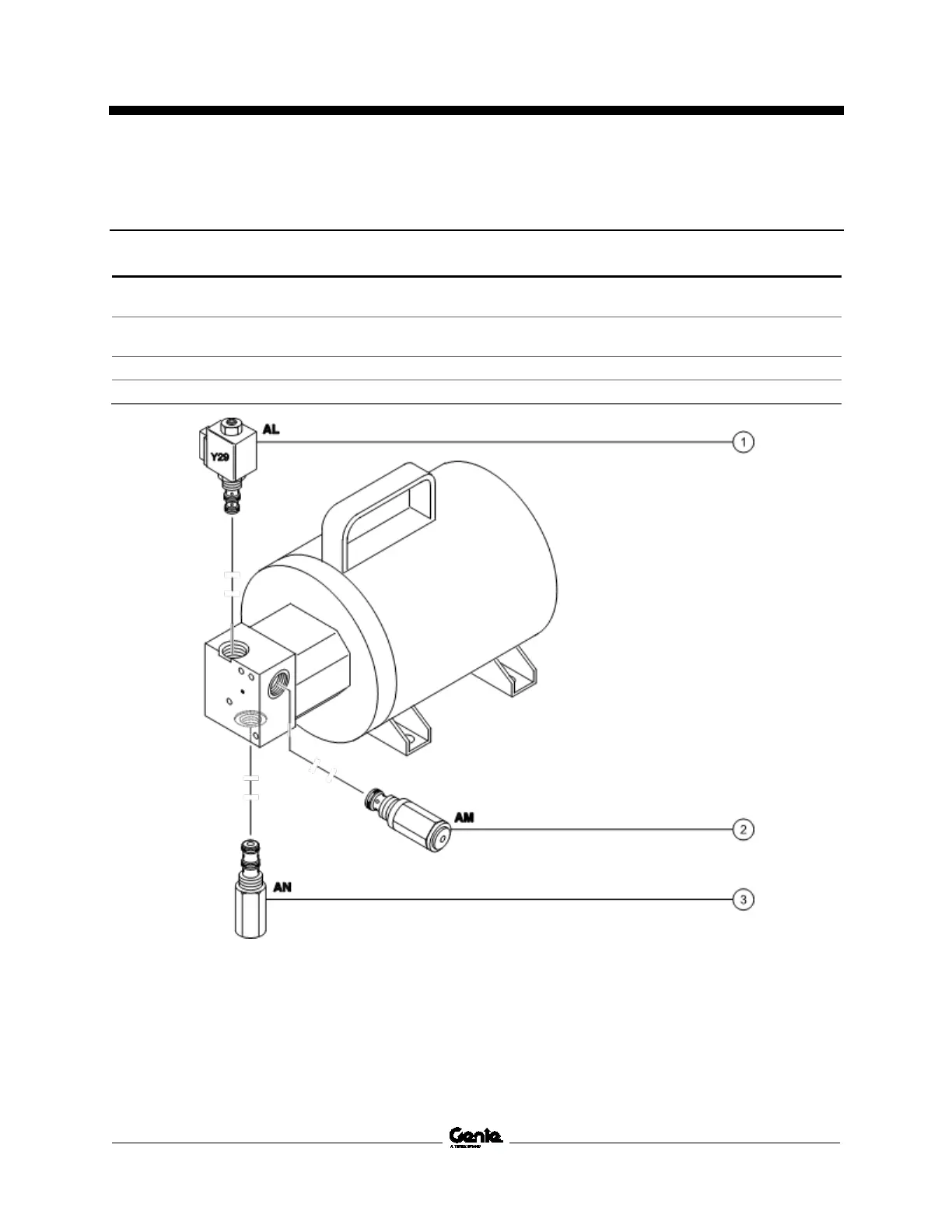

Generator Manifold Components
The generator manifold is located below the ground controls.
Index
No.
Description
Schematic
Item
Function
Torque
1
Solenoid operated
2 position, 3 way
directional valve
AL
Generator on/off
25 ft-
lbs / 34 Nm
2
Flow regulator valve, 4.
3 gpm / 16.3 L/min AM
Generator sp
eed 20 ft-
lbs / 27 Nm
3
Relief valve, 300
0 psi / 206.8 bar AN
Generator circuit
20 ft-
lbs / 27 Nm
Note: 'alpha' callouts refer to corresponding notes on the hydraulic schematic.
