How to Adjust the Pl atform Lower Speed
How to Adjust the Platform Lower
Speed
1 Pull out the red Emergency stop button to the
on position at the platform controls.
2 Push in the ground controls red Emergency
Stop button to the off position.
3 Turn the key switch to ground controls.
4 Press and hold both the blue platform up and
yellow platform down buttons. Pull out the red
Emergency Stop button to the on position at
the ground controls.
Result: TUNE SPEEDS is showing in the
diagnostic display window. The ECM is now in
programming mode.
5 Press the lift function enable button.
6 Use the yellow platform down arrow to scroll
to descent speed.
Result: MAX DESCENT SPEED is showing in
the diagnostic display window.

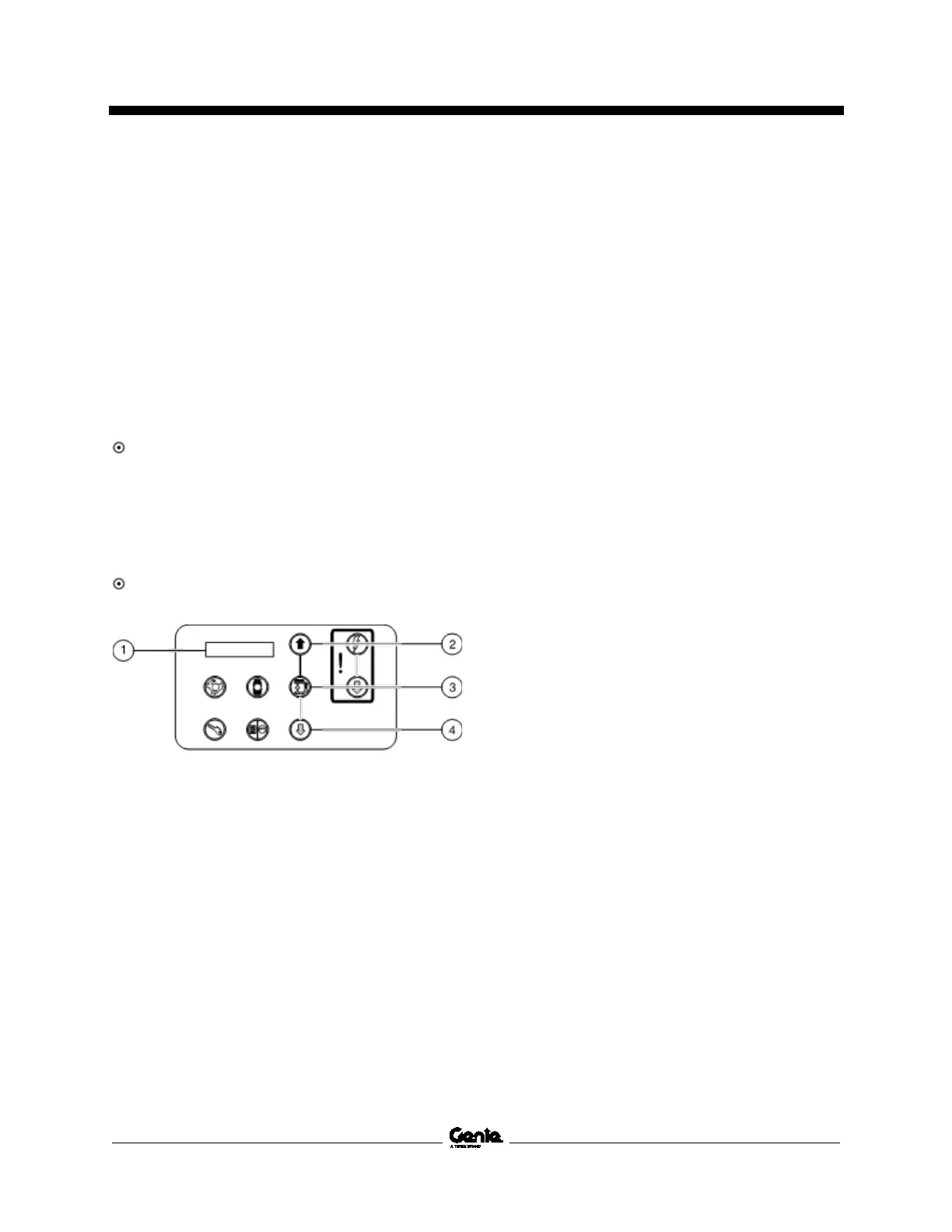

1 diagnostic display
2 blue platform up button
3 lift function enable button
4 yellow platform down button
7 Press the lift function enable button.
8 Press the yellow platform down button to
decrease the platform descent speed or press
the blue platform up button to increase the
platform descent speed. Refer to
Specifications, Performance Specifications.
Note: The performance achieved should always be
within specifications.
9 Press the lift function enable button.
10 Push in the ground controls red Emergency
Stop button to the off position.
11 Check the lower speed of the machine. Refer
to Specifications, Performance Specifications.
