Service and Repair Manual June 2021

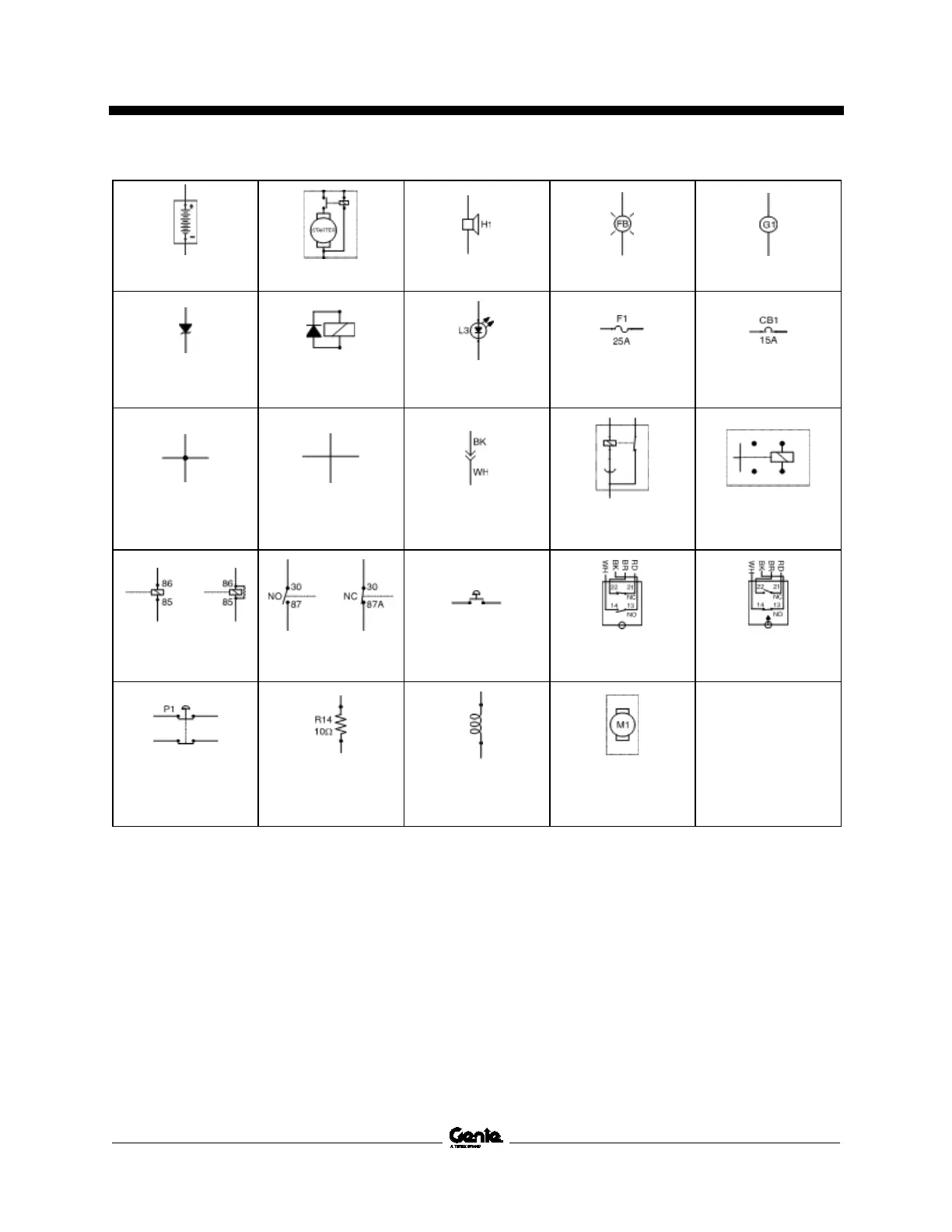

Electrical Symbols Legend
158 GS
™
-84 • GS
™
-90 Part No. 1306587GT
Battery Motor Horn or alarm Flashing beacon Gauge
Diode Coil with suppression LED Fuse with amperage
Circuit breaker with
amperage
Connection - no
terminal
Circuits crossing no
connection
Quick disconnect
terminal
Level sensor
without outriggers
Power relay
Coil solenoid or relay
Contact solenoid or
relay
Button
normally open
Limit switch
not held
Limit switch
held
Red emergency stop
button
normally closed
Resistor with ohm
value
Starting aid or glow
plug
Electric motor
