June 2021 Service and Repair Manual
Scissor Components
Part No. 1306587GT GS
â„¢
-84 • GS
â„¢
-90 49
3-6
Height Angle Sensor
How to Replace the Hei ght Angle Sensor
How to Replace the Height Angle
Sensor
1 Start the engine from the ground controls and
raise the platform approximately 18 feet /
5.5 m from the ground.
2 Release the safety arm latch, lift the safety
arm and rotate to a vertical position. Lock the
safety arm in position.
Note: Verify the safety arm is locked in the vertical
position.
3 Lower the platform onto the safety arm. Turn
the machine off.
Crushing haz
ard. Keep hands
clear of the safety arm when
lowering the platform.
Component damage haza
rd.
The link set cross tube can be
damaged if excessive force is
applied. Do not continue to
lower the platform after the
safety arm makes contact with
the cross tu
be.
4 Disconnect the height angle sensor from the
main harness.
5 Remove the retaining fasteners securing the
angle sensor mount to the sensor housing.
Remove the sensor assembly and set aside.

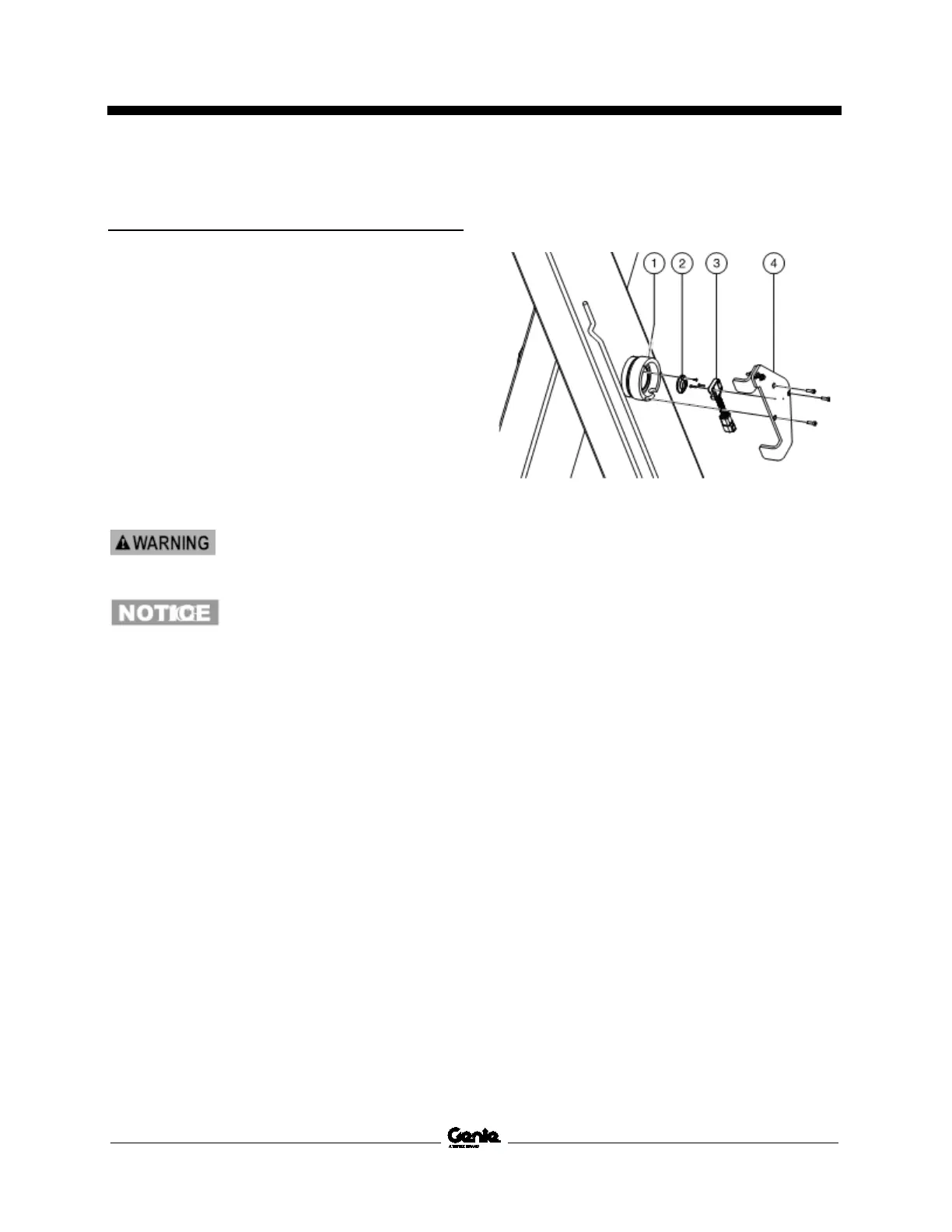

1 angle sensor mount
2 angle sensor
3 sensor magnet
4 sensor housing
6 Remove and replace the sensor magnet.
Note: Apply removable thread locker to the
retaining fasteners.
7 Remove and replace the angle sensor
attached to the angle sensor mount.
Note: The printed side of the sensor must face
away from the angle sensor mount.
Note: Apply removable thread locker to the
retaining fasteners.
8 Install the angle sensor assembly onto the
machine. Connect the harness.
9 Raise the platform and rotate the safety arm
to the stowed position.
10 Lower the platform to the stowed position.
11 Calibrate the platform overload system. Refer
to Repair Procedure How to Calibrate the
Platform Overload System.
