Fault Code Display - Deutz Models
Part No. 1306587GT GS
™
-84 • GS
™
-90 127

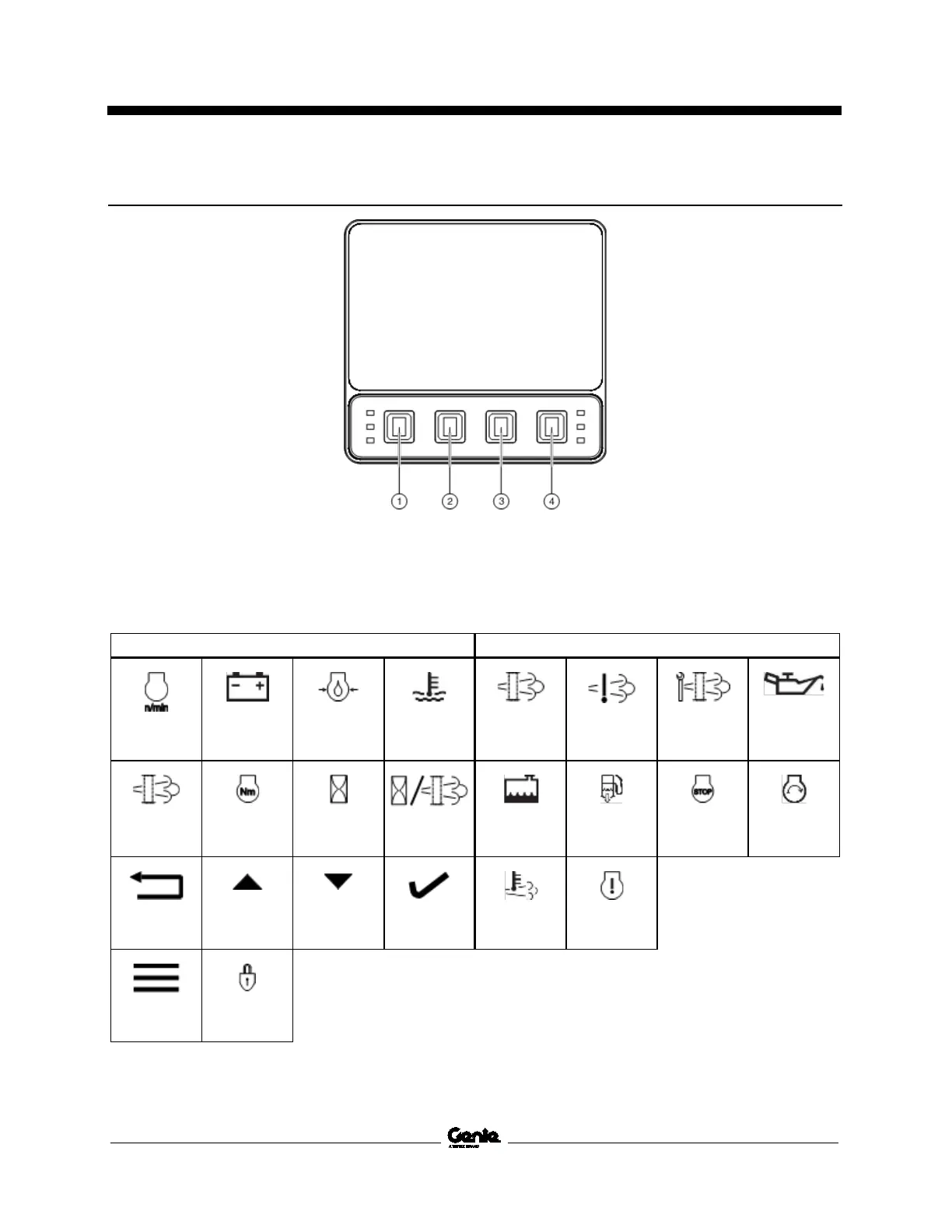

Soft Key Functions and Icons - Deutz TD 2.2 L3 Models
Soft Key Functions and Icons - Deutz TD 2.2 L3 Models
1 Exit / Back one screen
2 Scroll up • Increase Time / Date • Decrease brightness
3 Scroll down • Decrease Time / Date • Increase brightness
4 Main menu • Select
Main Screen Icons
Engine Warning Icons
Engine RPM Voltage Oil pressure Coolant
temperature
Regen
required
DPF service
required
Replace DPF Change oil
Soot load (%) Engine torque Hour meter
Time since
last regen
Low coolant
Fuel/Water
separator
Engine stop Engine start
Exit / Back
one screen
Scroll up Scroll down Select Standstill
regen active
Engine failure
Main menu
Pin code
required
