Service and Repair Manual June 2021

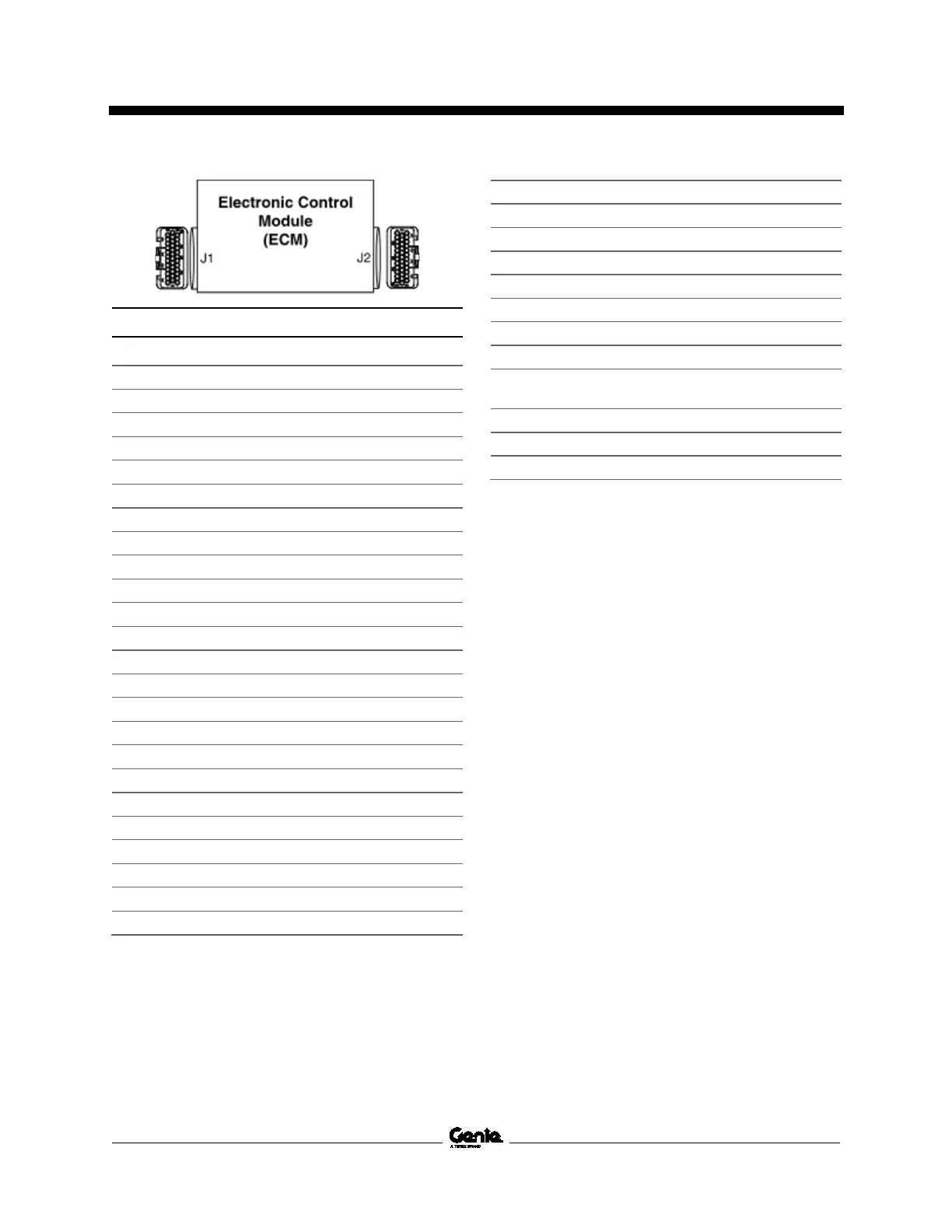

Electronic Control Module Pin-Out Legend
164 GS
â„¢
-84 • GS
â„¢
-90 Part No. 1306587GT
J1 Connector
Pin
Description
A1
Right turn coil Y3
(output)
A2
Left turn coil Y4 (output
)
A3
Up coil Y8 (output)
A4
Brake coil Y2 (output)
A5
Plug
A6
Plug
A7
Plug
A8
Plug
A9
Down coil Y7 (output)
A10
2
speed coil Y1 (output)
A11
Plug
A12
Plug
B1
Generator coil Y29 (output)
B2
Reverse
coil/EDC Y51 (output)
B3
Forward coil/EDC Y51
(output)
B4
Proportional coil (+) Y9 (output)
B5
Right front outrigger coil Y36 (output)
B6
Outrigger extend coil Y40 (output)
B7
Outrigger retract coil Y39 (output)
B8
Plug
B9
Left front
outrigger coil Y35 (output)
B10
Left rear outrigger coil Y33
(output)
B11
Right rear outrigger coil Y34 (output)
B12
LPG select (output)
C1
Plug
C2
Platform overload (input)
C3
Right front outrigger limit switch LS13 (input)
C4
Right rear
outrigger limit switch LS15 (input)
C5
Left front outrigger limit s
witch LS12 (input)
C6
Left rear outrigger limit switch LS14 (input)
C7
Alternator (input)
C8
Engine oil pressure SW2 (input)
C9
Engine water temp SW1 OR oil temp SW3
(input)
C10
Plug
C11
Plug
C12
Plug
