June 2021 Service and Repair Manual
Ground Controls
Part No. 1306587GT GS
â„¢
-84 • GS
â„¢
-90 69
5-4
Level Sensor - Models without
Outriggers
The Electronic Control Module (ECM) is
programmed to deactivate the lift and drive
functions and activate an alarm when a signal is
received from the level sensor.
The tilt alarm sounds when the incline of the
chassis exceeds 2° to the side, or 3° to the front or
rear.
How to Install and Cal ibrate the Level Sens or - Models without Outrigger s
How to Install and Calibrate the
Level Sensor - Models without
Outriggers
-
over hazard. Failure to install
or ca
librate the level sensor as
instructed will compromise
machine stability and cause
the
machine to tip over, resulting in
death or serious injury. Do not
install or calibrate the level
sensor other than specified in
this procedure.
Note: Perform this procedure with the machine on
a firm, level surface and the platform in the stowed
position. Use a digital level to confirm.
1 Remove the platform controls from the
platform.
If you are not installing a new level sensor,
proceed to step 9.
2 Push in the platform red Emergency Stop
button to the off position.
3 Remove the ground control panel retaining
fasteners and open the panel.
4 Locate the level sensor behind the ground
control panel.
5 Tag and disconnect the wire harness from the
level sensor.
6 Remove the level sensor retaining fasteners
and remove the level sensor from the
machine.
7 Install the new level sensor onto the machine
with the "Y" on the level sensor base closest
to the steer end of the machine. Install and
tighten the level sensor retaining fasteners.
-over hazard. The tilt level
sensor must be installed with
the "Y" on the level s
ensor
base closest to the steer end of
the machine. Failure to install
the tilt level sensor as
instructed could result in the
machine tipping over causing
death or seri
ous injury.

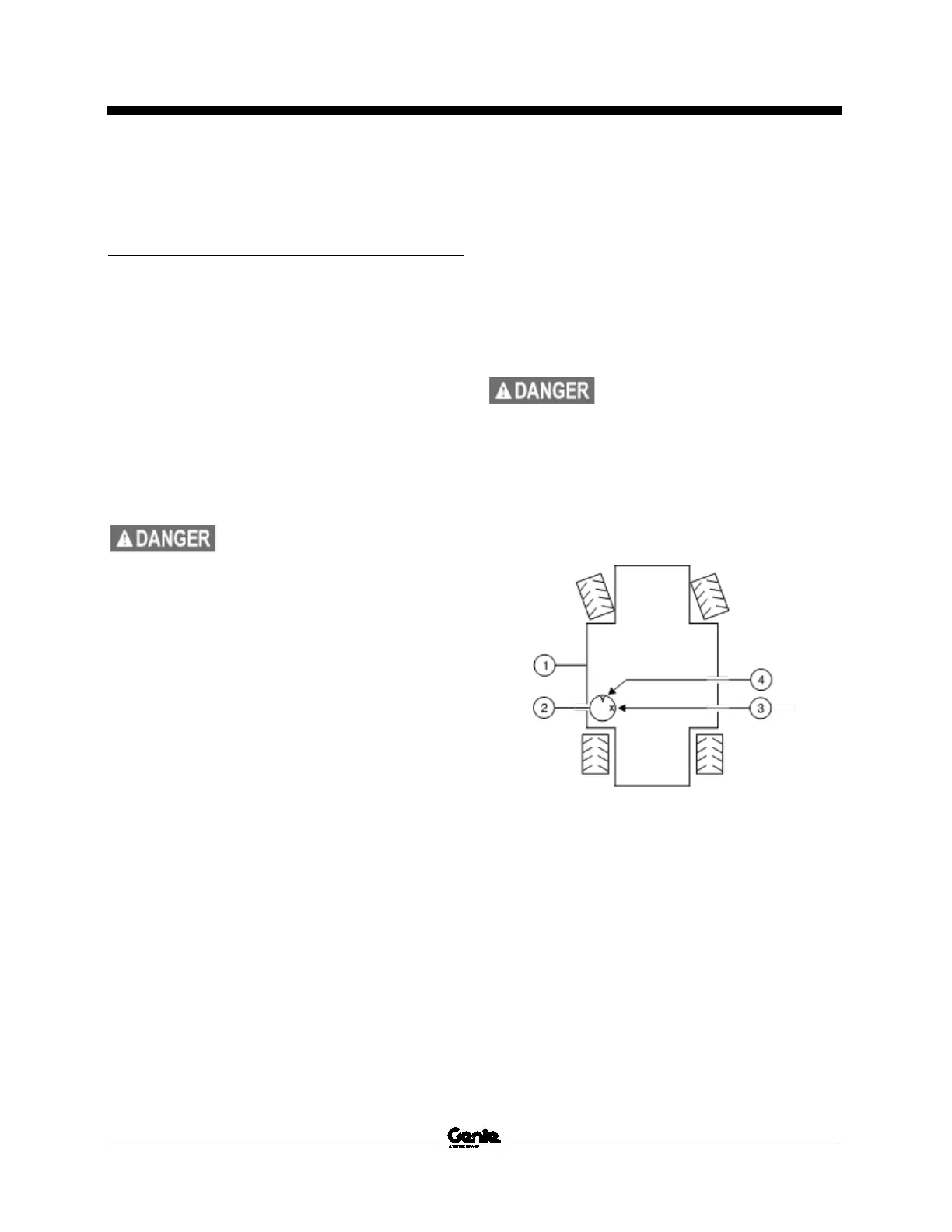

Level sensor - models without outriggers
1 chassis
2 level sensor
3 "X" indicator
4 "Y" indicator
8 Connect the wire harness to the level sensor.
9 Turn the key switch to platform controls and
pull out the red Emergency Stop button to the
on position at both ground and platform
controls.
To Next Page
