June 2021 Service and Repair Manual

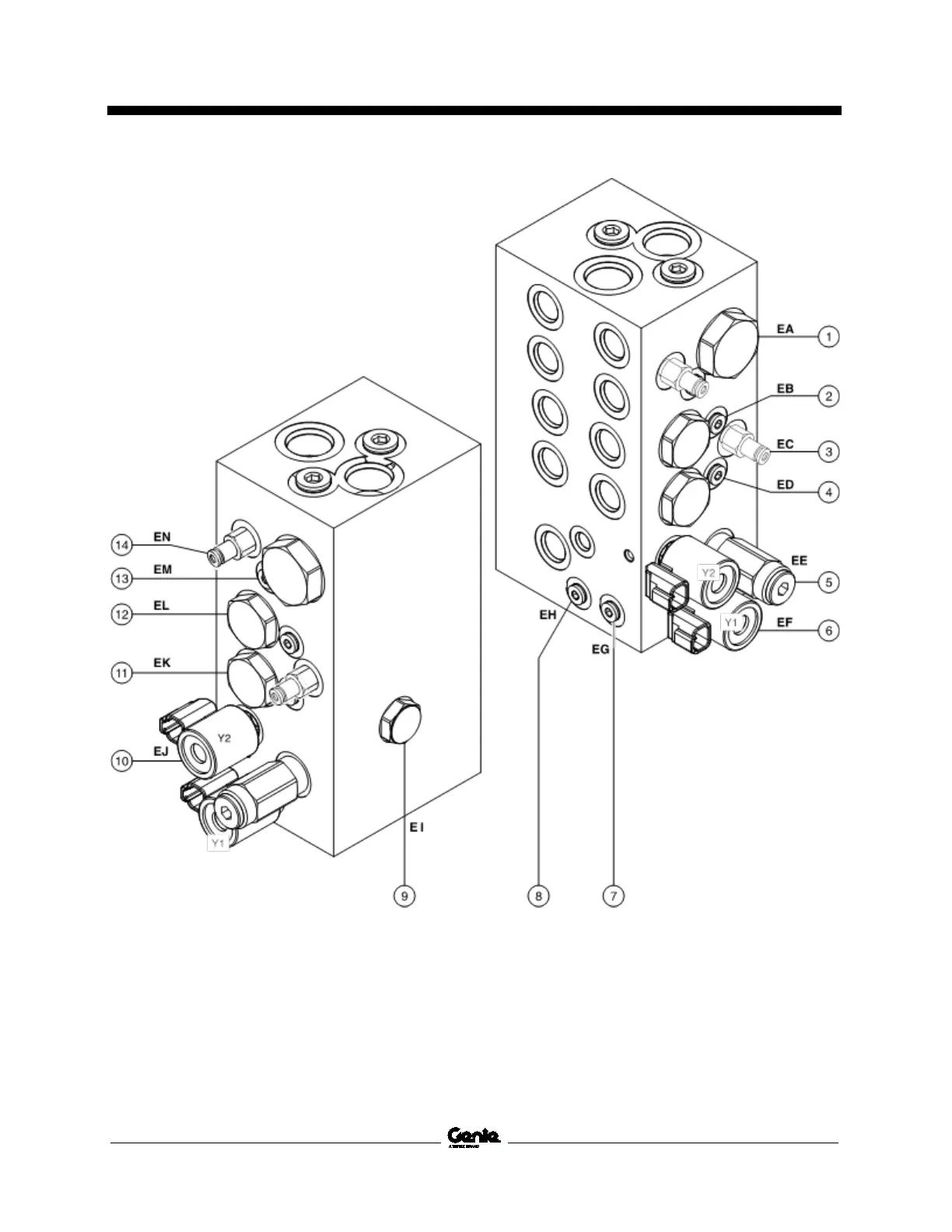

Manifolds
Part No. 1306587GT GS
™
-84 • GS
™
-90 85
Note: 'alpha' callouts refer to corresponding notes on the hydraulic schematic.
Note: 'alpha-numeric' callouts refer to corresponding notes on the electrical schematic.
