Section 2 - Technical Specification November 2008

TECHNICAL SPECIFICATION

Document 57.0009.0427

GTH-4017EX GTH-4514EX GTH-4013EX

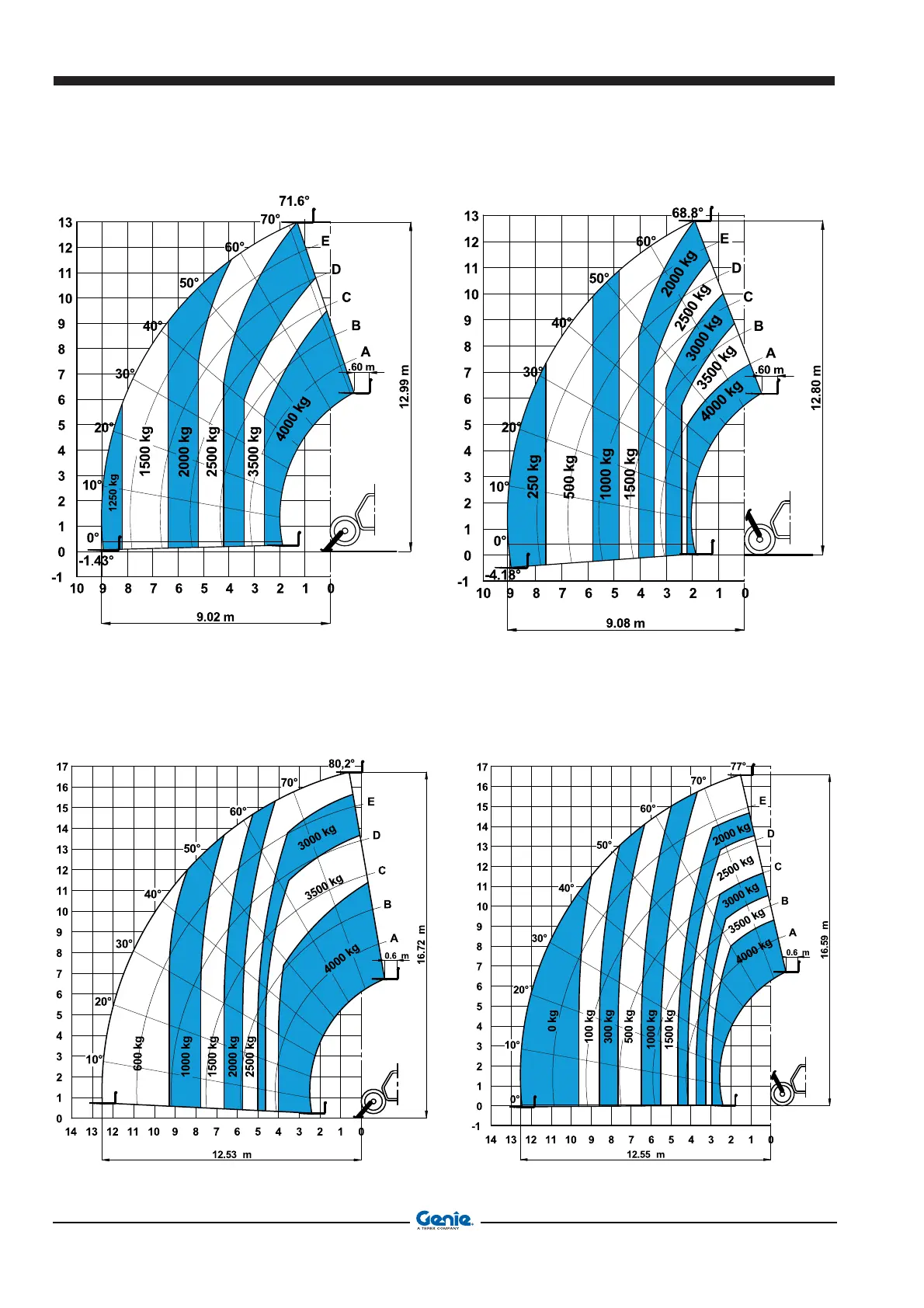

LOAD DIAGRAM

GTH-4013 EX - ON OUTRIGGERS

LOAD DIAGRAM

GTH-4013 EX - ON TYRES

LOAD DIAGRAM

GTH-4017 EX - ON OUTRIGGERS

LOAD DIAGRAM

GTH-4017 EX - ON TYRES
