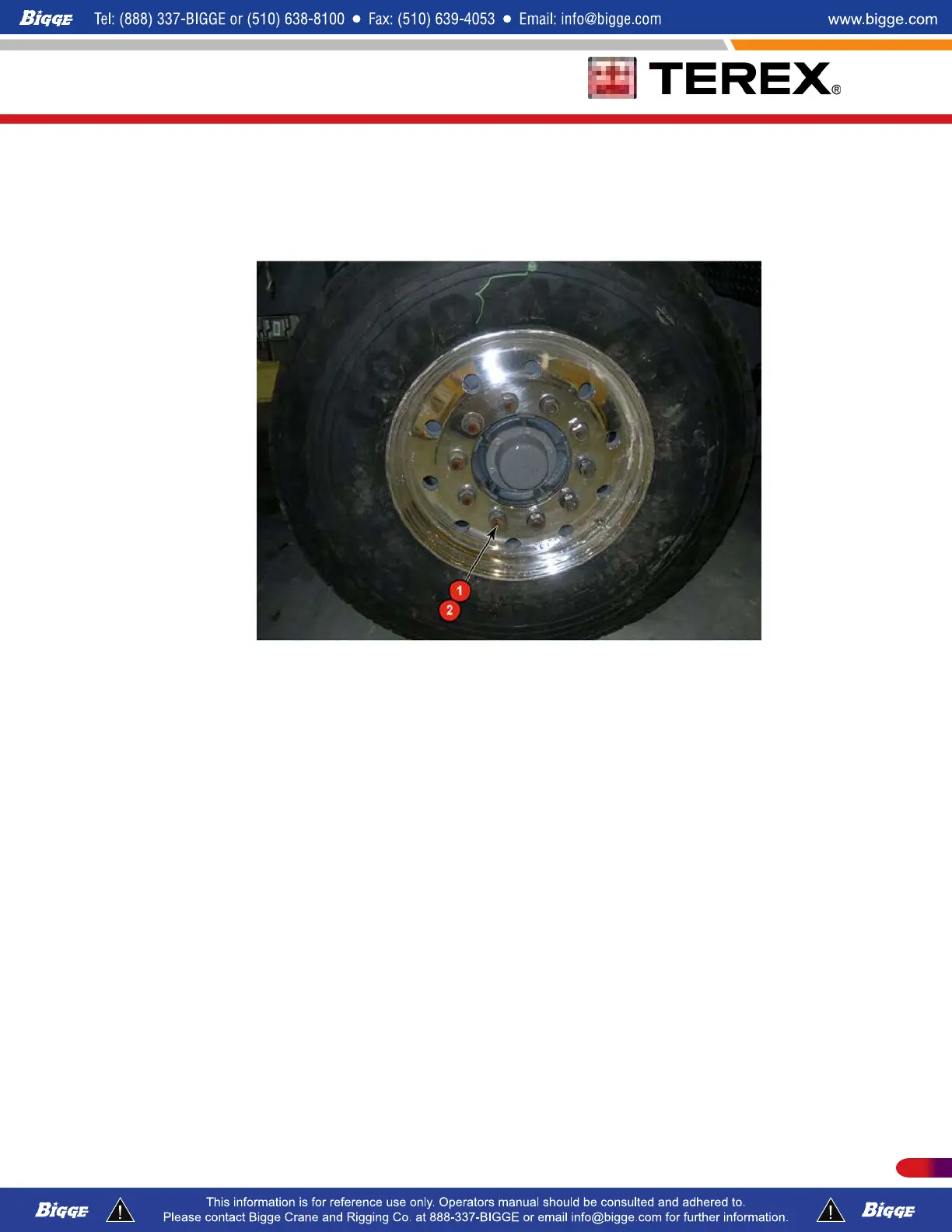

Slide front wheel over studs, being careful not to damage the stud threads. Snug up
nuts in the sequence shown in Figure 4. Do nut tighten them fully until all have been
seated. This procedure will permit the uniform seating of nuts and ensure the even, face-
to-face contact of wheels, hub, and drum. Tighten nuts to 450- 500 ft.-lbs. (item 1 dry)
using the same criss-cross sequence.
1. Torque each nut to 450-500 ft.-lbs (dry).
2.
Install 1222-356 Cover, Lug Nut (10).
b. Dual Rear Wheels
Slide the inner dual wheel over studs, being careful not to damage the stud threads
(1). Do not tighten them fully until all have been seated. This procedure will permit the
uniform seating of nuts and ensure the even face-to-face contact of wheels, hub, and
drum.
461P/N 12261-683 REVISED: January 2015
