19

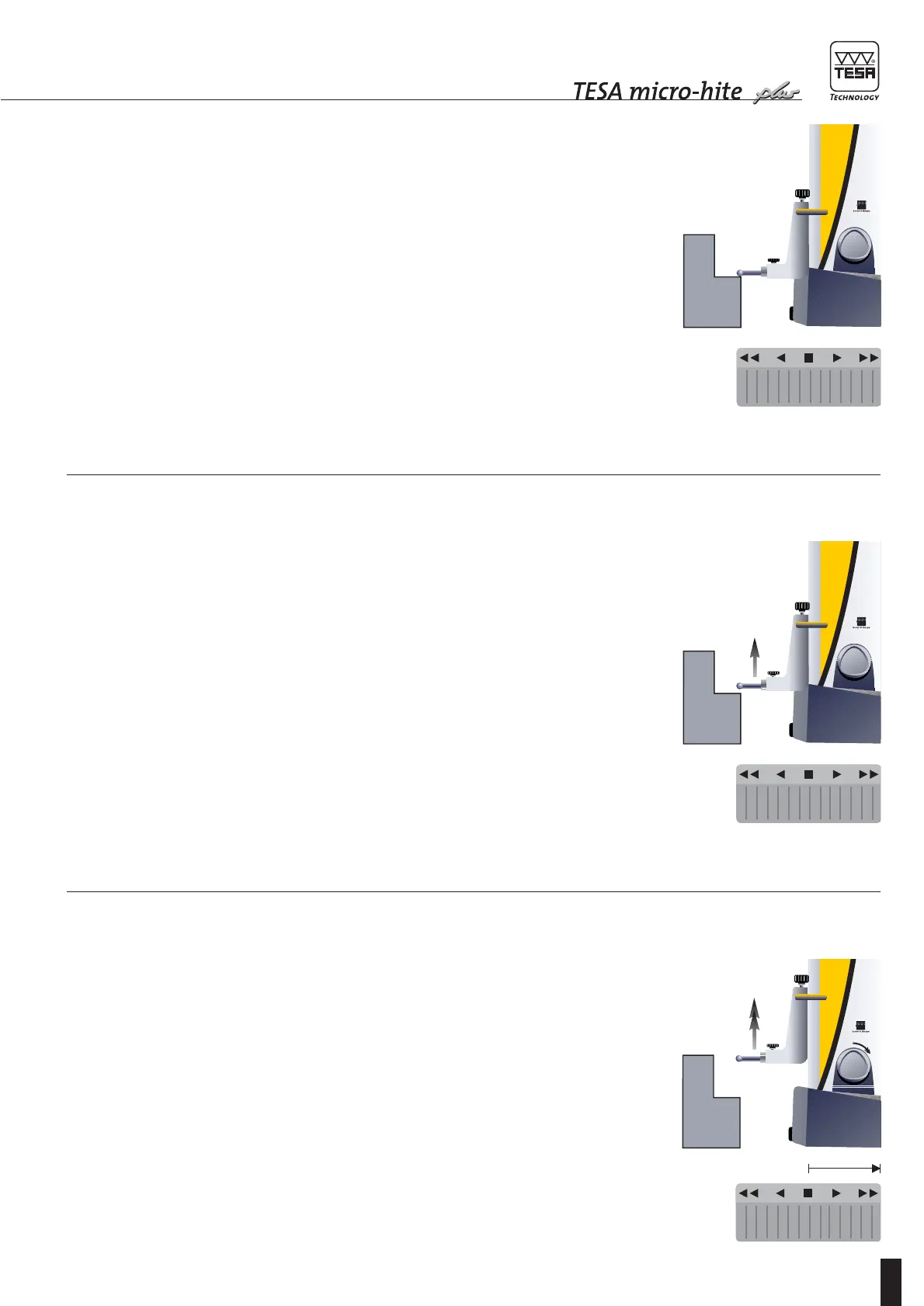

4 Constant measuring force is ensured by the fric-
tion mechanism as soon as the insert is contact-
ing the relevant point. After a wait for stabilisa-
tion, the measured value will be registered and
further displayed via the control panel.
Stabilisation related criteria:
with a resolution to 0,1µm:
variation < 1µm during 1 s.
with a resolution to 1µm:
variation < 5µm during 1 s.
5 Insert will retract automatically once the meas-
ured value has been captured. Programmable
retraction travel r (default setting= 3 mm).
6 Move the probe insert clear of the contact point
using the rotary power control or the handle.
