From the schematic, we can see what has been placed on the board by default. Parts labelled DNP are
not placed on a fresh Launchpad board. These have been left for the users.

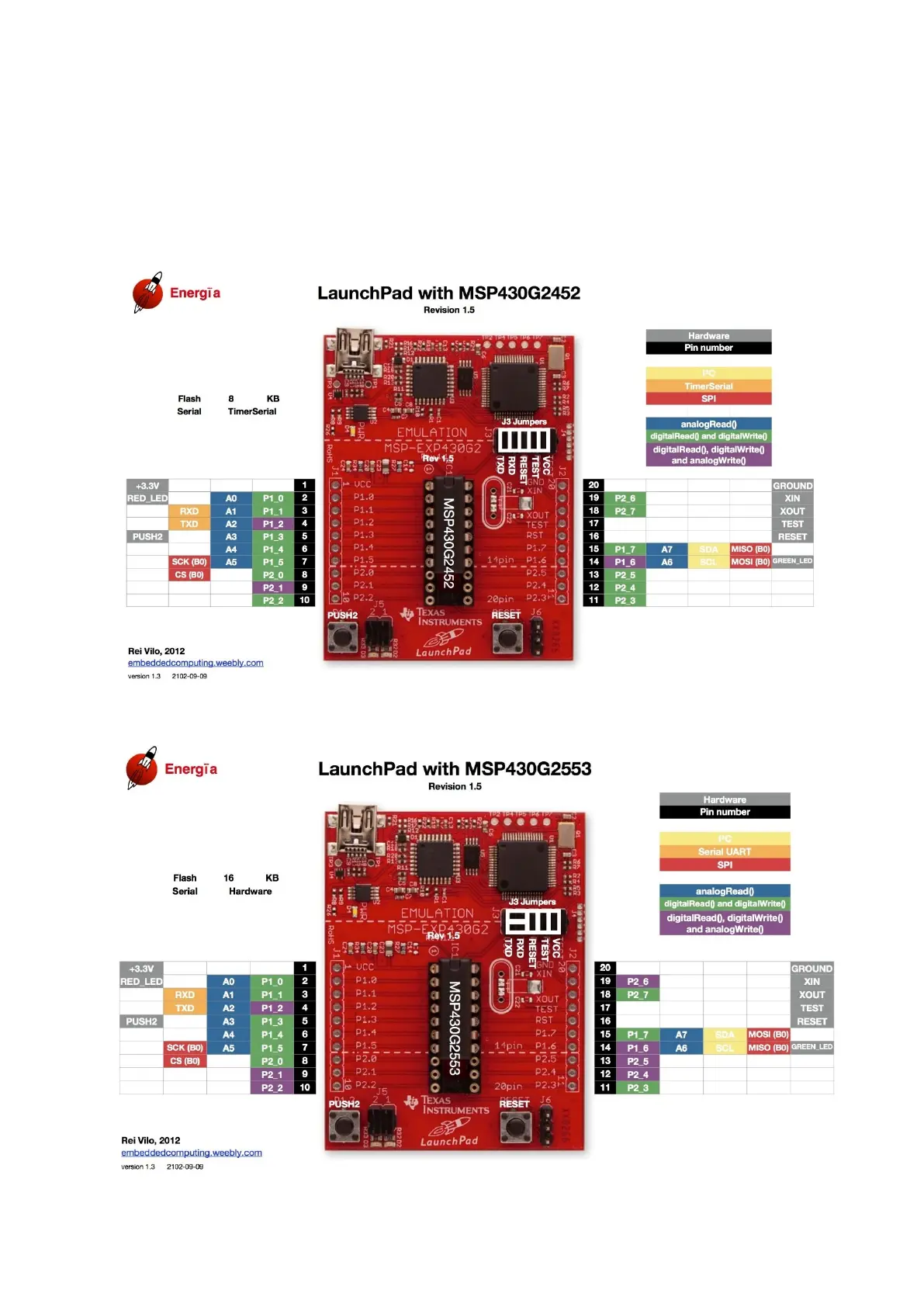

If these don’t matter much and you need something simpler, then there are Arduino-like pin maps for
Launchpads. Though they are made for Energia IDE, they are useful for quick overviews.
