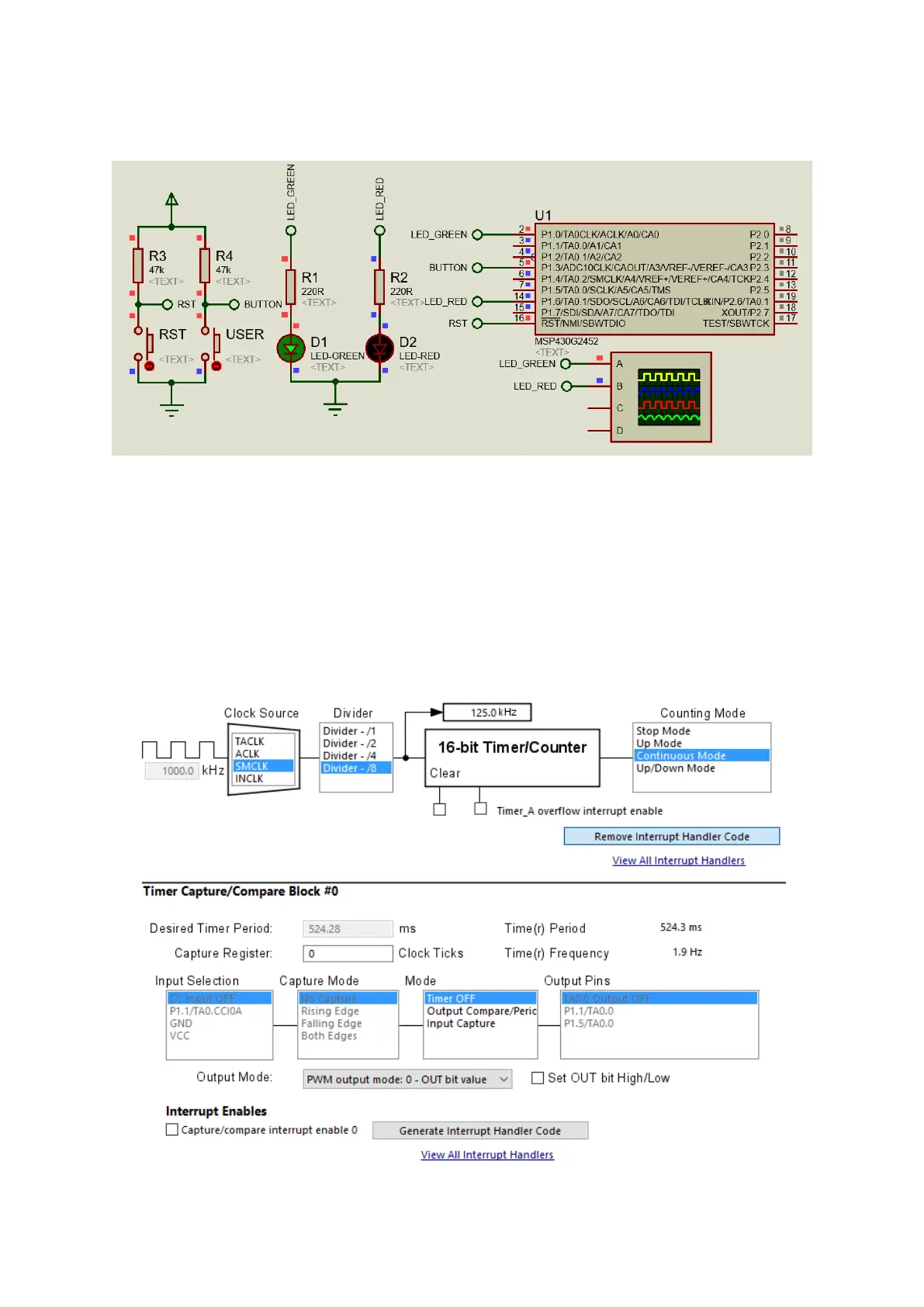

Simulation
Explanation
In this demo, Timer_A3 is clocked with SMCLK divided by 8. SMCLK has a frequency of 1MHz and so
Timer_A3 is feed with a 125kHz clock. This gives us a timer tick period of 8 microseconds. Since the
timer is programmed to operate in continuous mode, i.e. it will count from 0 to top value of 65535,
the timer will overflow roughly about every 500 milliseconds. We, thus, have an interval window of
500 milliseconds.
