MEC 320 GENSET CONTROLLER
PM079 Rev 0 07/06/08 60 Thomson Technology
Language configuration
Besides the master language 11 empty language shells are available. These empty shells can
be filled in via the PC utility software.

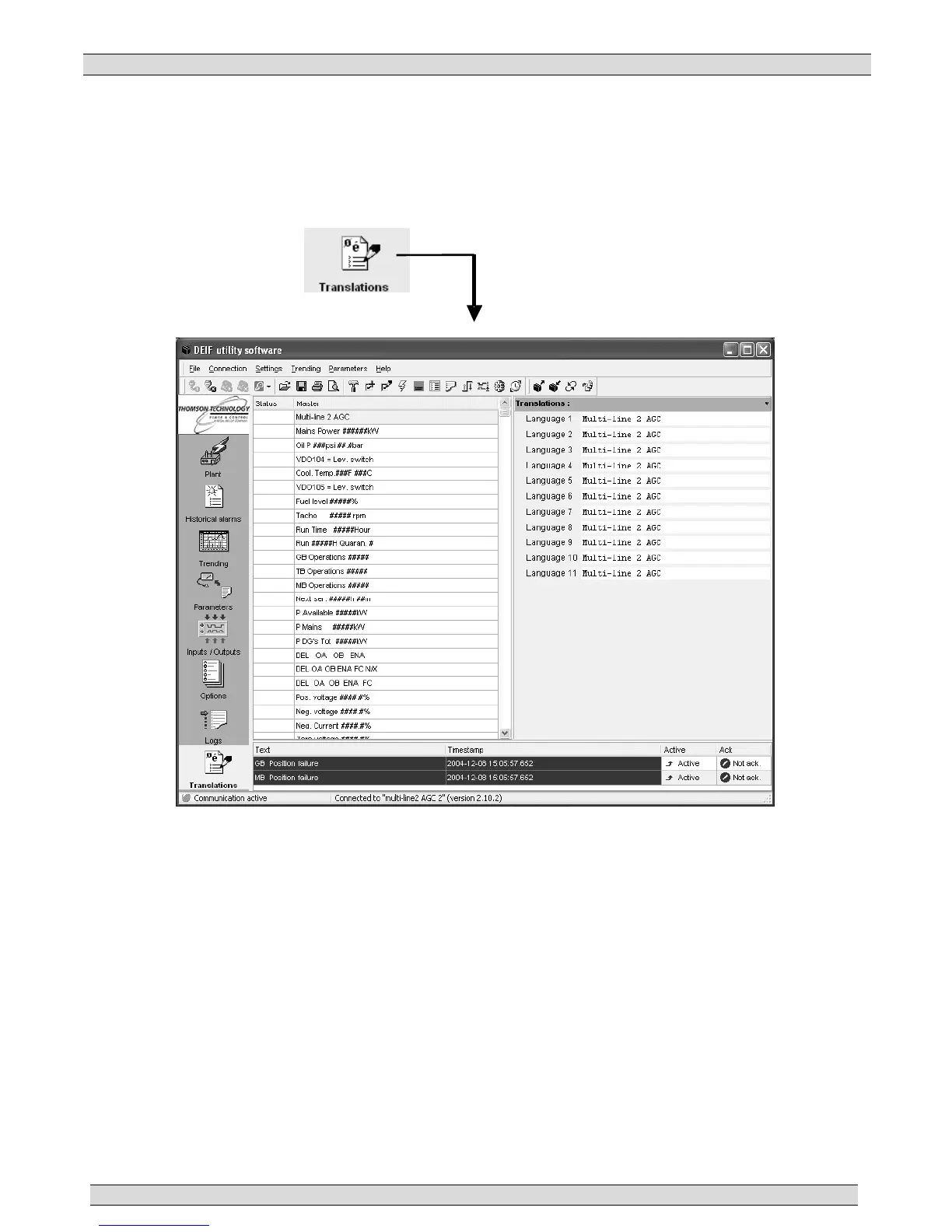

In the PC utility software the language is configured in the
Translations
menu. Activate the menu
by pressing the
Translations
icon (see below):
All configurable entries are indicated in the left side column. The list can be scrolled with page
DOWN/UP.
Example:
Language 1 = Spanish.
Tacho name is changed in this example:
•
’Tacho’ is changed to ’ ’
•
‘RPM’ is changed to ‘ ’
Select the line which needs to be edited.
