THRUSH AIRCRAFT, INC – MODEL S2R-G10
AIRCRAFT MAINTENANCE MANUAL
6-9

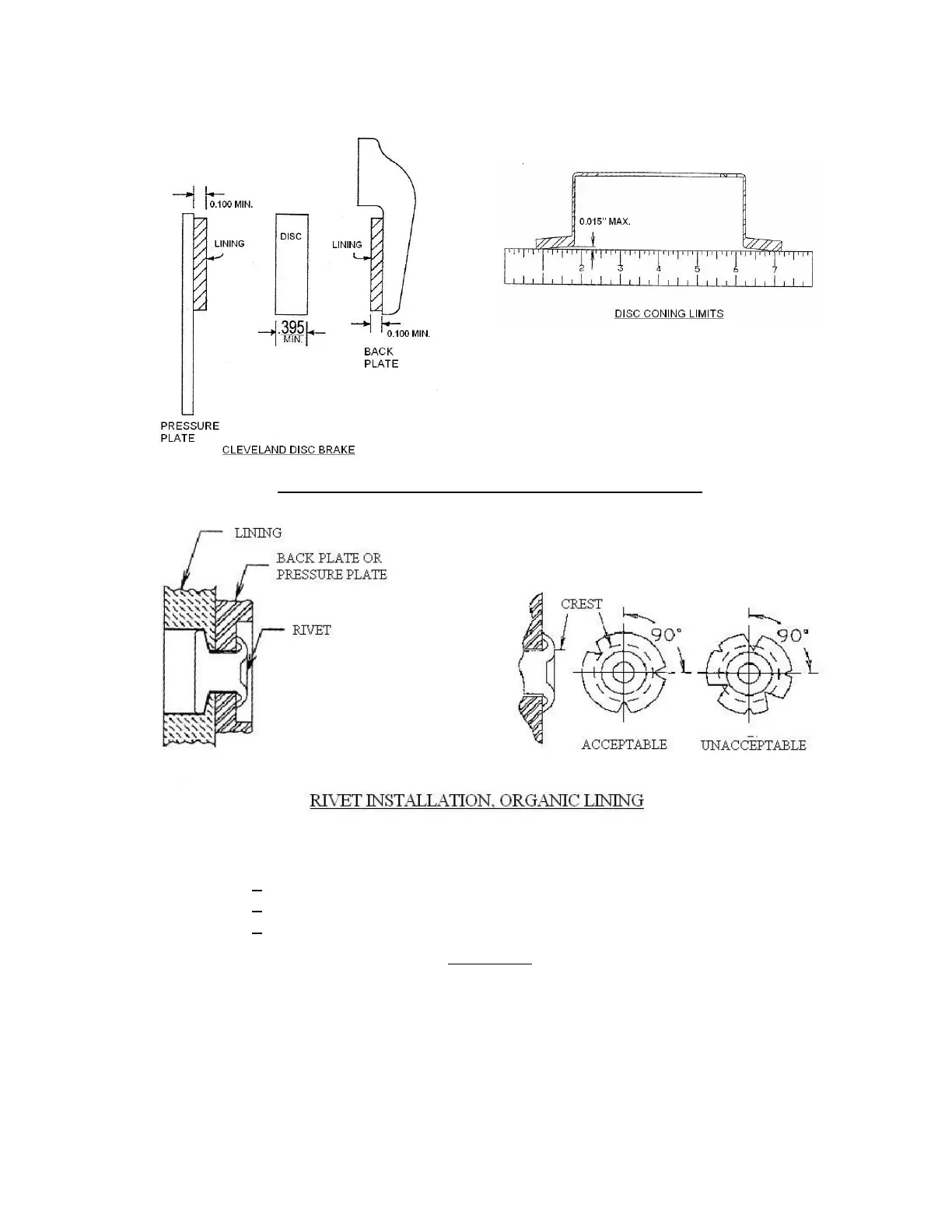

Figure 6-3: Brake Disc and Lining Inspection Criteria
Rivet Acceptance Criteria
1
The split shall not occur inside the crest of the clenched surface.
2 No more than two splits shall occur in a 90° area.
3
A total of no more than three splits shall be allowed.
Figure 6-4
