THRUSH AIRCRAFT, INC – MODEL S2R-G10
AIRCRAFT MAINTENANCE MANUAL
FLAP REMOVAL
A. Disconnect flap push rod at flap. Do
not change position of rod end on
push rod. (See Figure 7-5)
B. Remove flap hinge bolts.
C. Remove flap from aircraft.
FLAP INSTALLATION
Installation of the flap is the reverse of the
removal procedure. In the event push rod
length has been altered, the flap will have to
be completely re-rigged.

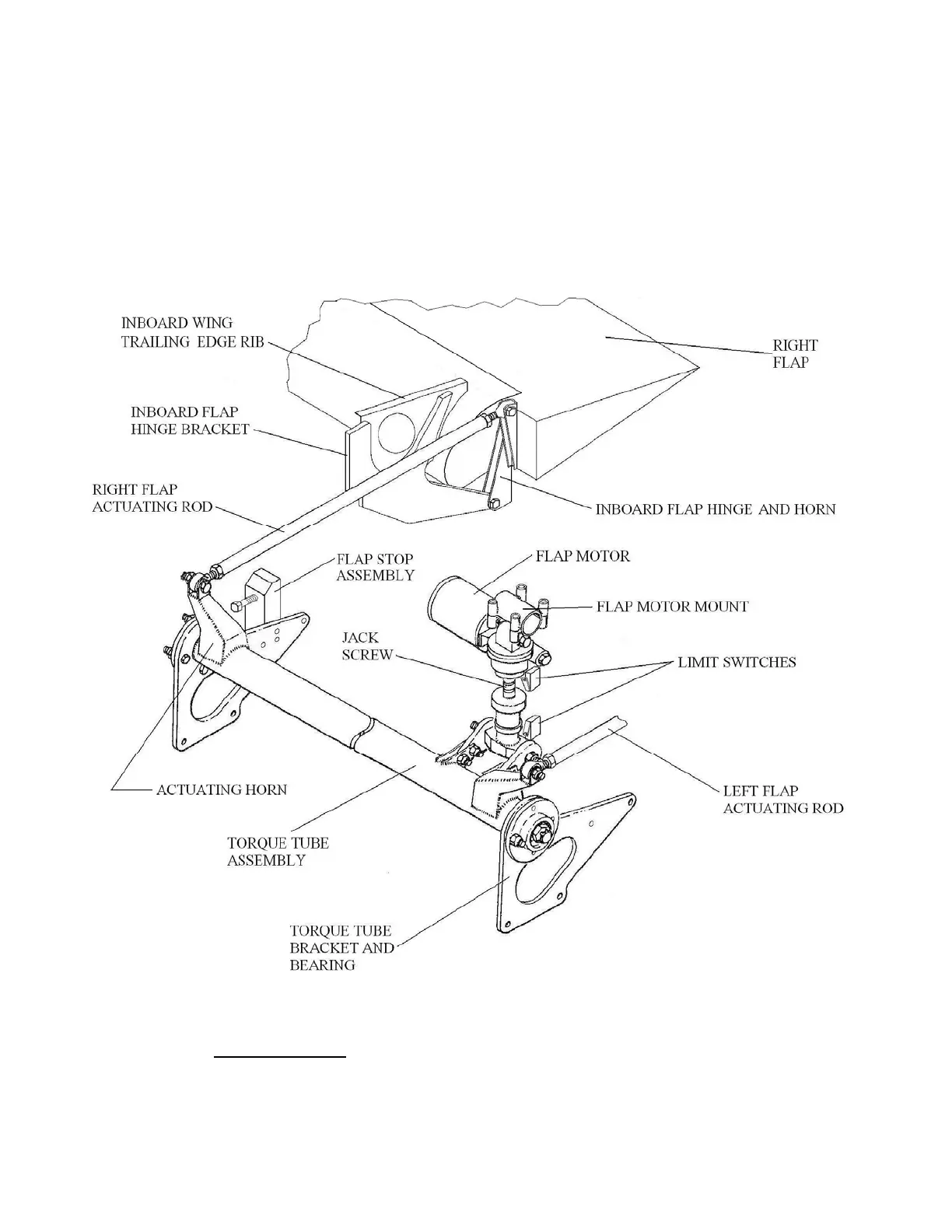

Figure 7-5: Flap Operating Mechanism
FLAP RIGGING
A. With the master switch “ON,” fully
retract the flaps (up flaps) with the
flap switch.
B. Disconnect the flap push – pull rods at
the torque tube arms.
C. Hold a straight edge on the wing lower
surface at wing station 49.0
(approximately 24 inches outboard of
the fuselage side). In the properly
Effective: 03/26/2010 Page 7-9
