THRUSH AIRCRAFT, INC – MODEL S2R-G10
AIRCRAFT MAINTENANCE MANUAL
AGITATOR AND SPREADER
Ref. Figure 9-5
A number of dry chemical/seed
spreaders are available as options on the
S2R-G10. Factory installation includes
airframe attachment hard points.
Operation and maintenance of the
spreader should be done according to
the manufacturer’s instructions. General
maintenance guidance is included below.
A. Inspect spreader attachment to the
airframe for condition and security.
Ensure that spreader is level when
aircraft is in flight attitude.
B. Inspect gearbox for proper oil level (refer
to manufacturer's data).
C. Inspect fan, gearbox, drive shaft,
agitator and coupling for security and
proper operation.
D. Inspect agitator shaft seal at hopper for
evidence of leaks.
E. Inspect spreader unit for cracks, loose
rivets, and loose or missing vanes.

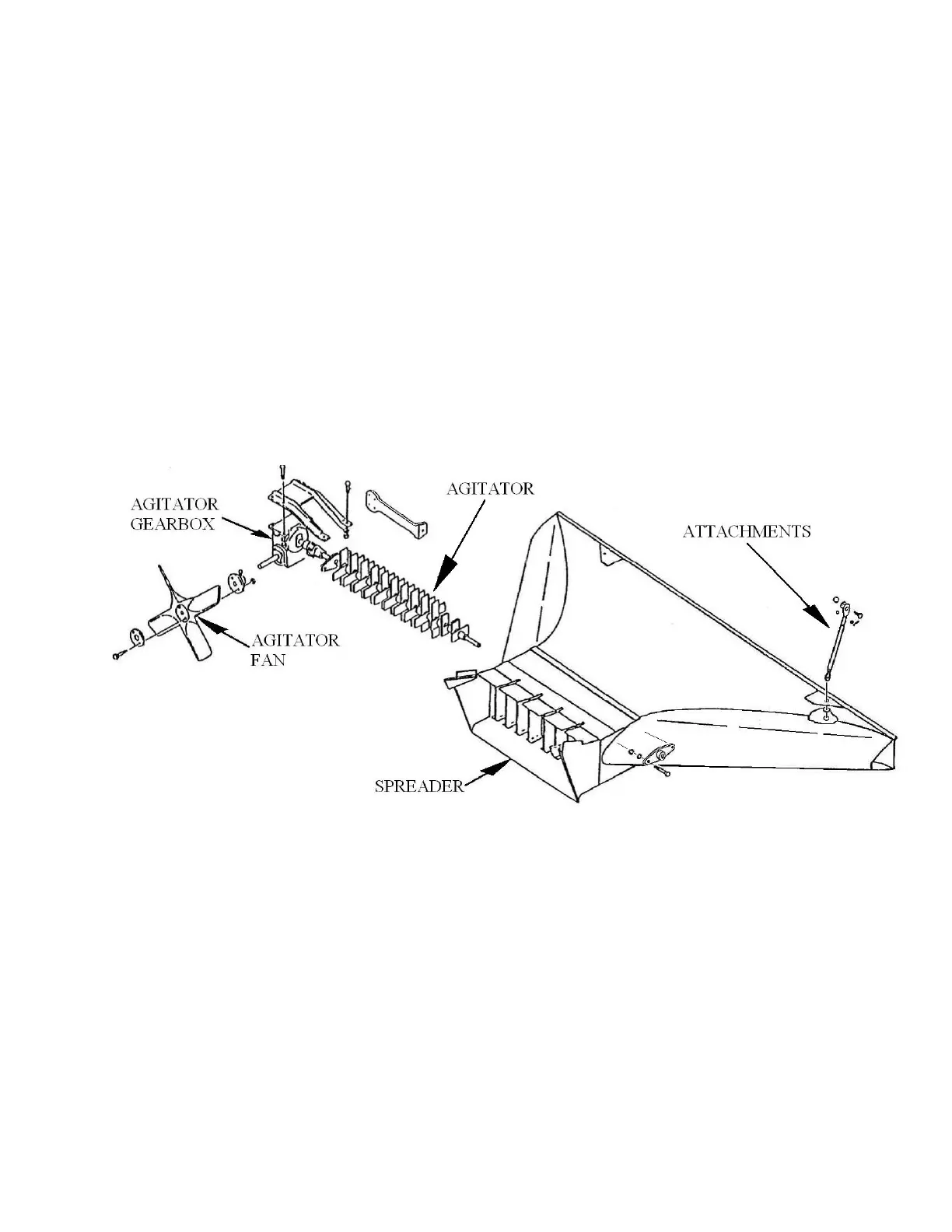

Figure 9-5: Agitator and Spreader e 9-5: Agitator and Spreader
Effective: 03/26/2010 Page 9-7
