THRUSH AIRCRAFT, INC – MODEL S2R-G10
AIRCRAFT MAINTENANCE MANUAL

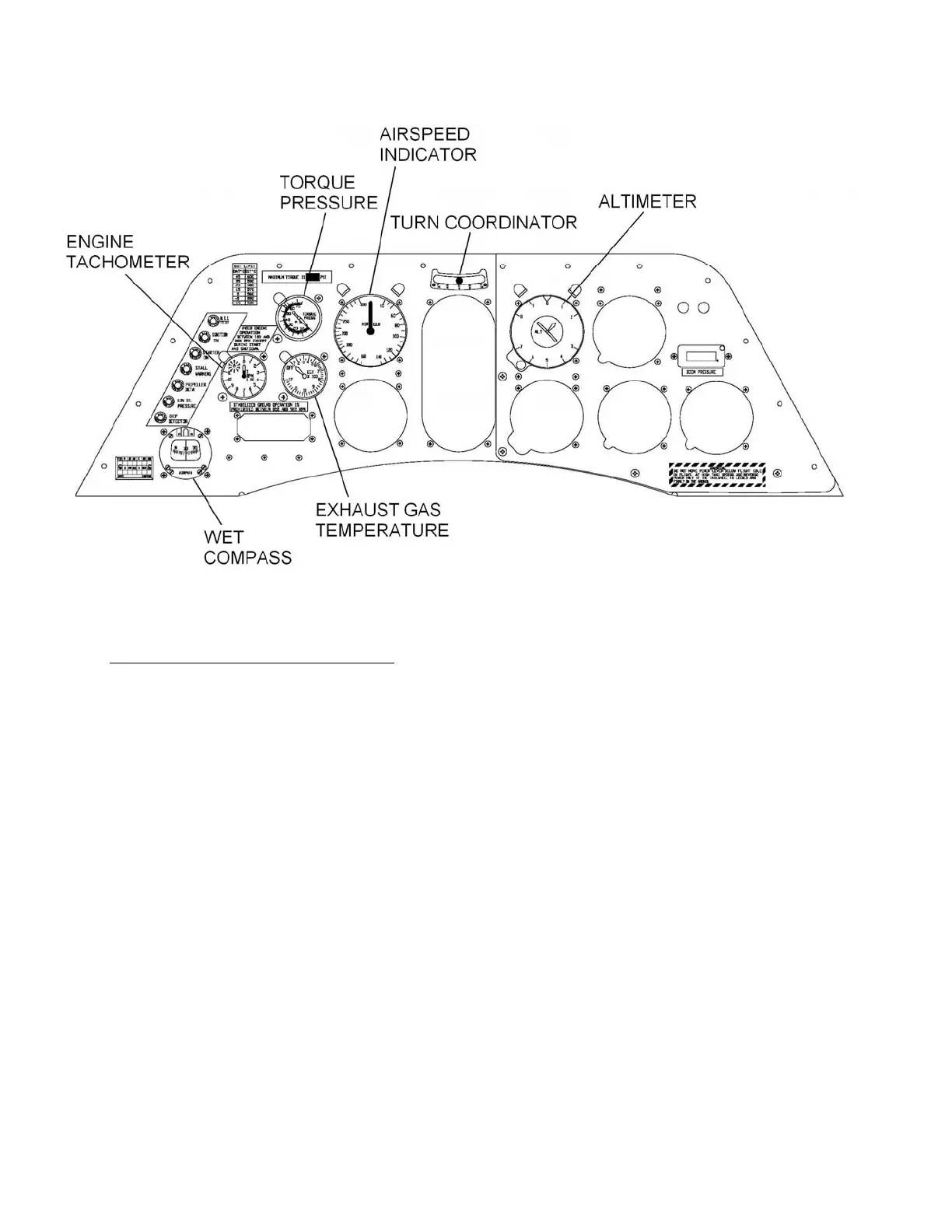

Figure 8-2: Center Instrument Panel
Magnetic Compass Compensation
Locate the aircraft in area suitable for
the method of magnetic compass
compensation to be used. Close doors
and place flaps in a retracted position.
Set the throttle at cruise position with
engine operating. Place all electrical
switches, alternator, radio and other
equipment in a mode normally used in
flight and proceed with the following:
A. Set adjustment screws of
compensating magnets to zero.
Zero position is when the dot on the
screw is lined up with the dot on the
compass frame.
B. Position aircraft in a magnetically
north direction. Use an approved
compass rose if at all possible, as
they are aligned to magnetic north
for that location. Adjust north-south
adjustment screw until compass
reads exactly north.
C. Position aircraft in a magnetically east
direction. Adjust east-west adjustment
screw until compass reads exactly east.
D. Position aircraft in a magnetically south
direction. Notice the resulting south
error. Adjust north-south adjustment
screw so that one-half of the error has
been removed.
E. Position aircraft in a magnetically west
direction. Notice the resulting west
error. Adjust east-west adjustment
screw so that one-half of the error has
been removed.
F. Recheck the magnetically north and
east directions to confirm that the error
is the same as for south and west
directions.
G. Position aircraft in successive
magnetically 30-degree directions and
record all errors on the deviation card
furnished with the compass.
