THRUSH AIRCRAFT, INC – MODEL S2R-G10
AIRCRAFT MAINTENANCE MANUAL
Page 7-20 Effective: 03/26/2010
A. If the landing gear is not installed,
support the fuselage at a convenient
height using jacks at the landing gear
attach points, left and right, and at
the aft jack point.
B. On the left wing, install the outboard
wing attach angle on the main spar
web with NAS1104-16 bolts, MS20002C
washers, AN960-416 washers and
MS21042-4 nuts. Torque the nuts per
Table 7-3, six places.

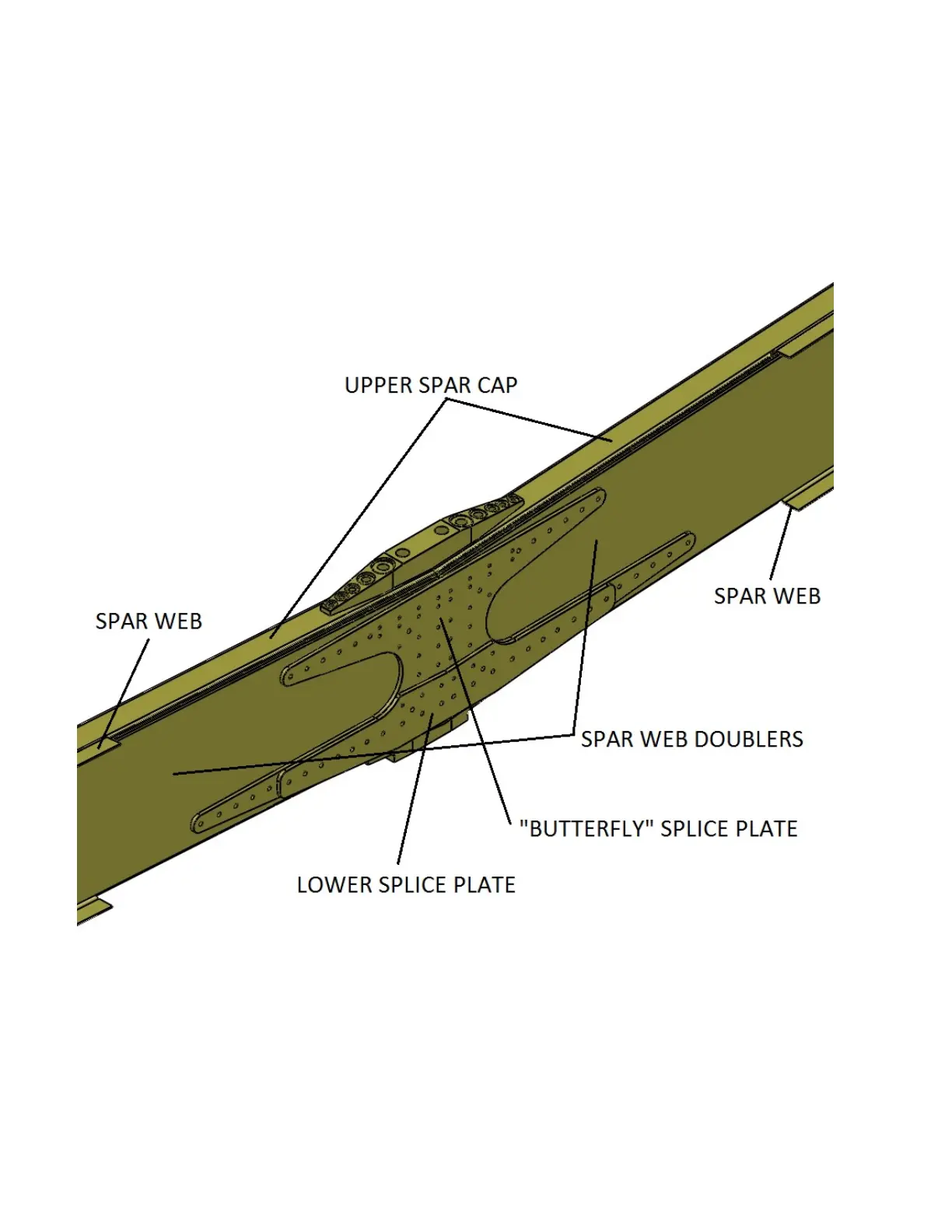

Figure 7-11: Wing Spar Inboard Splice
