THRUSH AIRCRAFT, INC - MODEL S2R-G10
AIRCRAFT MAINTENANCE MANUAL

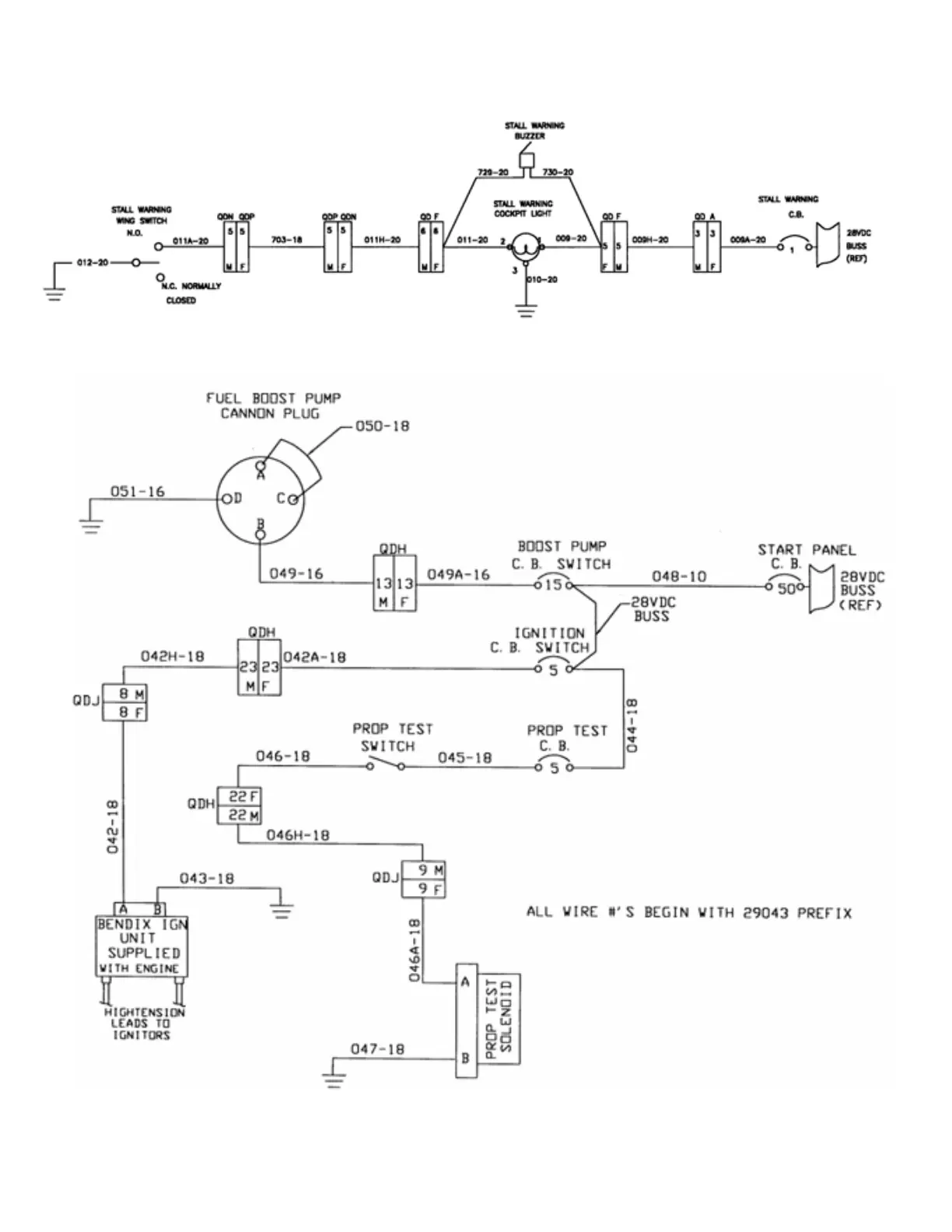

Figure 10-19: Stall Warning System Wiring Diagram
Figure 10-20: Start Panel Wiring Diagram
Page Effective: 03/26/2010 10-16
