THRUSH AIRCRAFT, INC – MODEL S2R-G10
AIRCRAFT MAINTENANCE MANUAL
6. Close the bleeder valve and place the
plastic tube on the other bleeder valve.
7. Bleed that caliper the same as above.
It should not take more than two brake
pedal strokes.
8. Close that bleeder valve and top off the
master cylinder hydraulic reservoir.
9. Dispose of the hydraulic fluid bled into
the container properly. DO NOT reuse
this hydraulic fluid, as it may be
contaminated.

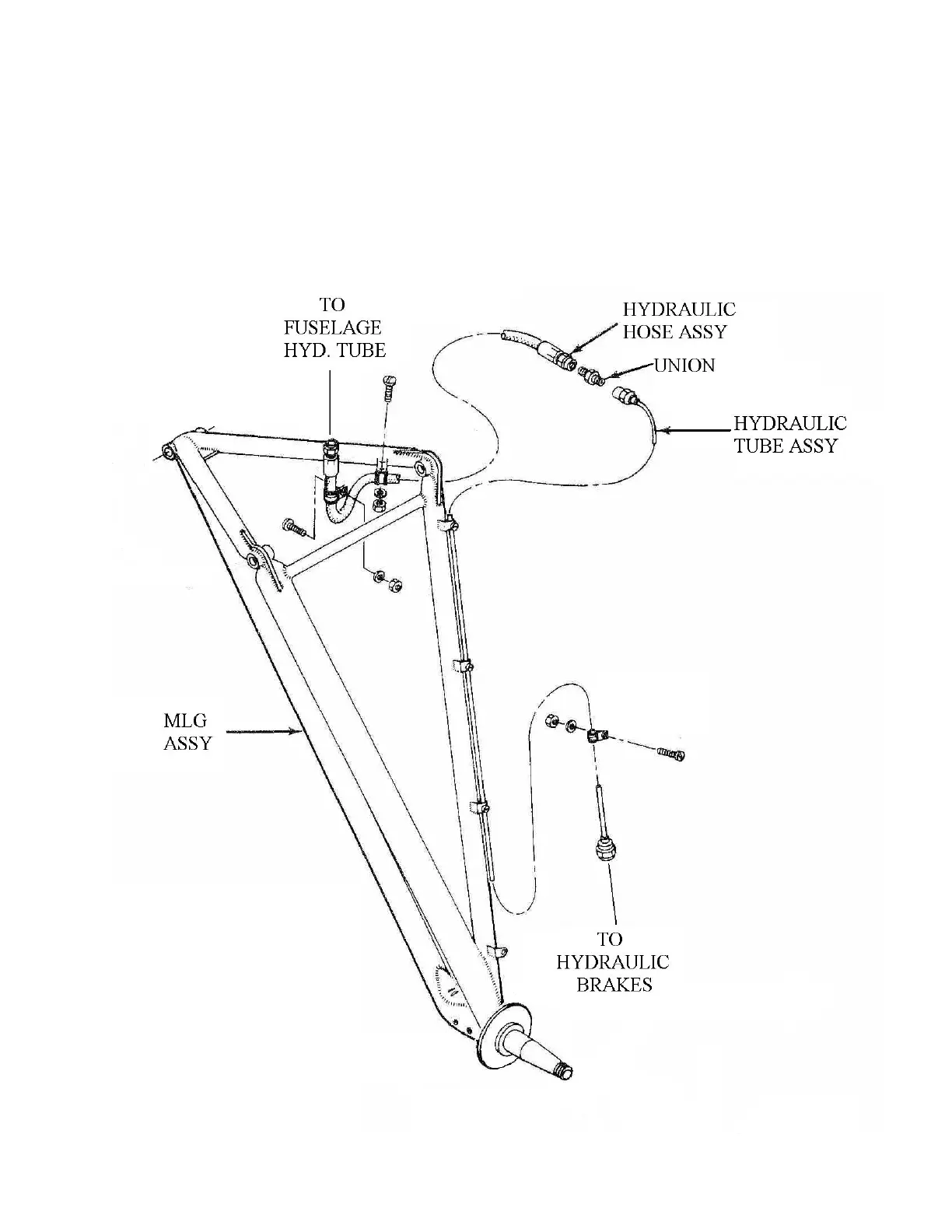

Figure 3-4: Main Landing Gear Hydraulics
3-5 Effective: 03/26/2010 Page
