THRUSH AIRCRAFT INC - MODEL S2R-G10
AIRPLANE MAINTENANCE MANUAL
Effective: 03/26/2010 Page 4-17
On the torque pressure indicator, change
the position of the red “bug” to correspond
with the pressure value determined above
and secure in place with a sealing
compound. On the instrument panel
adjacent to the torque pressure indicator,
affix a placard which spells out the proper
torque pressure indication at 100% torque.
For example, “59.5 PSI EQUALS 100%
TORQUE”.

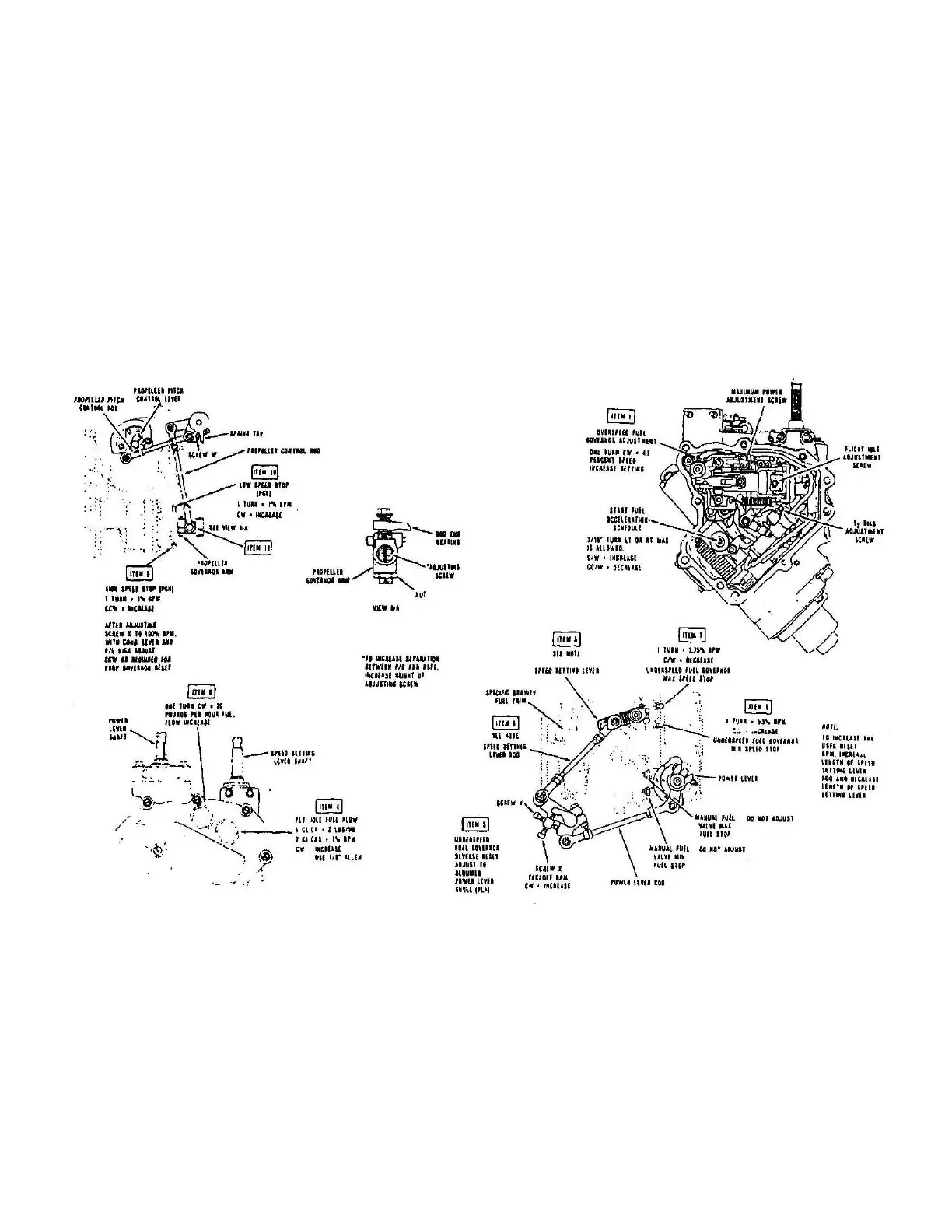

Figure 4-7: Ground Idle Adjustment
