Page 2-10 Document Ref 909342-001 Rev 11
Site Preparation Quantium 410 Installation Manual

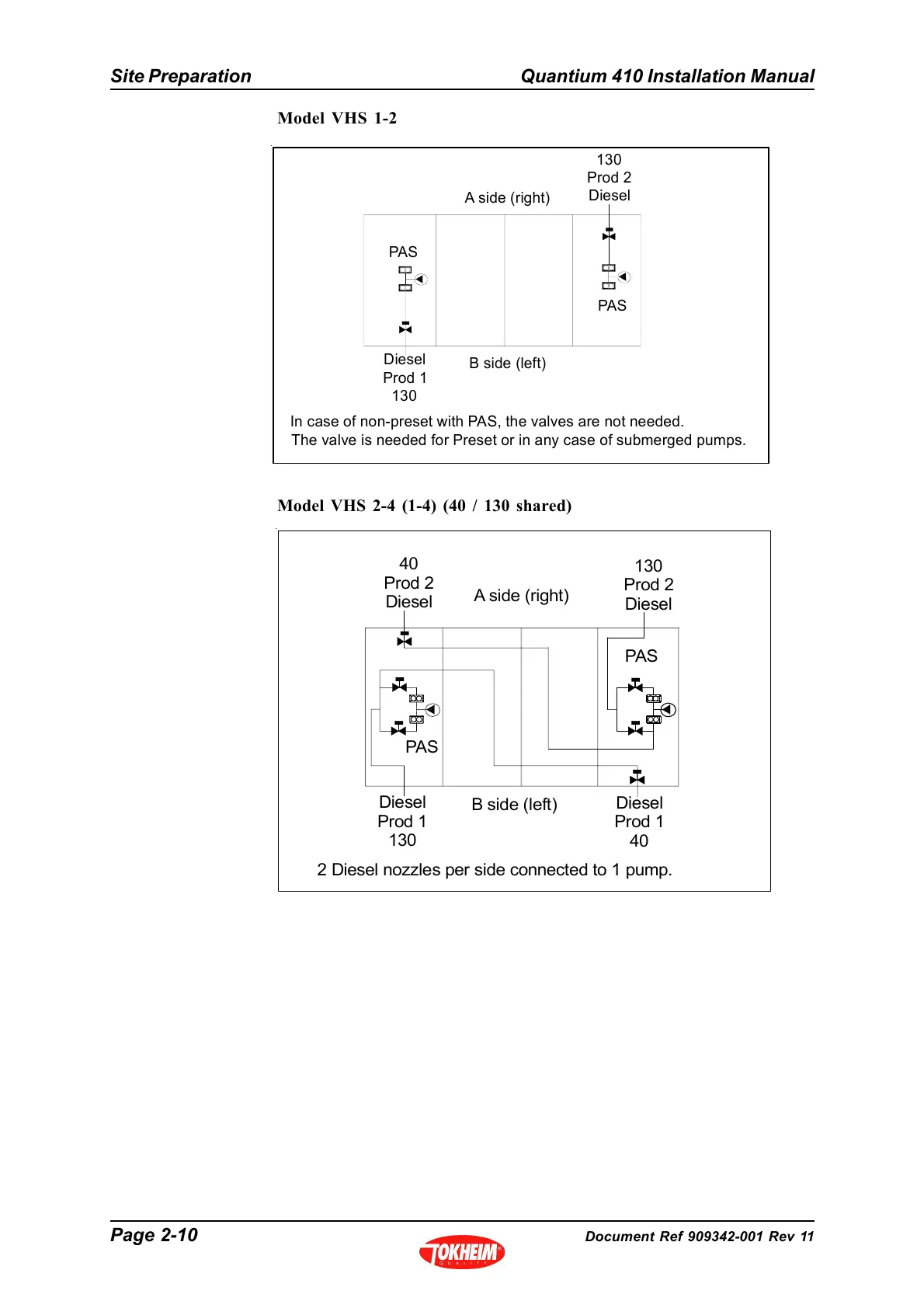

Model VHS 2-4 (1-4) (40 / 130 shared)
Model VHS 1-2
In case of non-preset with PAS, the valves are not needed.
The valve is needed for Preset or in any case of submerged pumps.
130
Prod 2
Diesel
A side (right)
B side (left)
Diesel
Prod 1
130
PAS
PAS
PAS
PAS
40
Prod 2
Diesel
130
Prod 2
Diesel
Diesel
Prod 1
130
Diesel
Prod 1
40
A side (right)
B side (left)
2 Diesel nozzles per side connected to 1 pump.
