Document Ref 909342-001 Rev 11 Page 2-23
Quantium 410 Installation Manual Site Preparation
2.4 Electrical Connections
The electrical connection to be established between the kiosk and the dispenser exists in
different configurations. The mains connection (power from the mains supply panel to the
dispenser) and the data connection (link between forecourt controller and calculator) are
customer, country and configuration specific. The number of cores and the cross section
of the cable will be specified, as will the cable construction (armoured or Explosion proof)
and guidance troughs, channels or cable trunks have to be carried out in accordance with
national technical regulations.

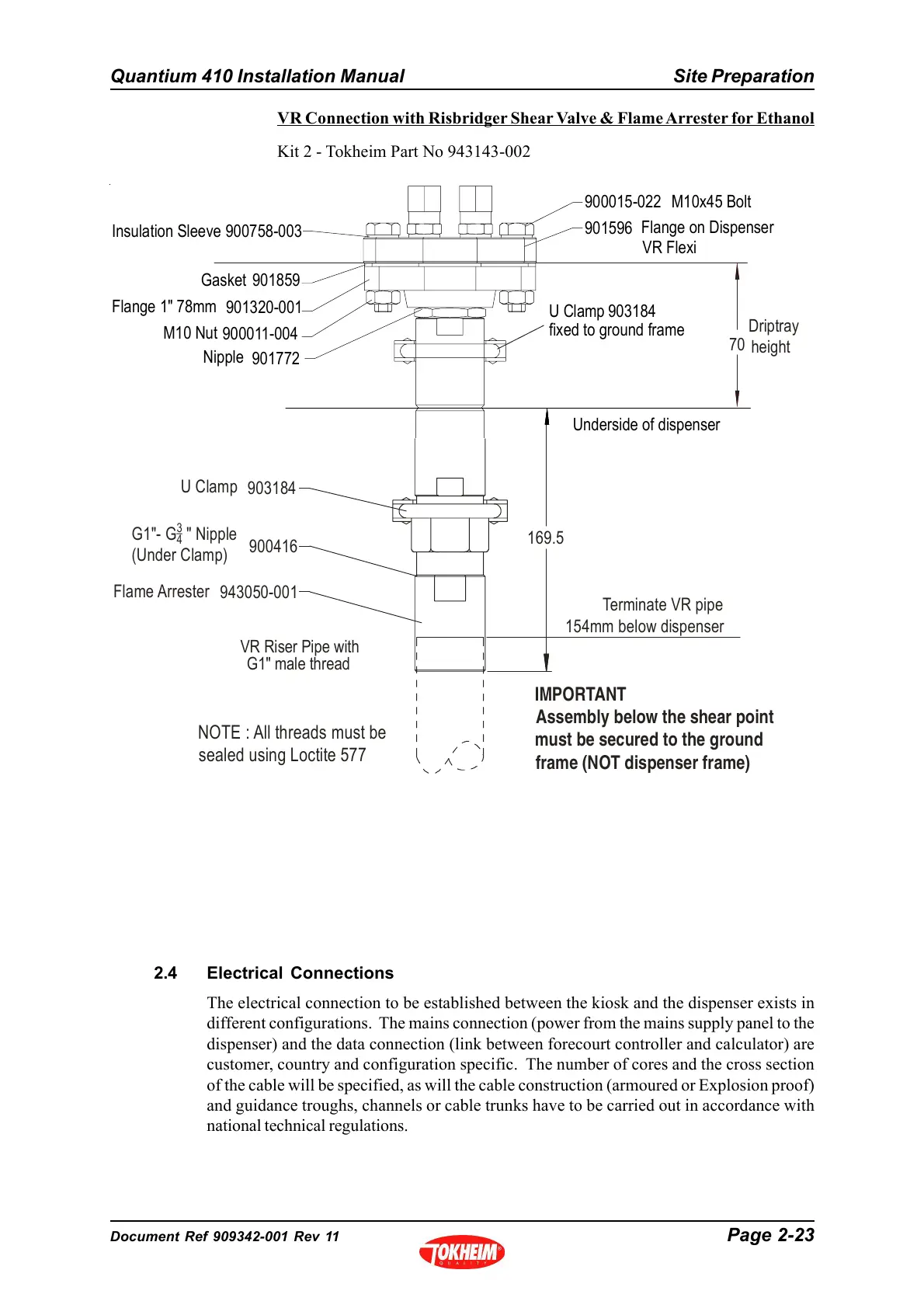

VR Connection with Risbridger Shear Valve & Flame Arrester for Ethanol
Kit 2 - Tokheim Part No 943143-002
Terminate VR pipe
154mm below dispenser
169.5
IMPORTANT
Assembly below the shear point
must be secured to the ground
frame (NOT dispenser frame)
NOTE : All threads must be
sealed using Loctite 577
900416
943050-001
903184
U Clamp
Flame Arrester
G1"- G
3
4
" Nipple
(Under Clamp)
M10x45 Bolt
Flange on Dispenser
VR Flexi
900015-022
901596
900758-003Insulation Sleeve
901320-001
900011-004
901772
901859
Flange 1" 78mm
M10 Nut
Nipple
Gasket
Underside of dispenser
Driptray
height
70
U Clamp 903184
fixed to ground frame
VR Riser Pipe with
male threadG1"
To Next Page
