Tokheim QUANTIUM 410 - Four Product

Page 3-10 Document Ref 909342-001 Rev 11
Drawings Quantium 410 Installation Manual

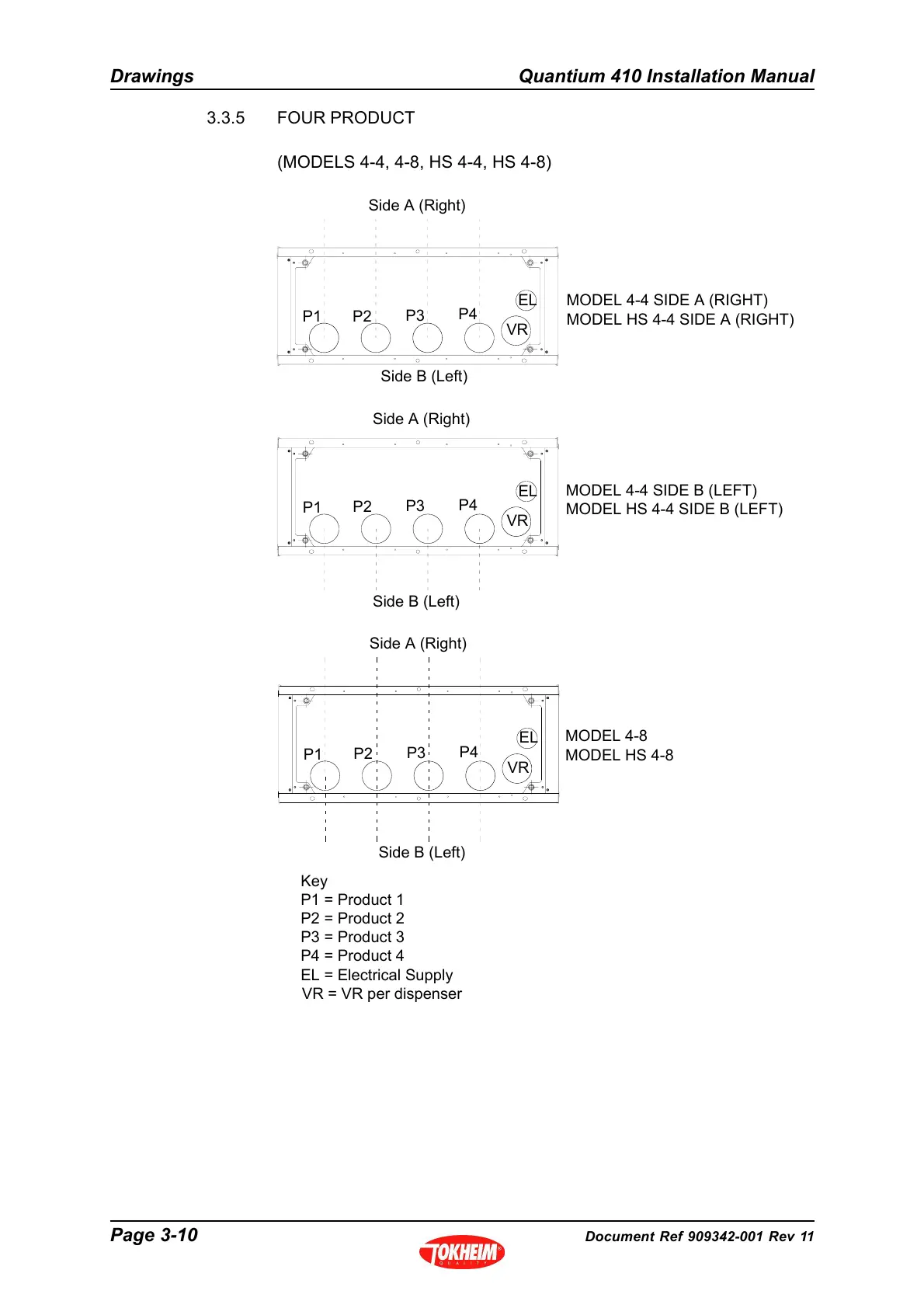

3.3.5 FOUR PRODUCT
(MODELS 4-4, 4-8, HS 4-4, HS 4-8)
Side B (Left)
P3
Side A (Right)
P1
P2
VR
P4
EL
Side A (Right)
Side B (Left)
P3
P1
P2
VR
P4
EL
Side A (Right)
Side B (Left)
P3
P1
P2
Key
P1 = Product 1
P2 = Product 2
P3 = Product 3
P4 = Product 4
EL = Electrical Supply
VR = VR per dispenser
MODEL 4-4 SIDE A (RIGHT)
MODEL HS 4-4 SIDE A (RIGHT)
MODEL 4-4 SIDE B (LEFT)
MODEL HS 4-4 SIDE B (LEFT)
MODEL 4-8
MODEL HS 4-8
VR
P4
EL
