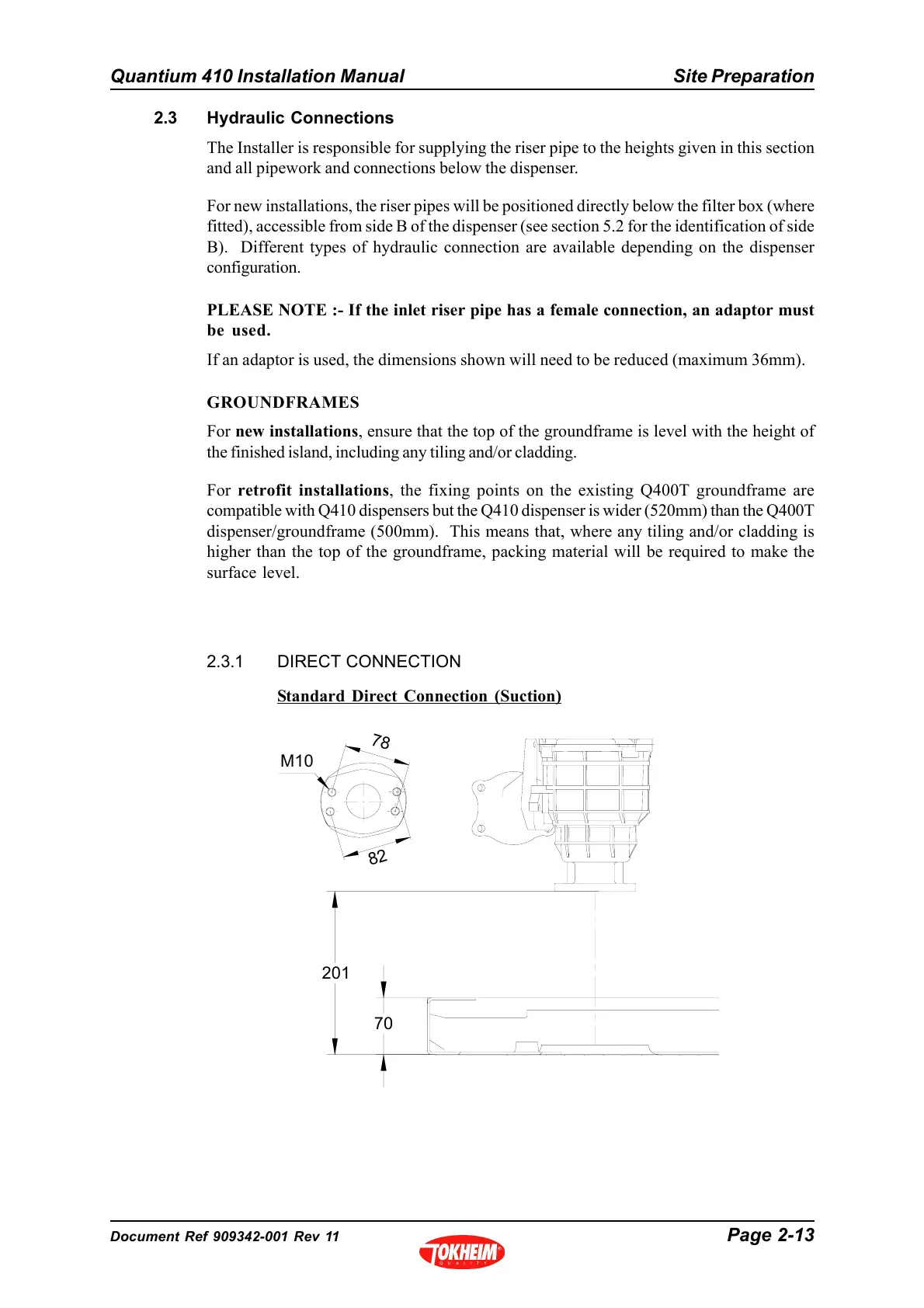

Document Ref 909342-001 Rev 11 Page 2-13
Quantium 410 Installation Manual Site Preparation
2.3 Hydraulic Connections
The Installer is responsible for supplying the riser pipe to the heights given in this section
and all pipework and connections below the dispenser.
For new installations, the riser pipes will be positioned directly below the filter box (where
fitted), accessible from side B of the dispenser (see section 5.2 for the identification of side
B). Different types of hydraulic connection are available depending on the dispenser
configuration.
PLEASE NOTE :- If the inlet riser pipe has a female connection, an adaptor must
be used.
If an adaptor is used, the dimensions shown will need to be reduced (maximum 36mm).
GROUNDFRAMES
For new installations, ensure that the top of the groundframe is level with the height of
the finished island, including any tiling and/or cladding.
For retrofit installations, the fixing points on the existing Q400T groundframe are
compatible with Q410 dispensers but the Q410 dispenser is wider (520mm) than the Q400T
dispenser/groundframe (500mm). This means that, where any tiling and/or cladding is
higher than the top of the groundframe, packing material will be required to make the
surface level.
70
201
M10
7
8
8
2
2.3.1 DIRECT CONNECTION
Standard Direct Connection (Suction)
