Tokheim QUANTIUM 410 - Page 28

Page 2-14 Document Ref 909342-001 Rev 11
Site Preparation Quantium 410 Installation Manual
M10
Nefit Adaptor
(optional)
Plain 1.5" pipe
min - 200 max
82
78
70
180
201
201
70
200
1.5" pipe with male
thread (BSP)
Optional gasket
(906960) & Female
1.5" adaptor flange
(901320-002)
M10
82

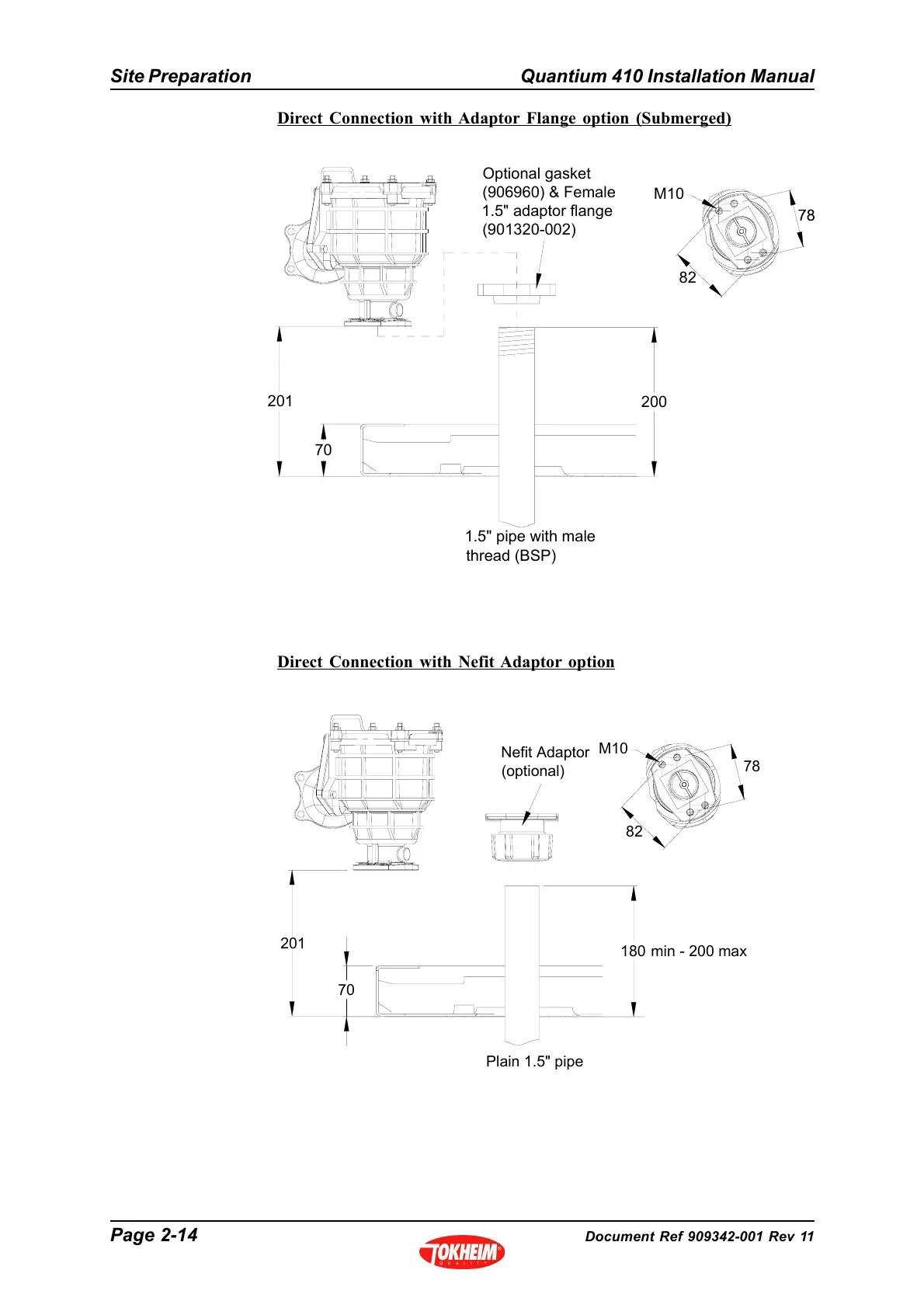

Direct Connection with Nefit Adaptor option
Direct Connection with Adaptor Flange option (Submerged)
