Tokheim QUANTIUM 410 - Multi Product with High Speed Diesel Models

Page 2-8 Document Ref 909342-001 Rev 11
Site Preparation Quantium 410 Installation Manual
Model HS 3-6
A side (right)
B side (left)
PAS
40
Prod 1
EPZ
80
Prod 3
Diesel
Prod 1
40
Diesel
Prod 3
80
Prod 2
40
40
Prod 2
EPZ
: Option exists to interchange products 1 & 2 (“High speed in first coloumn”)
Model HS 1-2

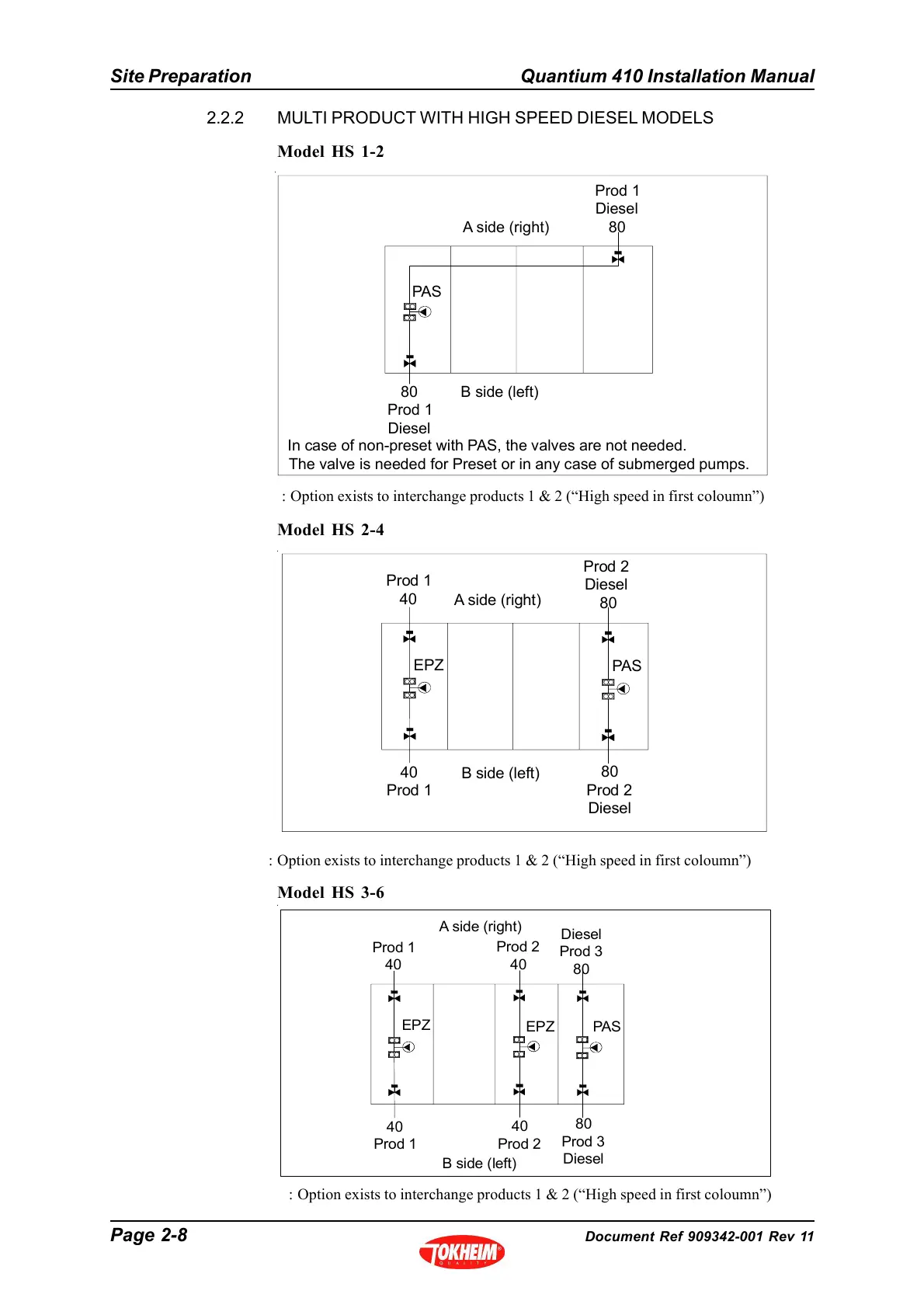

2.2.2 MULTI PRODUCT WITH HIGH SPEED DIESEL MODELS
Model HS 2-4
Prod 1
Diesel
80
A side (right)
B side (left)
80
Prod 1
Diesel
In case of non-preset with PAS, the valves are not needed.
The valve is needed for Preset or in any case of submerged pumps.
PAS
: Option exists to interchange products 1 & 2 (“High speed in first coloumn”)
: Option exists to interchange products 1 & 2 (“High speed in first coloumn”)
80
Prod 2
Diesel
40
Prod 1
B side (left)
A side (right)
Prod 2
Diesel
80
Prod 1
40
PAS
EPZ
