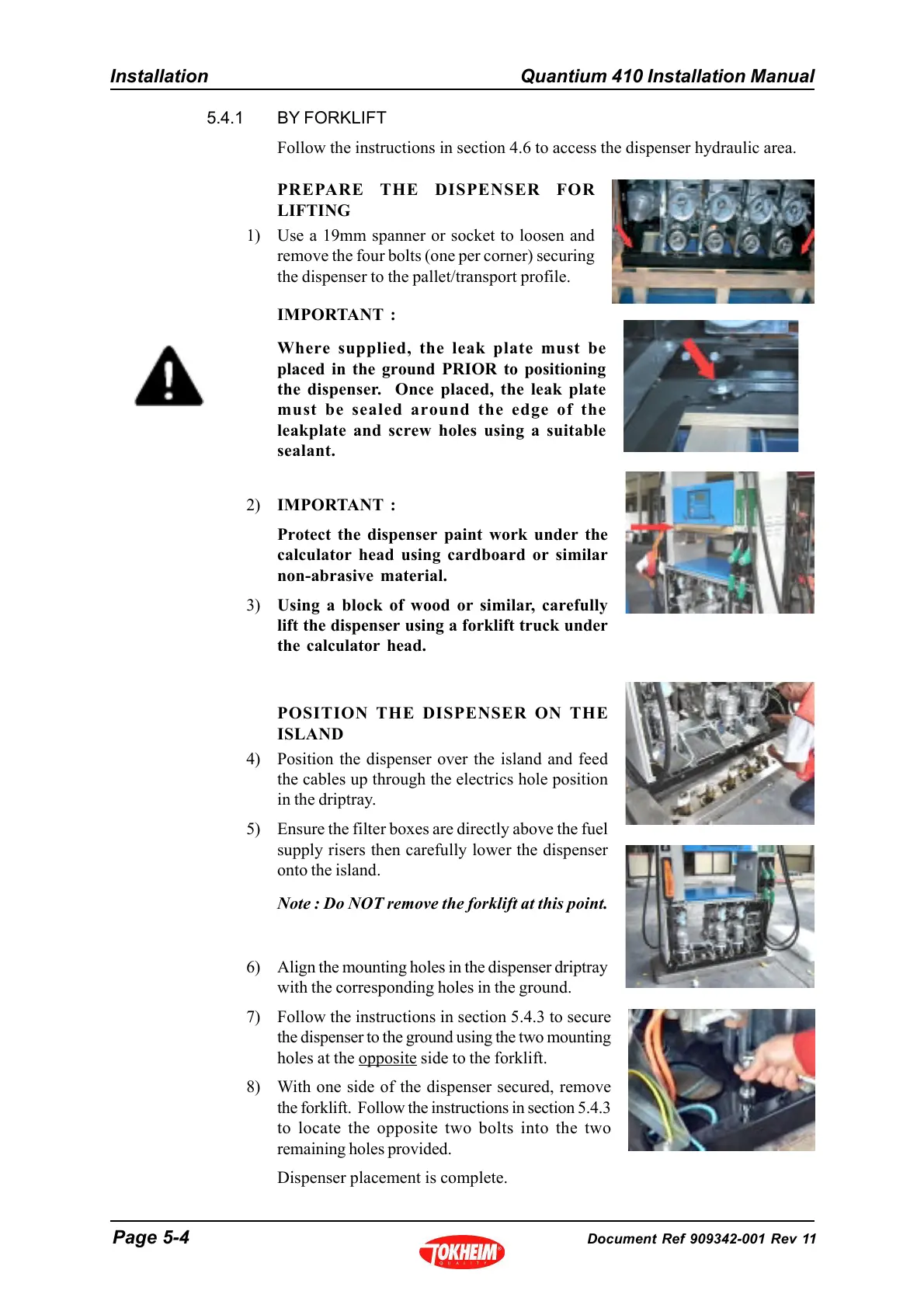

5.4.1 BY FORKLIFT
Follow the instructions in section 4.6 to access the dispenser hydraulic area.
PREPARE THE DISPENSER FOR
LIFTING
1) Use a 19mm spanner or socket to loosen and
remove the four bolts (one per corner) securing
the dispenser to the pallet/transport profile.
IMPORTANT :
Where supplied, the leak plate must be
placed in the ground PRIOR to positioning
the dispenser. Once placed, the leak plate
must be sealed around the edge of the
leakplate and screw holes using a suitable
sealant.
2) IMPORTANT :
Protect the dispenser paint work under the
calculator head using cardboard or similar
non-abrasive material.
3) Using a block of wood or similar, carefully
lift the dispenser using a forklift truck under
the calculator head.
POSITION THE DISPENSER ON THE
ISLAND
4) Position the dispenser over the island and feed
the cables up through the electrics hole position
in the driptray.
5) Ensure the filter boxes are directly above the fuel
supply risers then carefully lower the dispenser
onto the island.
Note : Do NOT remove the forklift at this point.
6) Align the mounting holes in the dispenser driptray
with the corresponding holes in the ground.
7) Follow the instructions in section 5.4.3 to secure
the dispenser to the ground using the two mounting
holes at the
opposite side to the forklift.
8) With one side of the dispenser secured, remove
the forklift. Follow the instructions in section 5.4.3
to locate the opposite two bolts into the two
remaining holes provided.
Dispenser placement is complete.
