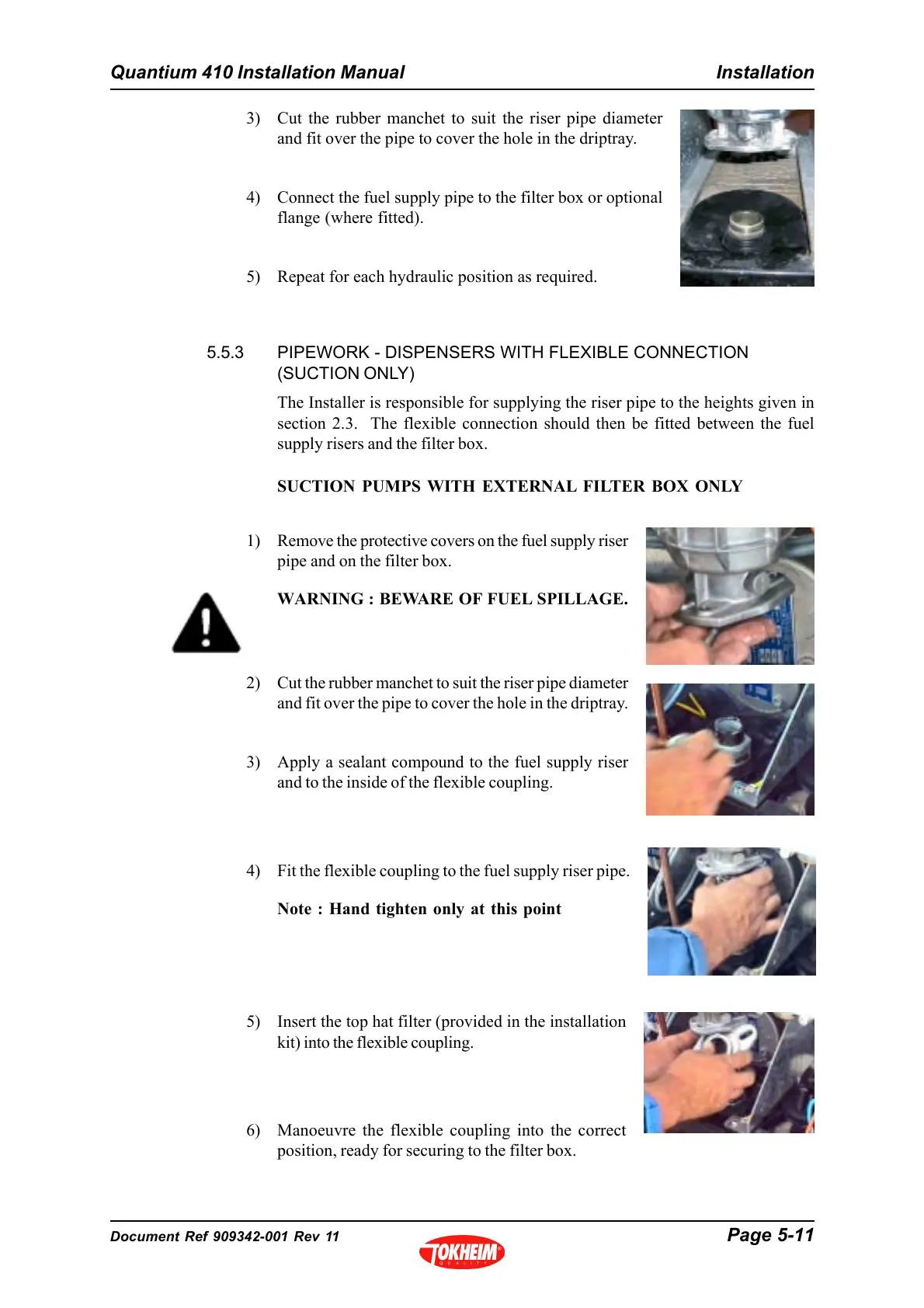

Document Ref 909342-001 Rev 11 Page 5-11
Quantium 410 Installation Manual Installation
3) Cut the rubber manchet to suit the riser pipe diameter
and fit over the pipe to cover the hole in the driptray.
4) Connect the fuel supply pipe to the filter box or optional
flange (where fitted).
5) Repeat for each hydraulic position as required.
5.5.3 PIPEWORK - DISPENSERS WITH FLEXIBLE CONNECTION
(SUCTION ONLY)
The Installer is responsible for supplying the riser pipe to the heights given in
section 2.3. The flexible connection should then be fitted between the fuel
supply risers and the filter box.
SUCTION PUMPS WITH EXTERNAL FILTER BOX ONLY
1) Remove the protective covers on the fuel supply riser
pipe and on the filter box.
WARNING : BEWARE OF FUEL SPILLAGE.
2) Cut the rubber manchet to suit the riser pipe diameter
and fit over the pipe to cover the hole in the driptray.
3) Apply a sealant compound to the fuel supply riser
and to the inside of the flexible coupling.
4) Fit the flexible coupling to the fuel supply riser pipe.
Note : Hand tighten only at this point
5) Insert the top hat filter (provided in the installation
kit) into the flexible coupling.
6) Manoeuvre the flexible coupling into the correct
position, ready for securing to the filter box.
