Tokheim QUANTIUM 410 - Multi Product with very High Speed Diesel Models

Document Ref 909342-001 Rev 11 Page 2-9

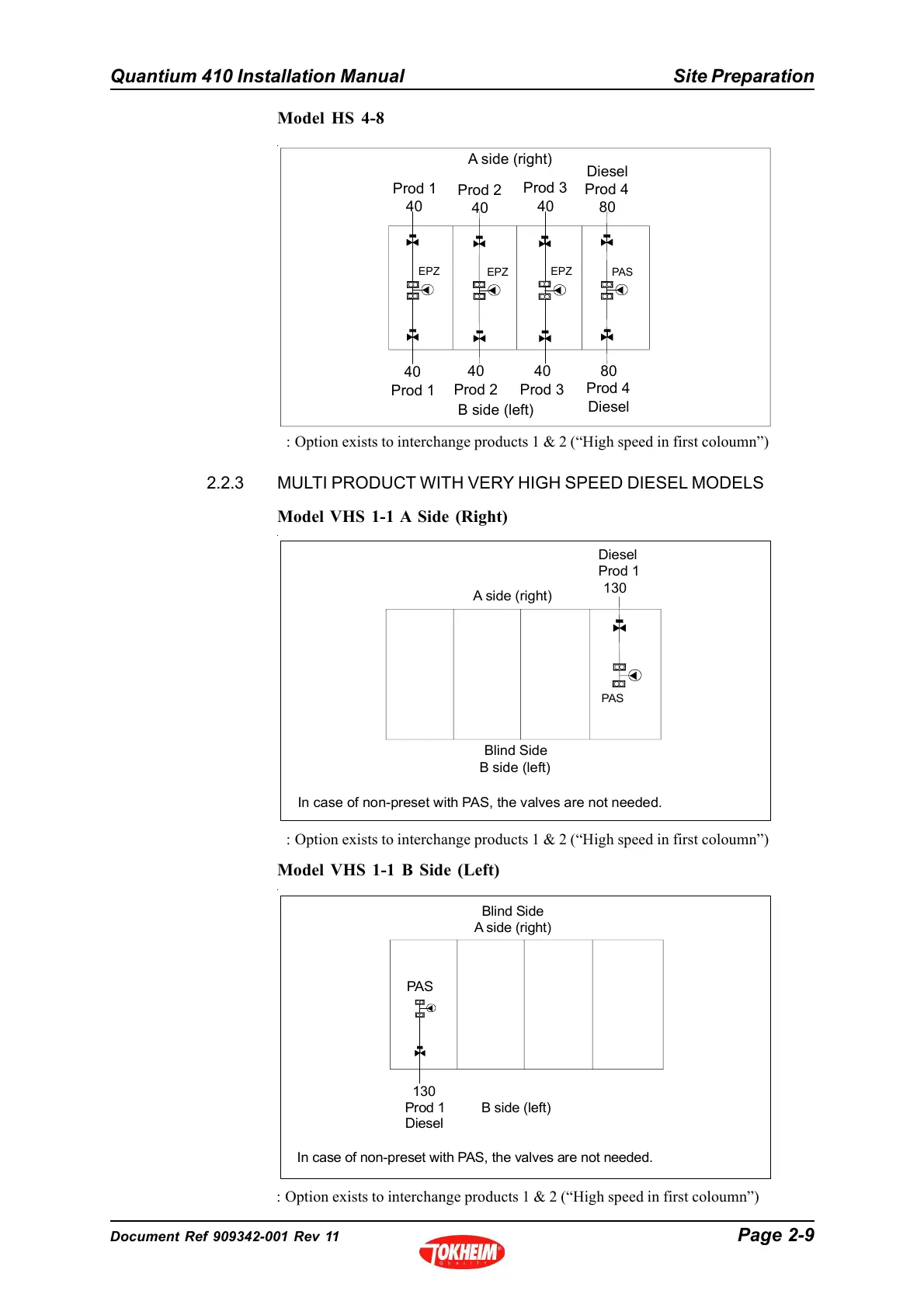

Quantium 410 Installation Manual Site Preparation
2.2.3 MULTI PRODUCT WITH VERY HIGH SPEED DIESEL MODELS
Model VHS 1-1 A Side (Right)
Model HS 4-8
Model VHS 1-1 B Side (Left)
A side (right)
B side (left)
40
Prod 1
40
Prod 2
40
Prod 3
80
Prod 4
Diesel
Prod 1
40
Prod 2
40
Prod 3
40
Diesel
Prod 4
80
EPZ
EPZ
EPZ
PAS
: Option exists to interchange products 1 & 2 (“High speed in first coloumn”)
In case of non-preset with PAS, the valves are not needed.
Blind Side
A side (right)
B side (left)
130
Prod 1
Diesel
PAS
: Option exists to interchange products 1 & 2 (“High speed in first coloumn”)
Blind Side
B side (left)
A side (right)
Diesel
Prod 1
130
PAS
In case of non-preset with PAS, the valves are not needed.
: Option exists to interchange products 1 & 2 (“High speed in first coloumn”)
