Tokheim QUANTIUM 410 - Outdoor Payment Terminals and Vidium Power

Document Ref 909342-001 Rev 11 Page 5-29
Quantium 410 Installation Manual Installation

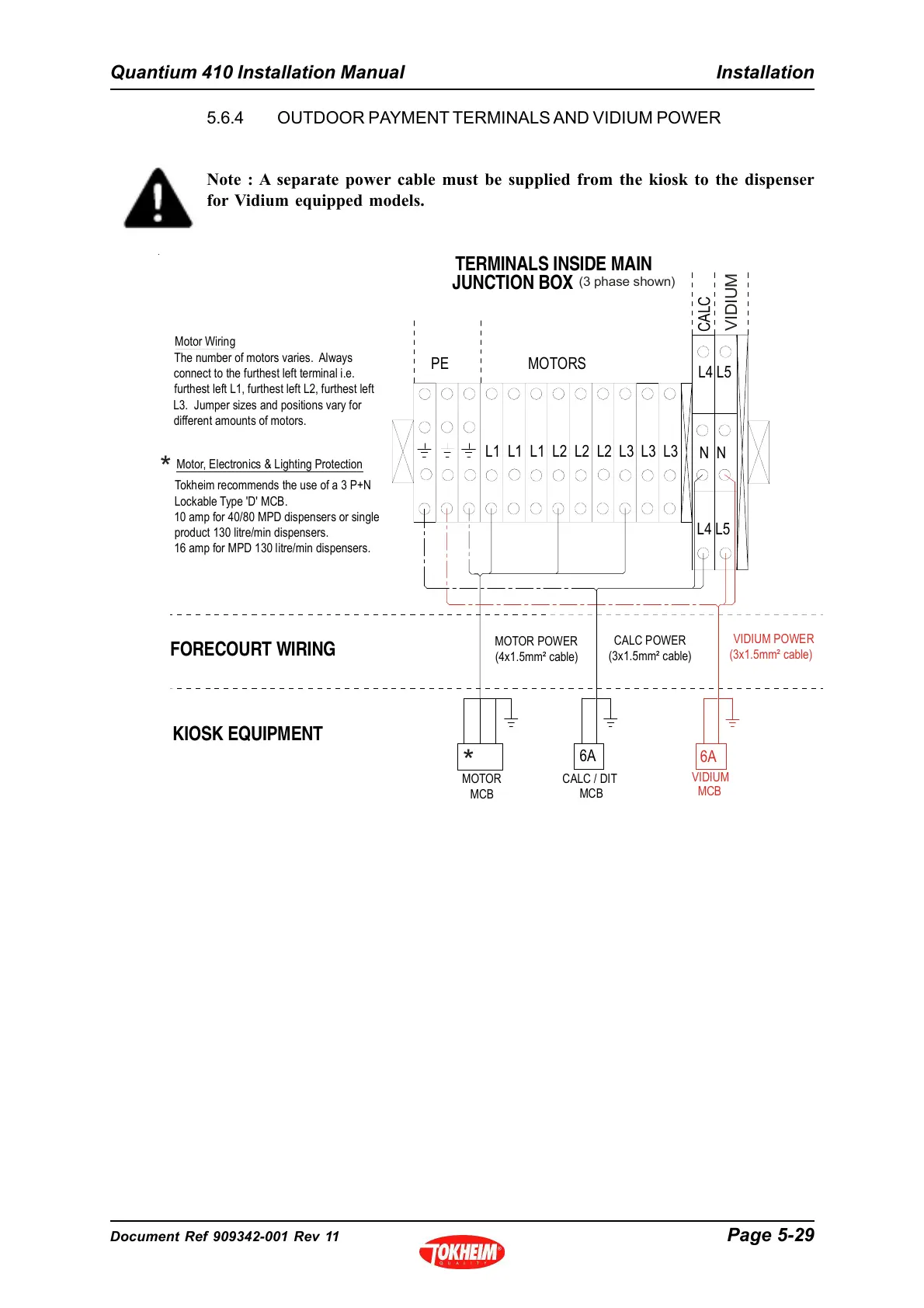

5.6.4 OUTDOOR PAYMENT TERMINALS AND VIDIUM POWER
Note : A separate power cable must be supplied from the kiosk to the dispenser
for Vidium equipped models.
MOTOR
MCB
MOTOR POWER
(4x1.5mm² cable)
Tokheim recommends the use of a 3 P+N
Lockable Type 'D' MCB.
10 amp for 40/80 MPD dispensers or single
product 130 litre/min dispensers.
16 amp for MPD 130 litre/min dispensers.
Motor, Electronics & Lighting Protection
6A
CALC / DIT
MCB
CALC POWER
(3x1.5mm² cable)
6A
VIDIUM
MCB
VIDIUM POWER
(3x1.5mm² cable)
The number of motors varies. Always
connect to the furthest left terminal i.e.
furthest left L1, furthest left L2, furthest left
L3. Jumper sizes and positions vary for
different amounts of motors.
Motor Wiring
MOTORS
CALC
N N
TERMINALS INSIDE MAIN
JUNCTION BOX
FORECOURT WIRING
KIOSK EQUIPMENT
L4 L5
L1 L1 L1 L2 L2 L2 L3 L3 L3
PE
L4 L5
VIDIUM
*
*
(3 phase shown)
