Page 5-30 Document Ref 909342-001 Rev 11
Installation Quantium 410 Installation Manual

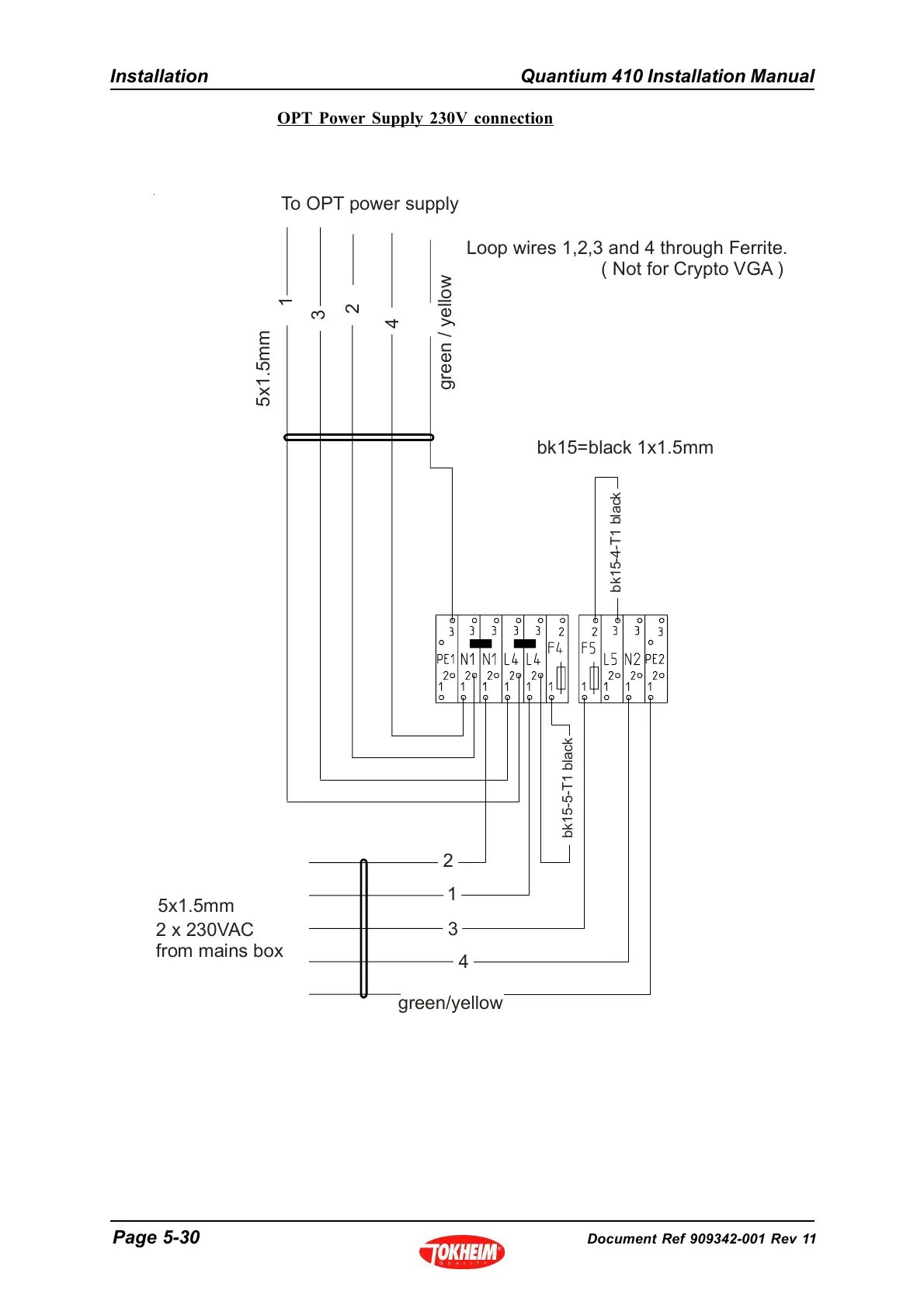

OPT Power Supply 230V connection
To OPT power supply
1
2
3
4
green / yellow
5x1.5mm
Loop wires 1,2,3 and 4 through Ferrite.
( Not for Crypto VGA )
bk15=black 1x1.5mm
bk15-5-T1 black
bk15-4-T1 black
2
1
3
4
green/yellow
5x1.5mm
2 x 230VAC
from mains box
