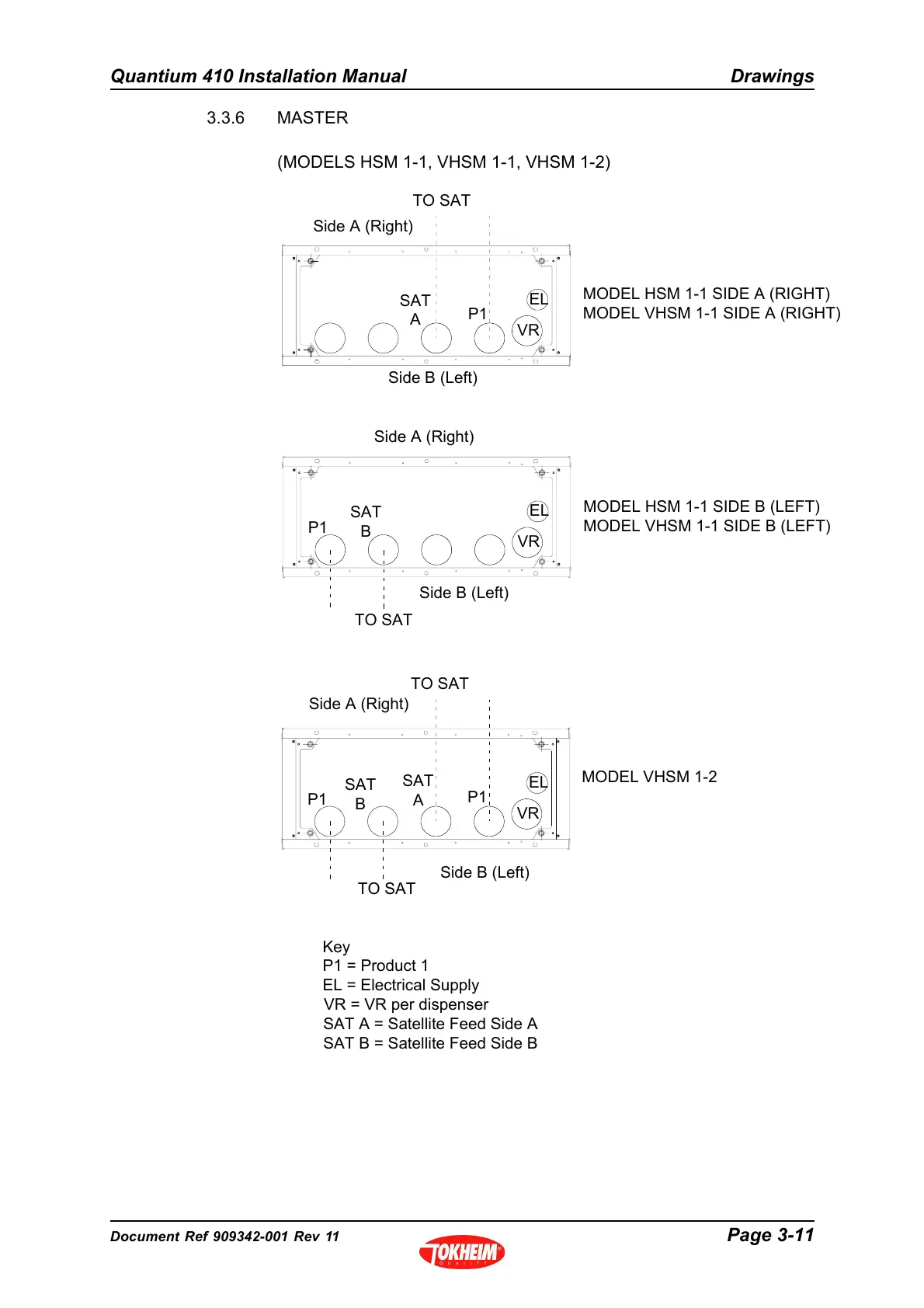

Quantium 410 Installation Manual Drawings
3.3.6 MASTER
(MODELS HSM 1-1, VHSM 1-1, VHSM 1-2)
Key
P1 = Product 1
EL = Electrical Supply
VR = VR per dispenser
SAT A = Satellite Feed Side A
SAT B = Satellite Feed Side B
MODEL VHSM 1-2
MODEL HSM 1-1 SIDE B (LEFT)
MODEL VHSM 1-1 SIDE B (LEFT)
MODEL HSM 1-1 SIDE A (RIGHT)
MODEL VHSM 1-1 SIDE A (RIGHT)
Side A (Right)
Side B (Left)
SAT
A
VR
P1
EL
Side A (Right)
Side B (Left)
P1
SAT
B
VR
EL
Side A (Right)
Side B (Left)
SAT
A
P1
SAT
B
VR
P1
EL
TO SAT
TO SAT
TO SAT
TO SAT
