Tokheim QUANTIUM 410 - Satellite

Page 3-12 Document Ref 909342-001 Rev 11

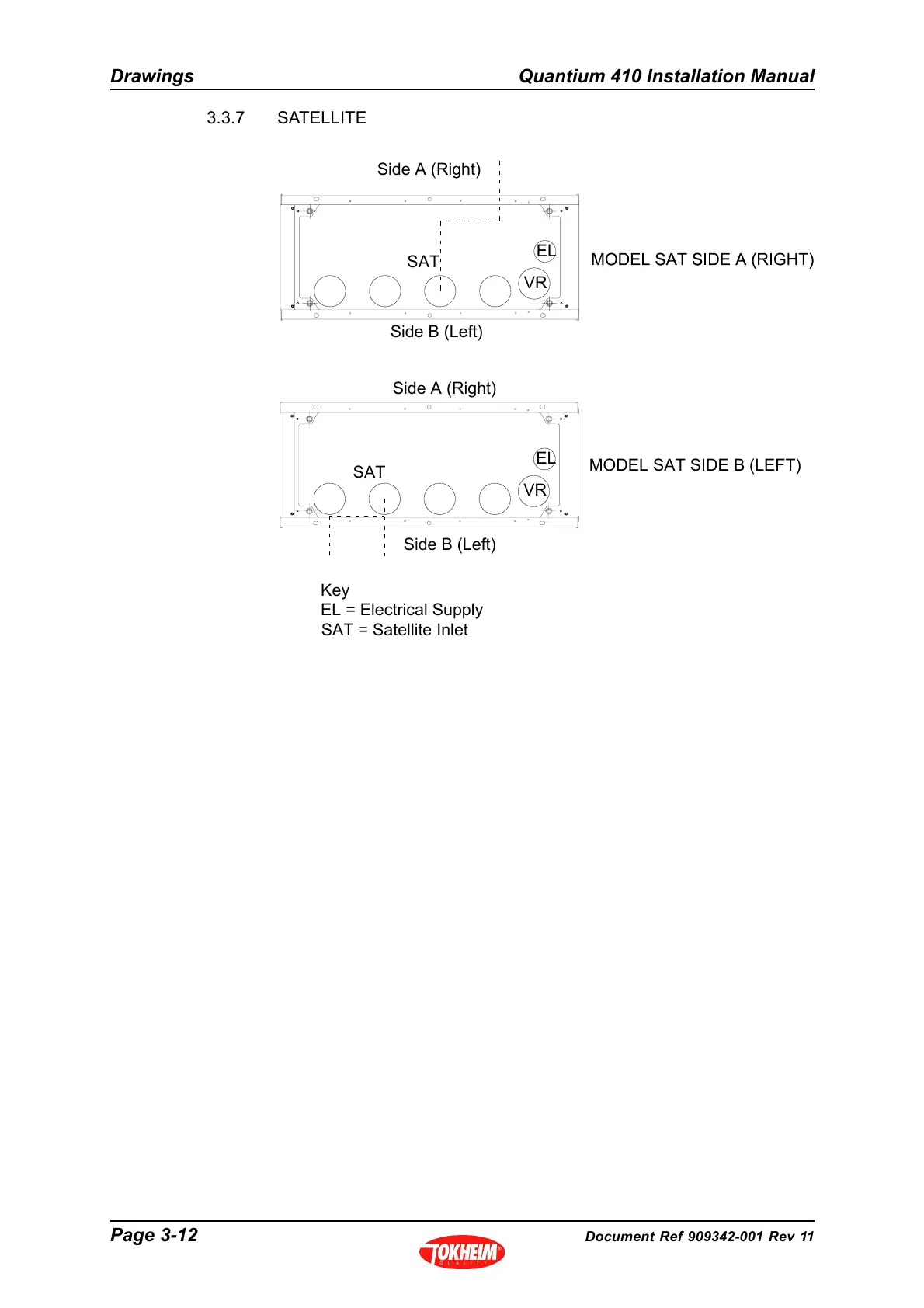

Drawings Quantium 410 Installation Manual
EL
Side A (Right)
SAT
VR
Side B (Left)
EL
Side A (Right)
SAT
VR
Side B (Left)
Key
EL = Electrical Supply
SAT = Satellite Inlet
MODEL SAT SIDE B (LEFT)
3.3.7 SATELLITE
