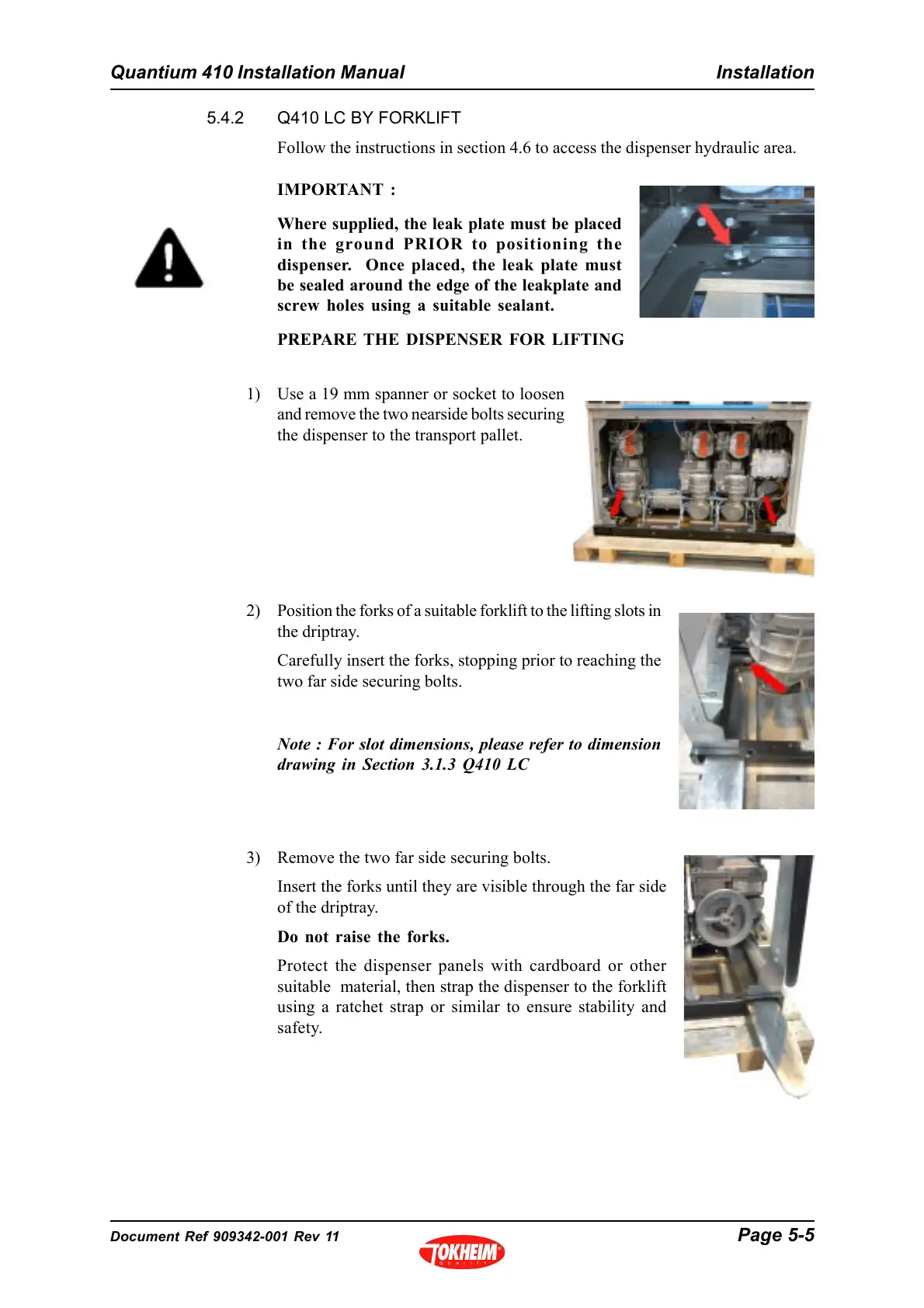

Document Ref 909342-001 Rev 11 Page 5-5
Quantium 410 Installation Manual Installation
5.4.2 Q410 LC BY FORKLIFT
Follow the instructions in section 4.6 to access the dispenser hydraulic area.
IMPORTANT :
Where supplied, the leak plate must be placed
in the ground PRIOR to positioning the
dispenser. Once placed, the leak plate must
be sealed around the edge of the leakplate and
screw holes using a suitable sealant.
PREPARE THE DISPENSER FOR LIFTING
1) Use a 19 mm spanner or socket to loosen
and remove the two nearside bolts securing
the dispenser to the transport pallet.
2) Position the forks of a suitable forklift to the lifting slots in
the driptray.
Carefully insert the forks, stopping prior to reaching the
two far side securing bolts.
Note : For slot dimensions, please refer to dimension
drawing in Section 3.1.3 Q410 LC
3) Remove the two far side securing bolts.
Insert the forks until they are visible through the far side
of the driptray.
Do not raise the forks.
Protect the dispenser panels with cardboard or other
suitable material, then strap the dispenser to the forklift
using a ratchet strap or similar to ensure stability and
safety.
