Tokheim QUANTIUM 410 - Single Product

Document Ref 909342-001 Rev 11 Page 3-7

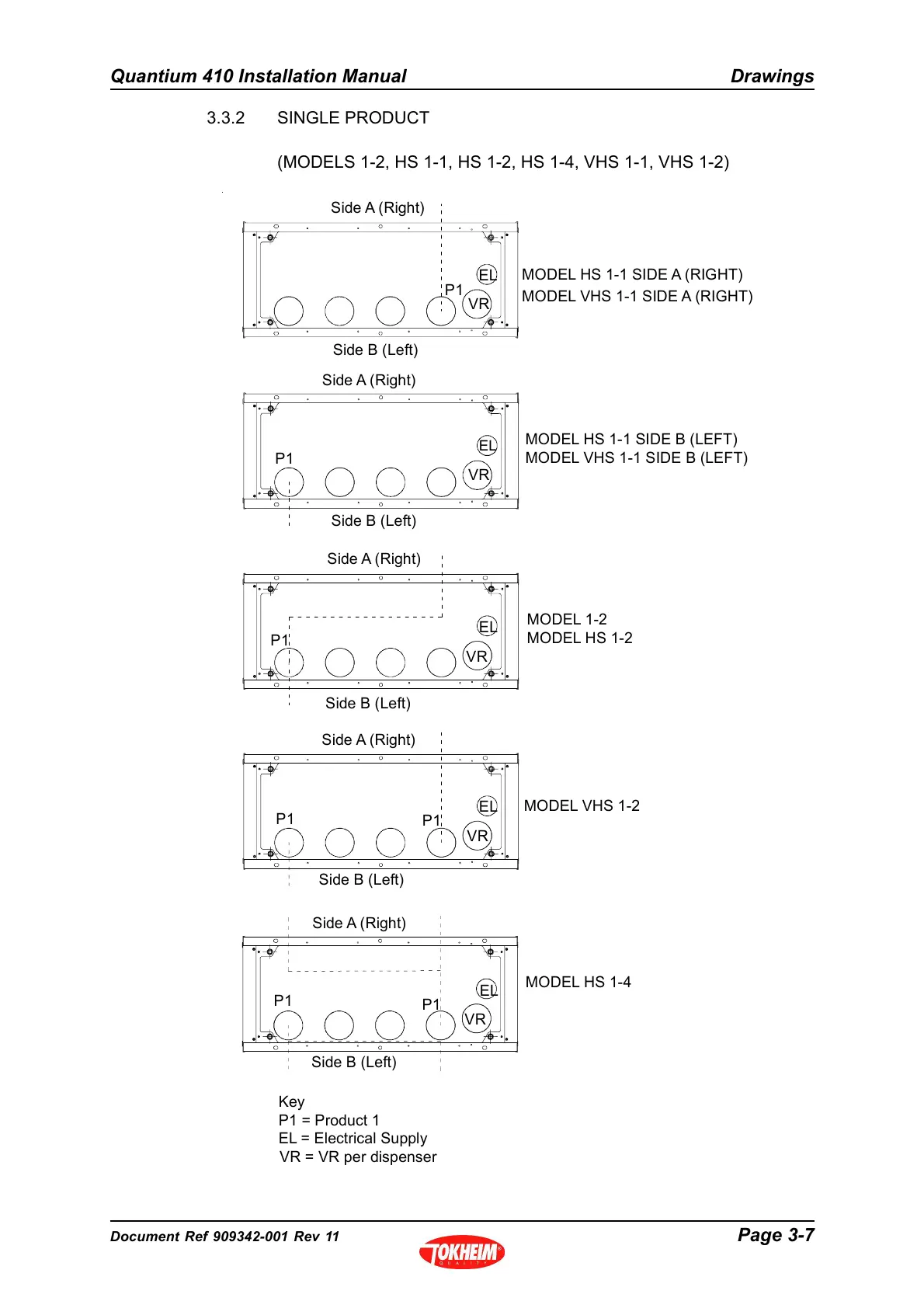

Quantium 410 Installation Manual Drawings
3.3.2 SINGLE PRODUCT
(MODELS 1-2, HS 1-1, HS 1-2, HS 1-4, VHS 1-1, VHS 1-2)
Key
P1 = Product 1
EL = Electrical Supply
VR = VR per dispenser
MODEL HS 1-4
MODEL VHS 1-2
MODEL 1-2
MODEL HS 1-2
Side B (Left)
Side A (Right)
P1
VR
EL
P1
VR
Side B (Left)
Side A (Right)
EL
MODEL HS 1-1 SIDE A (RIGHT)
MODEL VHS 1-1 SIDE A (RIGHT)
MODEL HS 1-1 SIDE B (LEFT)
MODEL VHS 1-1 SIDE B (LEFT)
Side A (Right)
Side B (Left)
P1
VR
EL
Side A (Right)
Side B (Left)
P1
P1
VR
EL
Side A (Right)
Side B (Left)
P1
P1
VR
EL
