Page 3-6 Document Ref 909342-001 Rev 11
Drawings Quantium 410 Installation Manual
118
141.5
186.5
350
581
812
SAT A
or P3
SAT B
or P2
P1
P4
Side A (Right)
150
285
EL
Base
1250
All dimensions
given from extent
of driptray
1004
520
386
Mounting
Holes (x4)
67
1043
Side B (Left)
VR
123

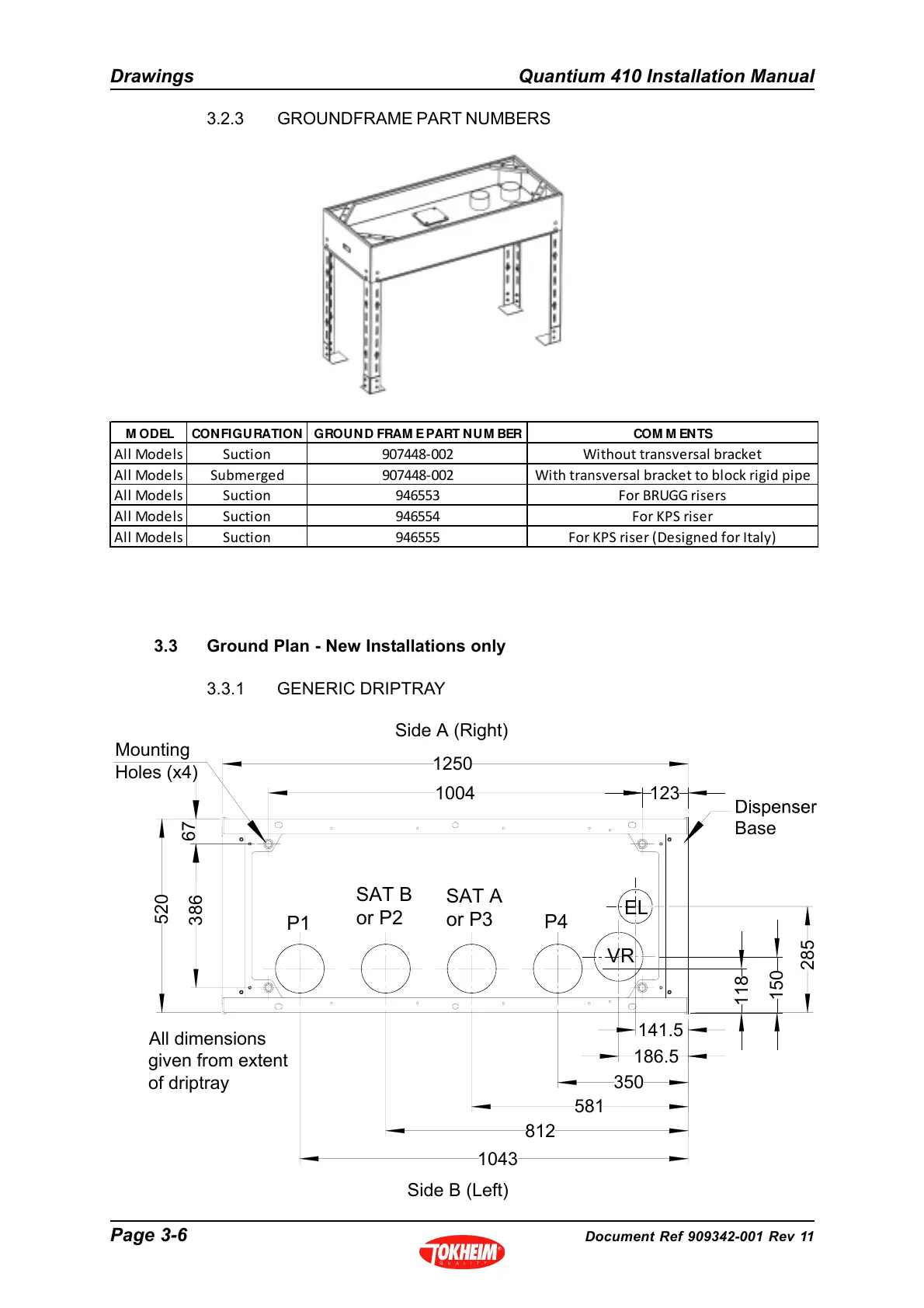

3.3 Ground Plan - New Installations only
3.3.1 GENERIC DRIPTRAY
3.2.3 GROUNDFRAME PART NUMBERS
M ODEL CON FIGU RATION GROU N D FRAM E PART N U M BER COM M ENTS
All Models Suction 907448-002 Without transversal bracket
All Models Submerged 907448-002 With transversal bracket to block rigid pipe
All Models Suction 946553 For BRUGG risers
All Models Suction 946554 For KPS riser
All Models Suction 946555 For KPS riser (Designed for Italy)
