Document Ref 909342-001 Rev 11 Page 2-19
Quantium 410 Installation Manual Site Preparation

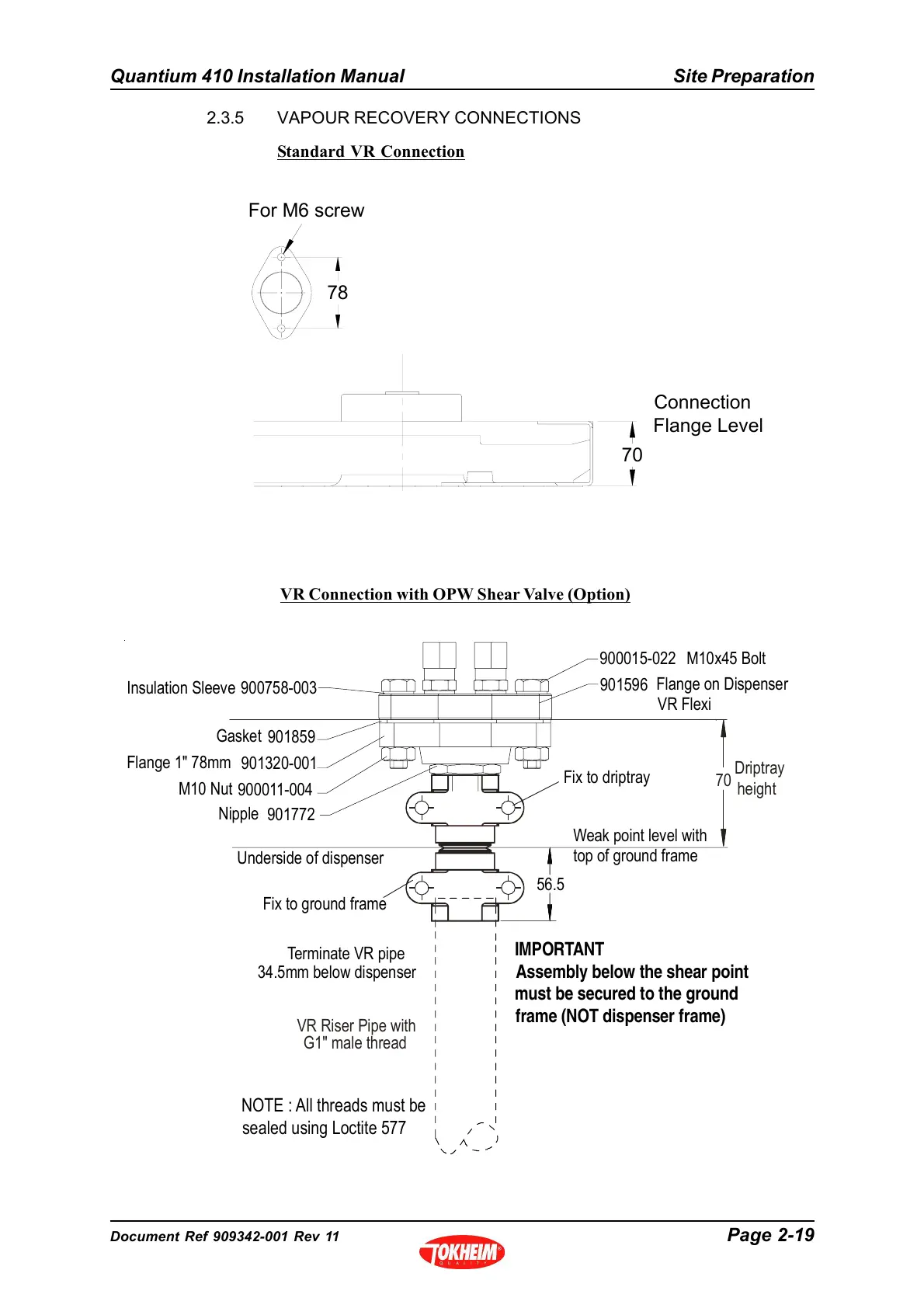

2.3.5 VAPOUR RECOVERY CONNECTIONS
Standard VR Connection
For M6 screw
Connection
Flange Level
70
78
VR Connection with OPW Shear Valve (Option)
M10x45 Bolt
Flange on Dispenser
VR Flexi
900015-022
901596
900758-003Insulation Sleeve
901320-001
900011-004
901772
901859
Flange 1" 78mm
M10 Nut
Nipple
Gasket
Underside of dispenser
Driptray
height
70
Terminate VR pipe
34.5mm below dispenser
Fix to driptray
Fix to ground frame
IMPORTANT
Assembl
below the shear point
must be secured to the ground
frame (NOT dispenser frame)
56.5
NOTE : All threads must be
sealed using Loctite 577
Weak point level with
top of ground frame
VR Riser Pipe with
male threadG1"
To Next Page
