Tokheim QUANTIUM 410 - Groundframes; Retrofit Groundframe; Direct Connection Groundframe

Document Ref 909342-001 Rev 11 Page 3-5
Quantium 410 Installation Manual Drawings

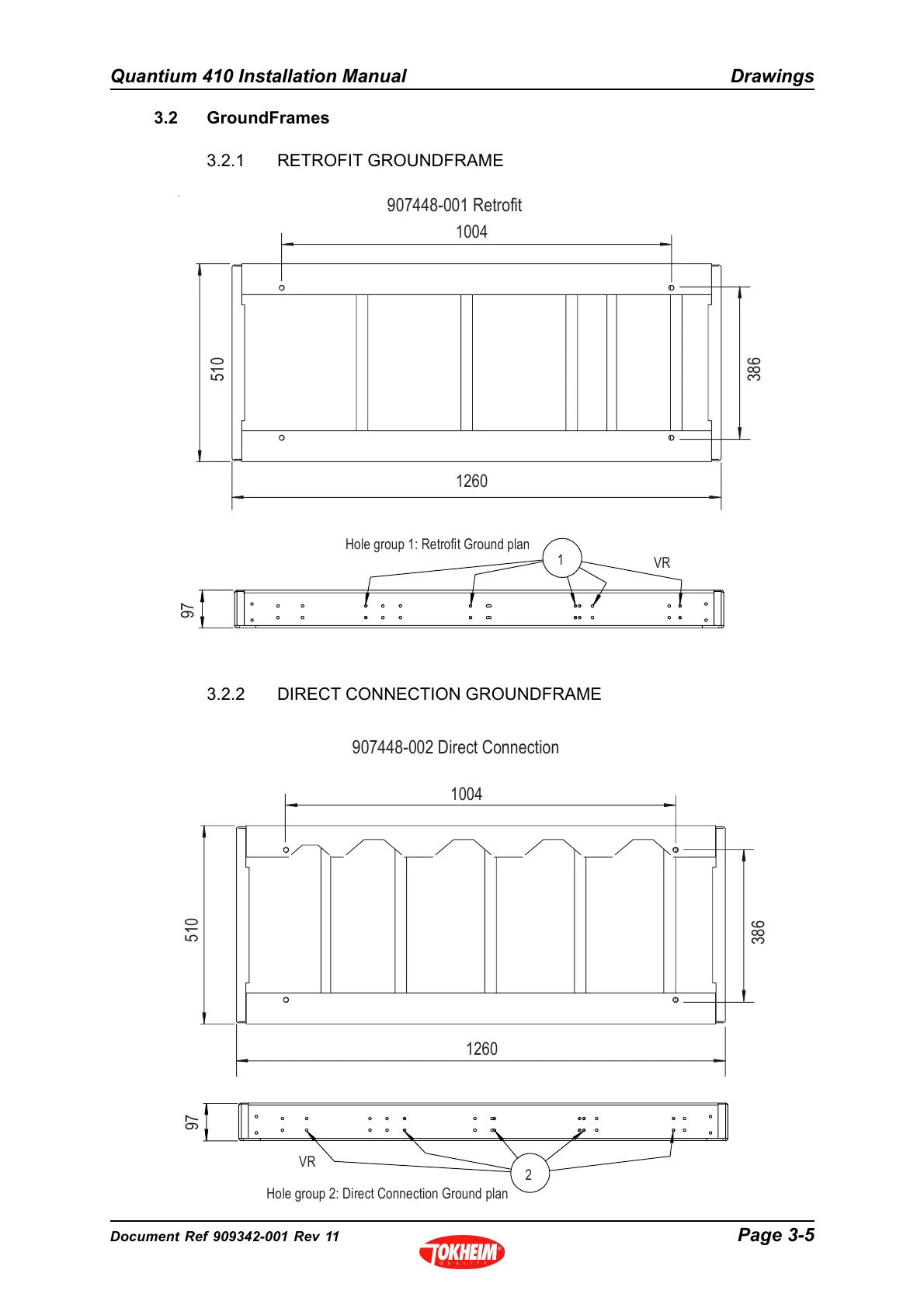

3.2 GroundFrames
3.2.1 RETROFIT GROUNDFRAME
3.2.2 DIRECT CONNECTION GROUNDFRAME
510 386
386
510
1260
1004
1004
1260
97
97
1
2
VR
VR
907448-001 Retrofit
907448-002 Direct Connection
Hole group 1: Retrofit Ground plan
Hole group 2: Direct Connection Ground plan
