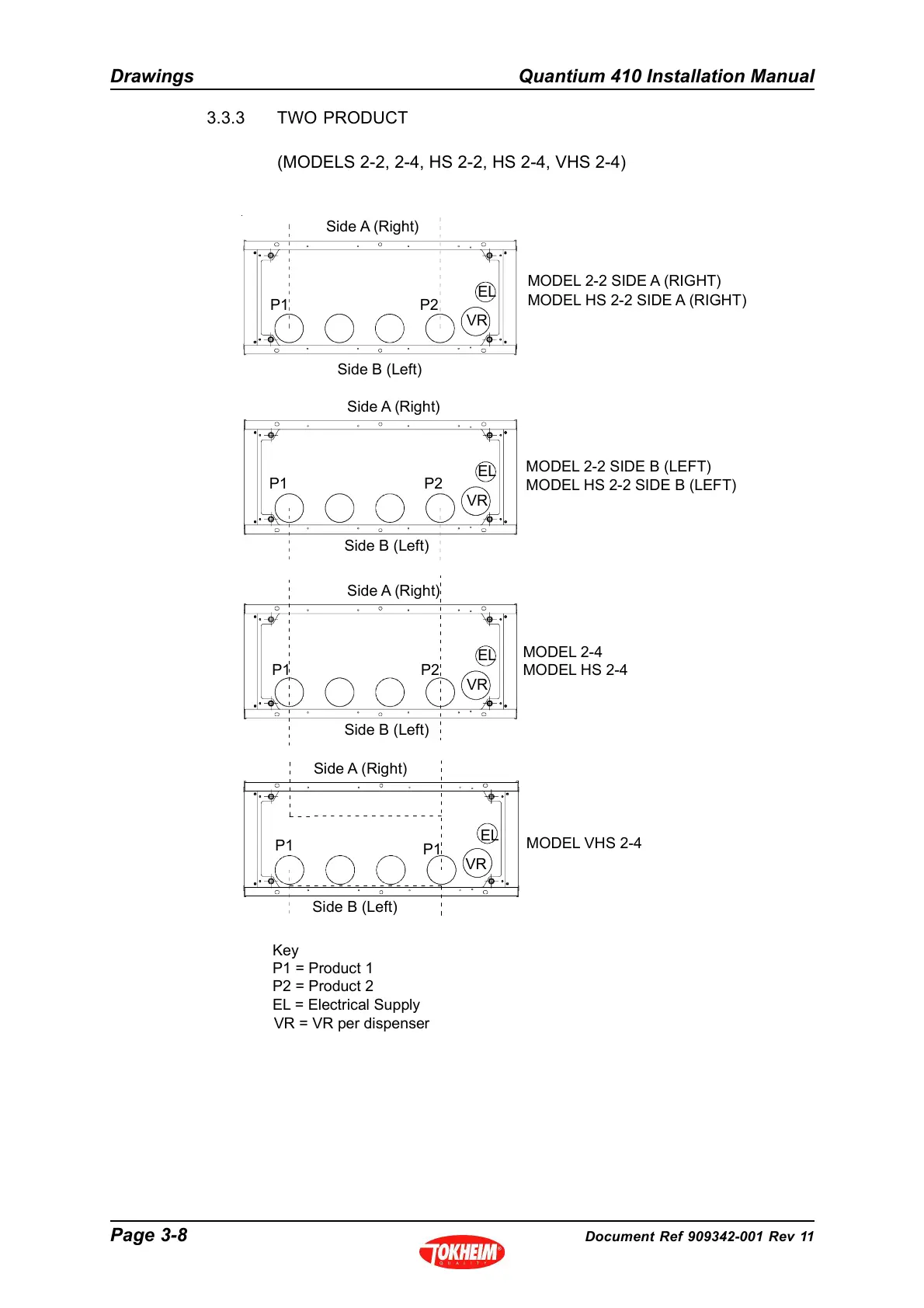

3.3.3 TWO PRODUCT
(MODELS 2-2, 2-4, HS 2-2, HS 2-4, VHS 2-4)
MODEL 2-4
MODEL HS 2-4
MODEL 2-2 SIDE B (LEFT)
MODEL HS 2-2 SIDE B (LEFT)
MODEL 2-2 SIDE A (RIGHT)
MODEL HS 2-2 SIDE A (RIGHT)
Side B (Left)
Side A (Right)
P1
VR
P2
EL
Side B (Left)
Side A (Right)
P1
VR
P2
EL
Side B (Left)
Side A (Right)
P1
VR
P2
EL
Key
P1 = Product 1
P2 = Product 2
EL = Electrical Supply
VR = VR per dispenser
MODEL VHS 2-4
Side A (Right)
Side B (Left)
P1
P1
VR
EL
