Page 2-18 Document Ref 909342-001 Rev 11
Site Preparation Quantium 410 Installation Manual

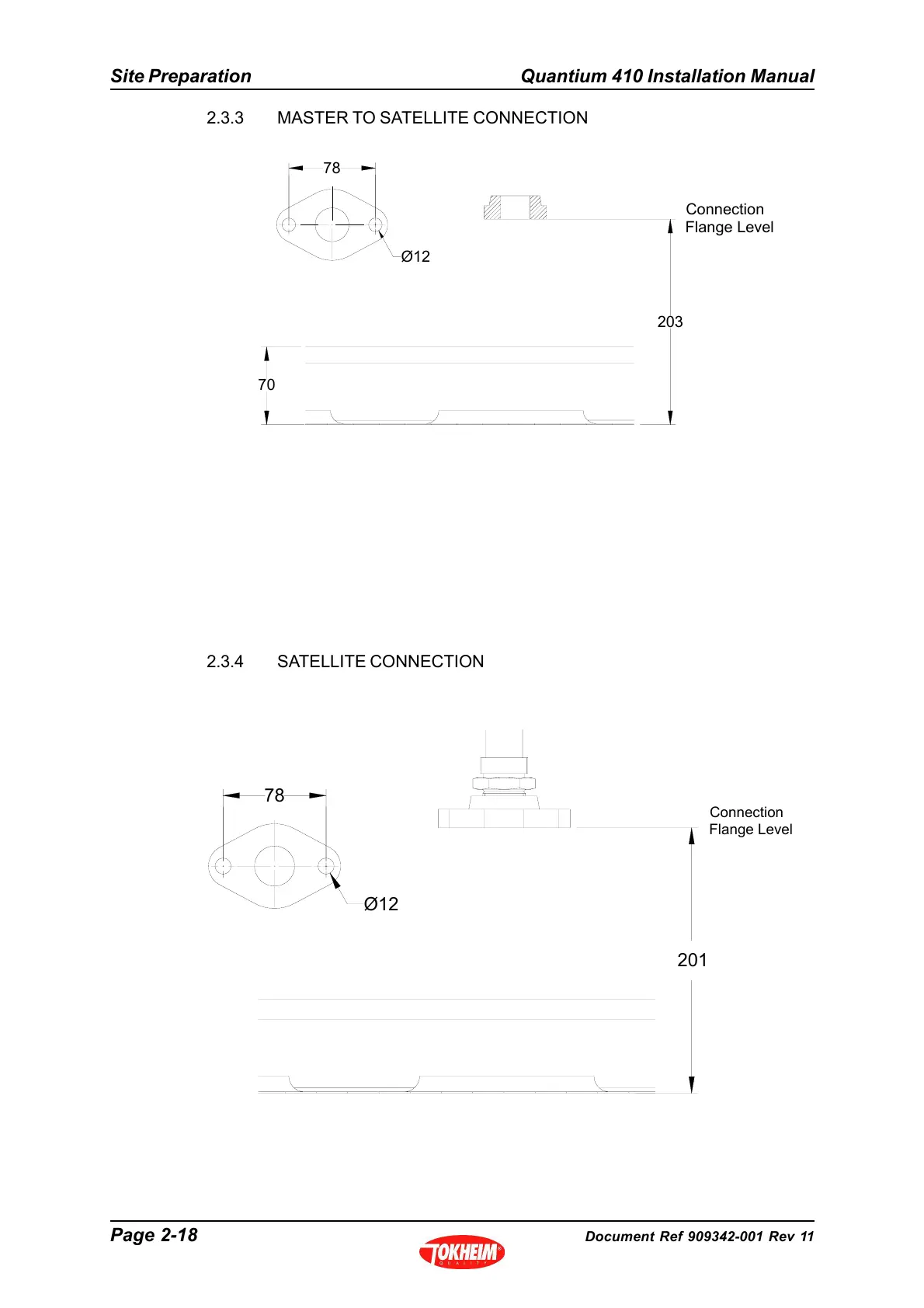

2.3.4 SATELLITE CONNECTION
Ø12
78
Connection
Flange Level
201
2.3.3 MASTER TO SATELLITE CONNECTION
Connection
Flange Level
78
70
Ø12
203
